Product Features

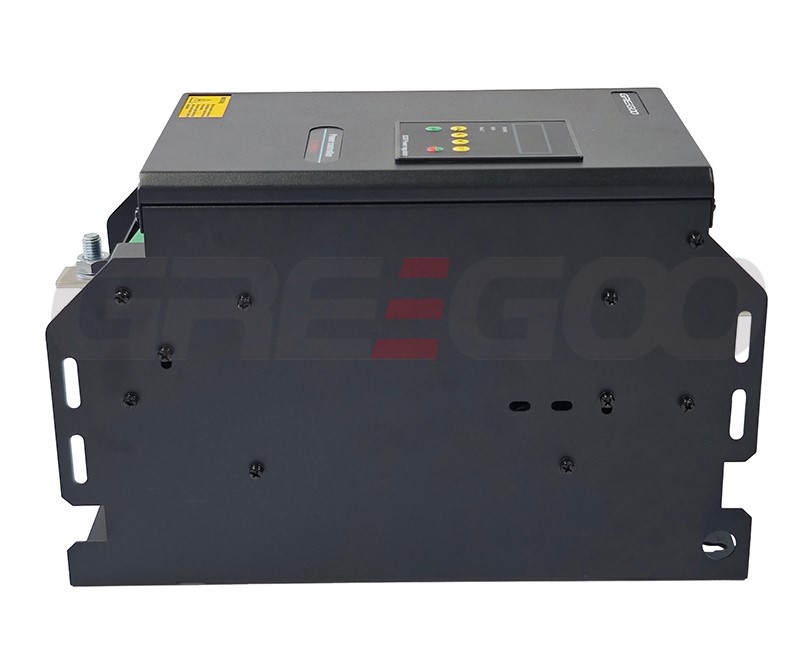

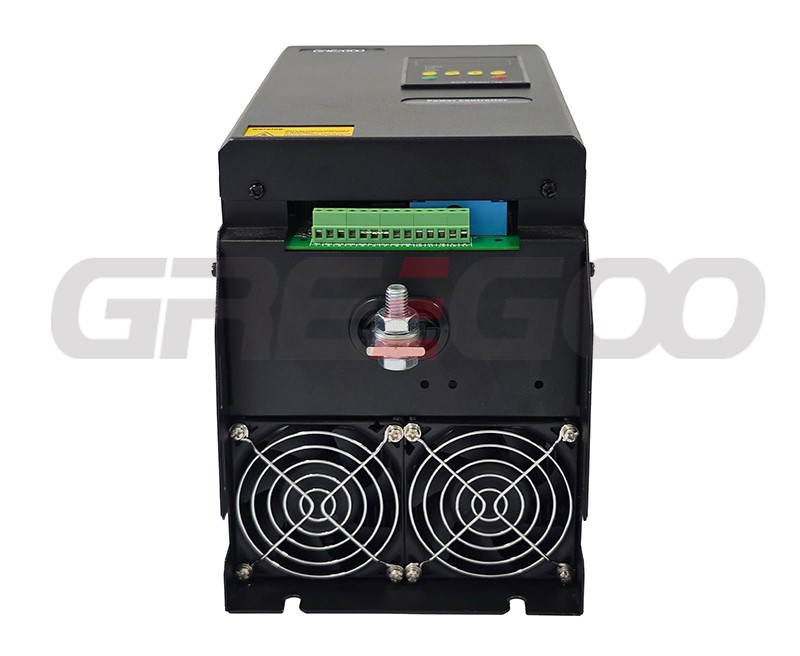

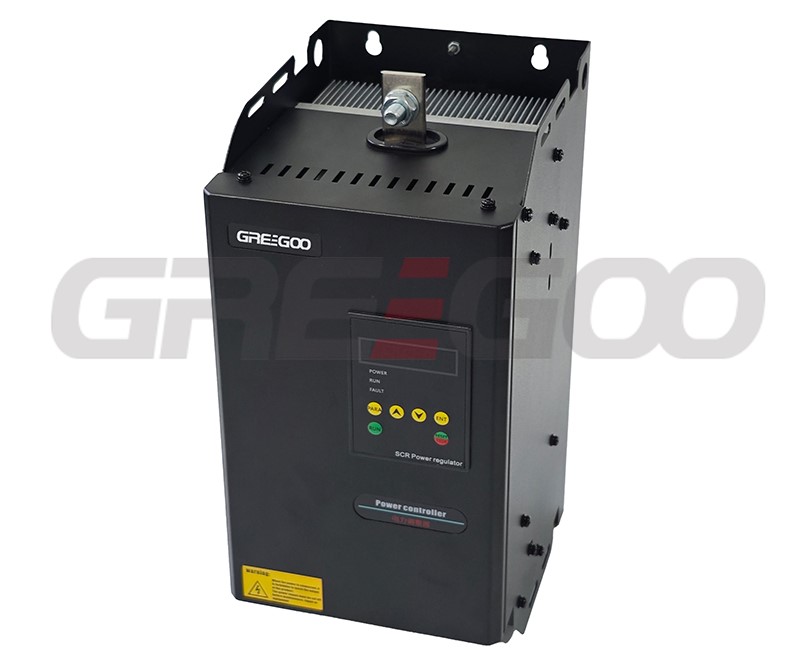

Single phase digital scr controller 225A to 400A

◎ Adopts dual-core MCU microcontroller control technology with built-in PID closed-loop control for 100% linear output.

◎ Single-row digital display with customizable display of five parameters: input, output, voltage, current, and power.

◎ Dual-channel signal input design, compatible with both current and voltage signal inputs.

◎ Multiple control modes: constant voltage, constant current, constant power, open-loop, and zero-position control.

◎ Multiple protection functions: phase loss, overcurrent, overtemperature, and wire-break protection.

◎ Suitable for various load applications, with MODBUS RTU communication enabling direct output control via a host computer.

Specification

Model	Phase	Input Voltage	Rated current	Load Power (KW)		Weight (KG)	Control mode	Control signal
				220V	380V
HGW6-1-4-225-P	1Ph	330-440V	225	39	65	12	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-250-P	1Ph	330-440V	250	42	70	14	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-300-P	1Ph	330-440V	300	52	86	16	Phase angle (constant voltage limiting current)	4-20mA/0-5V

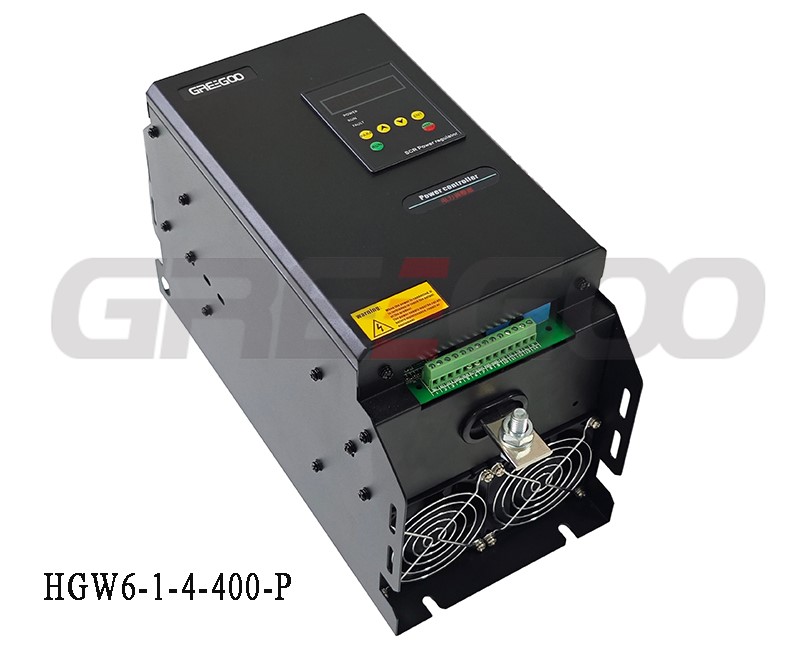

HGW6-1-4-400-P	1Ph	330-440V	400	70	120	20	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-4-225-C	1Ph	330-440V	225	39	65	12	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-250-C	1Ph	330-440V	250	42	70	14	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-300-C	1Ph	330-440V	300	52	86	16	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-400-C	1Ph	330-440V	400	70	120	20	Phase angle constant current	4-20mA/0-5V
HGW6-1-4-225-CV	1Ph	330-440V	225	39	65	12	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-250-CV	1Ph	330-440V	250	42	70	14	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-300-CV	1Ph	330-440V	300	52	86	16	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-400-CV	1Ph	330-440V	400	70	120	20	Phase angle constant power	4-20mA/0-5V
HGW6-1-4-225-Z	1Ph	330-440V	225	39	65	12	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-250-Z	1Ph	330-440V	250	42	70	14	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-300-Z	1Ph	330-440V	300	52	86	16	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-4-400-Z	1Ph	330-440V	400	70	120	20	Zero crossing cycle power regulating	4-20mA/0-5V

HGW6-1-2-225-P	1Ph	110-220V	225	39	65	12	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-250-P	1Ph	110-220V	250	42	70	14	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-300-P	1Ph	110-220V	300	52	86	16	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-400-P	1Ph	110-220V	400	70	120	20	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-1-2-225-C	1Ph	110-220V	225	39	65	12	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-250-C	1Ph	110-220V	250	42	70	14	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-300-C	1Ph	110-220V	300	52	86	16	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-400-C	1Ph	110-220V	400	70	120	20	Phase angle constant current	4-20mA/0-5V
HGW6-1-2-225-CV	1Ph	110-220V	225	39	65	12	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-250-CV	1Ph	110-220V	250	42	70	14	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-300-CV	1Ph	110-220V	300	52	86	16	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-400-CV	1Ph	110-220V	400	70	120	20	Phase angle constant power	4-20mA/0-5V
HGW6-1-2-225-Z	1Ph	110-220V	225	39	65	12	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-250-Z	1Ph	110-220V	250	42	70	14	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-300-Z	1Ph	110-220V	300	52	86	16	Zero crossing cycle power regulating	4-20mA/0-5V
HGW6-1-2-400-Z	1Ph	110-220V	400	70	120	20	Zero crossing cycle power regulating	4-20mA/0-5V
