Product details

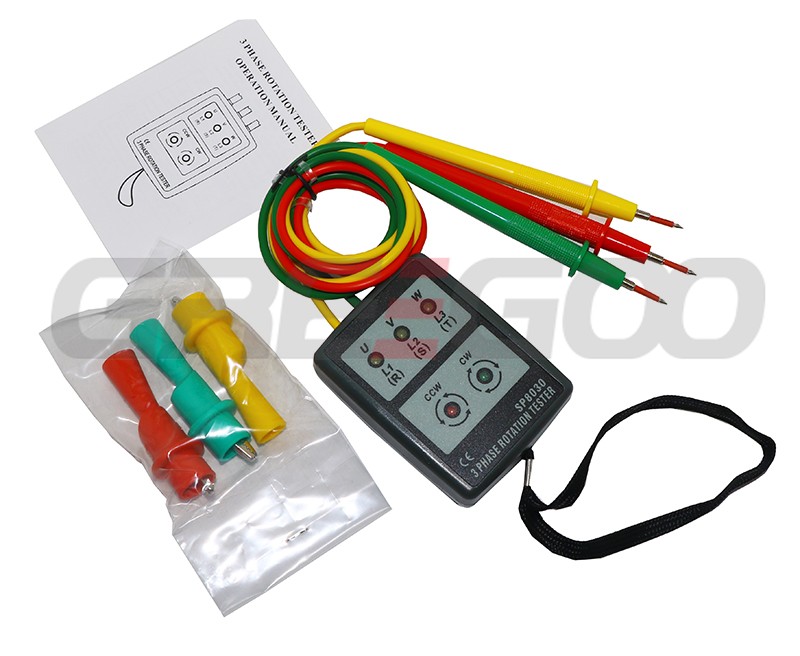

SP8030 Three Phase Sequence Tester
Introduction:
The SP8030 three-phase rotation tester is designed to check the phase sequence and show if the phase is open or not.
Features:
1.One Unit with two functions: Check the phase sequence and indicate the phase is open or not.
2.Safe and reliable: With alligator clips, easily involve the terminals of the control panel, guaranteeing reliability and safety.
3.Wide voltage test: It can check 60V to 600V AC three-phase voltage,high performance.
4.Easy to use: With LED light to show if the phase is open or not,supports buzzer indication.
5.Portable design: Small and light weight, with a carrying bag, convenient to take.
2.Safe and reliable: With alligator clips, easily involve the terminals of the control panel, guaranteeing reliability and safety.
3.Wide voltage test: It can check 60V to 600V AC three-phase voltage,high performance.
4.Easy to use: With LED light to show if the phase is open or not,supports buzzer indication.
5.Portable design: Small and light weight, with a carrying bag, convenient to take.
Specification
|
Model
|
SP8030
|
|
Operation voltage
|
60V～600V AC three phase
|
|
Limit support voltage
|
2000V/minute (impulse voltage 4000V)
|
|
Operation frequency range
|
20Hz～400Hz
|
|
Limit time for continuous use
|
60 minutes maximum at 60V AC
4 minutes maximum at 600V AC
|
|
Phase Sequence Indicator LED
|
Green for correct phase sequence,intermittent beep
Red for reverse phase sequence,continuous beep
|
|
Size
|
80 x 60 x 24mm
|
|
Item Weight
|
135g
|
