Piezo Buzzer
Home Products Industrial Control & ProtectionPanel MetersPiezo Buzzer
Specification
Piezo Buzzer

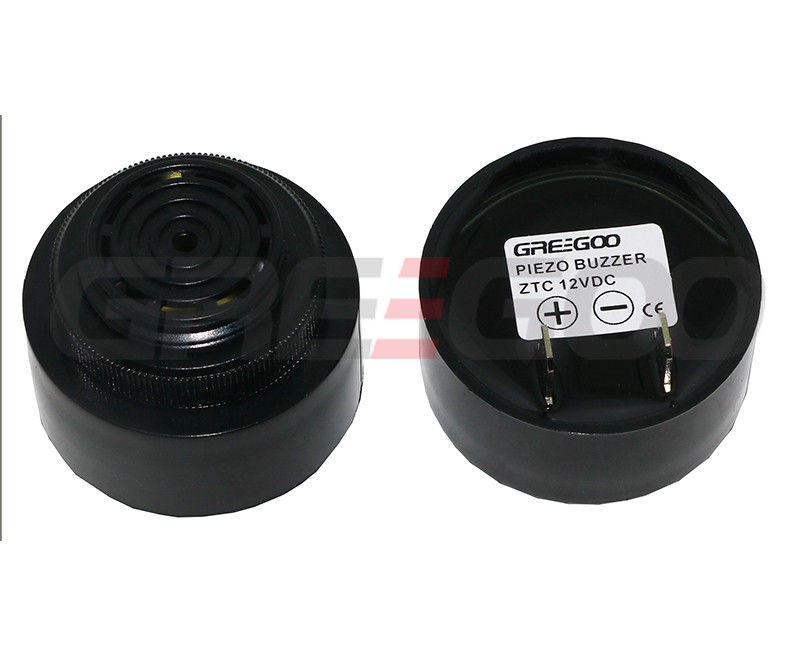

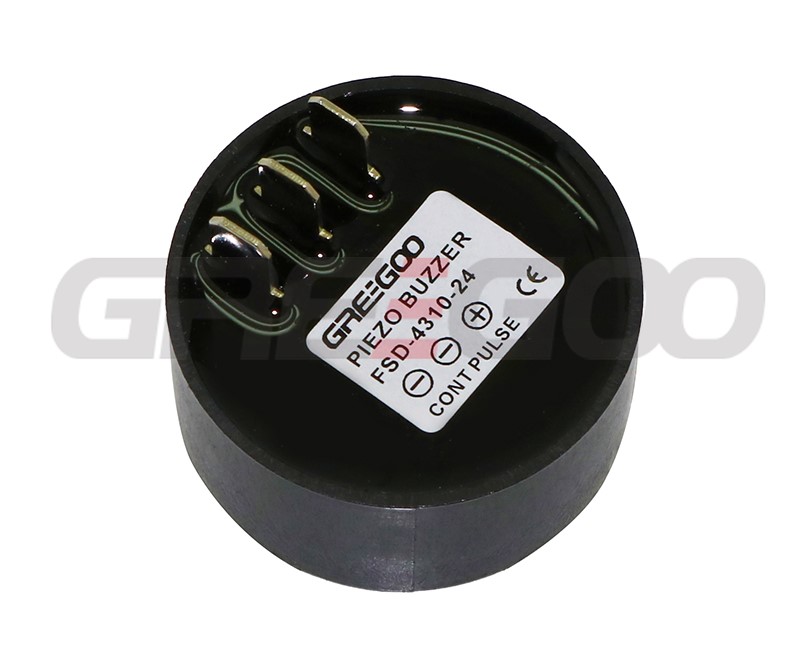

| Part Numbers | FSD-4310-12; FSD-4310-24; ZTC 12V | |
| Oscillation Frequency | Hz | 2900±500 |
| Operating Voltage | VDC | 6~28 |
| Rated Voltage | VDC | 12 |
| Current Consumption | mA | MAX. 20 |
| Sound Pressure Level | dB | MIN. 80 (60cm) |
| Operating Temperature | °C | -20 ~ 80 |
| Storage Temperature | °C | -30 ~ 85 |
| Dimension | mm | Φ43x H33 |
| Weight (MAX) | gram | 40 |
| Housing Material | ABS (Black) | |
| Leading Pin | Sn | |
| Approval | RoHS | |
| Tone | Constant Pulse |

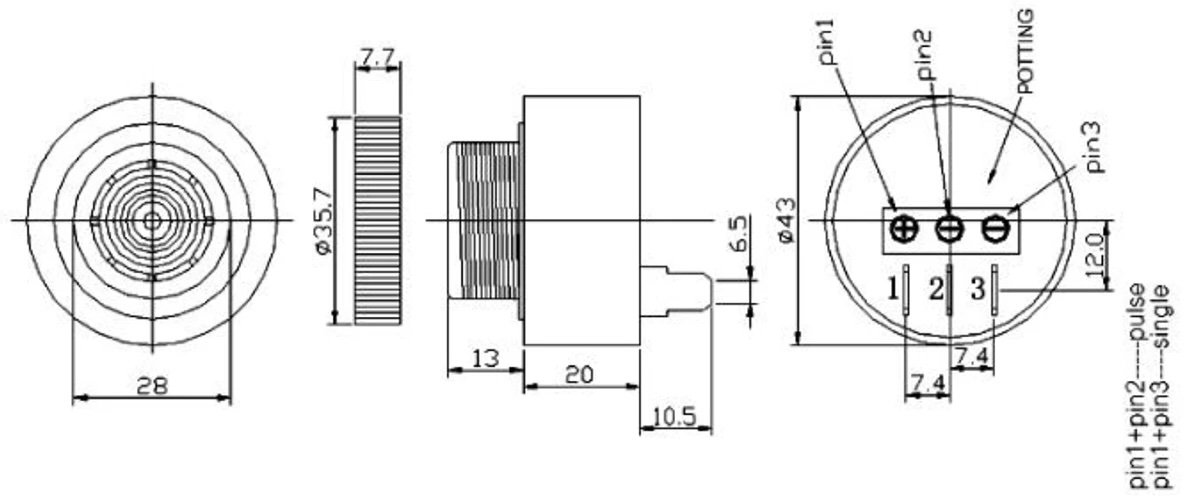

Dimension
