Residual Current Circuit Breakers up to 125A
Home Products RCCB MCB RCBOResidual Current Circuit Breakers (ID)Residual Current Circuit Breakers up to 125A
Product Details
Residual Current Circuit Breakers up to 125A
| Model | Rated Current | Pole No. | Type | ||
| 30mA | 100mA | 300mA | (A) | ||
| GDR225030 | GDR225100 | GDR225300 | 25 | 2 | AC |
| GDR240030 | GDR240100 | GDR240300 | 40 | 2 | AC |

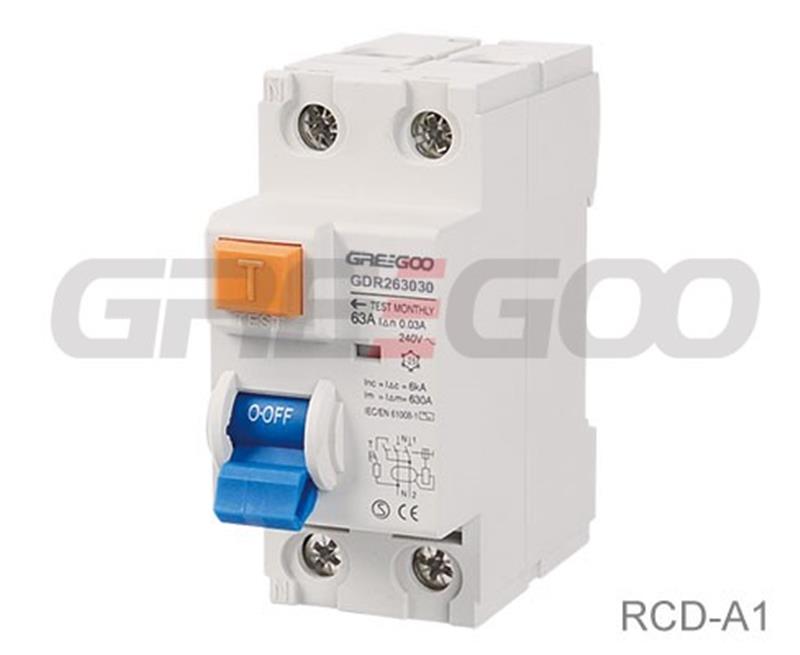

| GDR263030 | GDR263100 | GDR263300 | 63 | 2 | AC |
| GDR280030 | GDR280100 | GDR280300 | 80 | 2 | AC |
| GDR2100030 | GDR2100100 | GDR2100300 | 100 | 2 | AC |

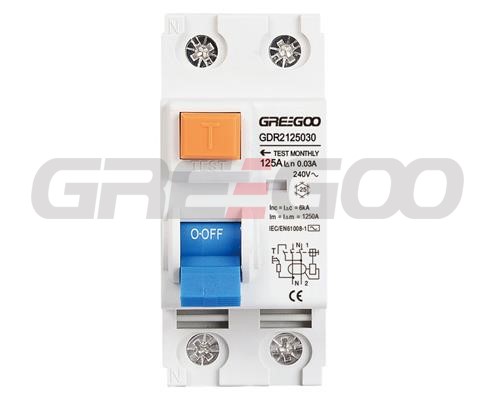

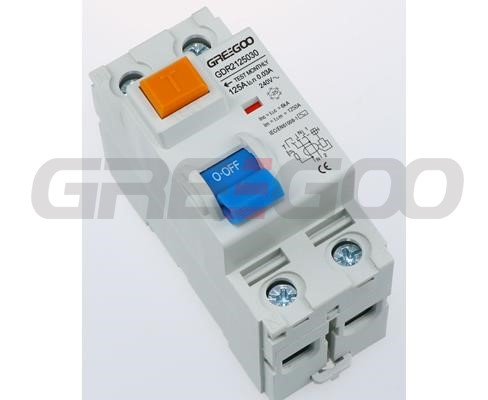

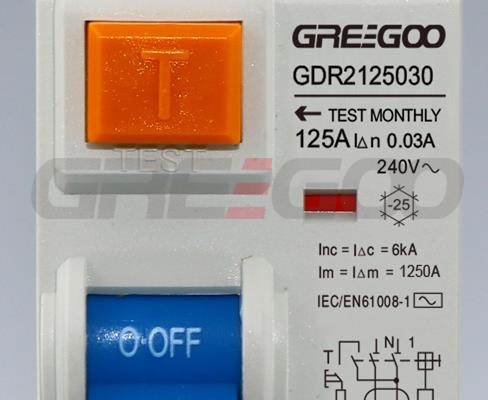

| GDR2125030 | GDR2125100 | GDR2125300 | 125 | 2 | AC |
| GDR425030 | GDR425100 | GDR425300 | 25 | 4 | AC |

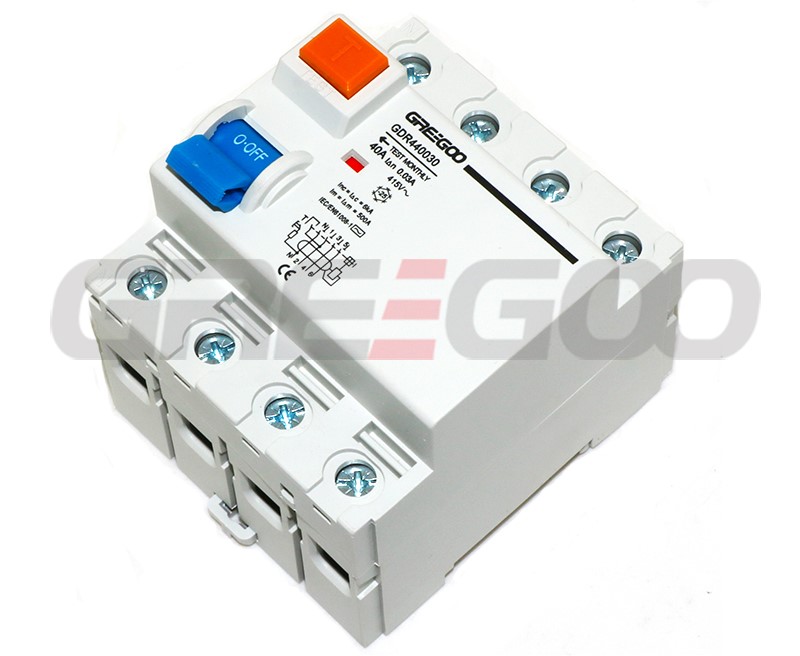

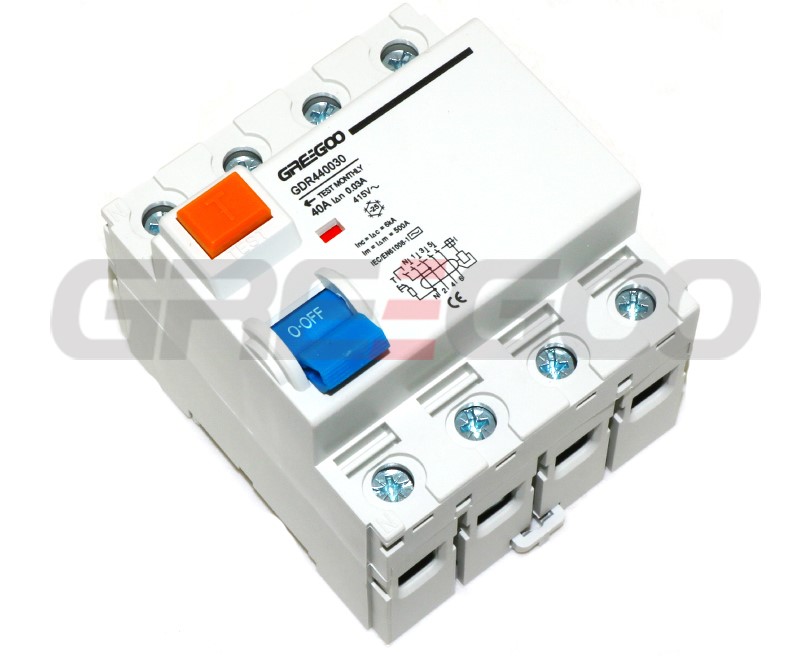

| GDR440030 | GDR440100 | GDR440300 | 40 | 4 | AC |

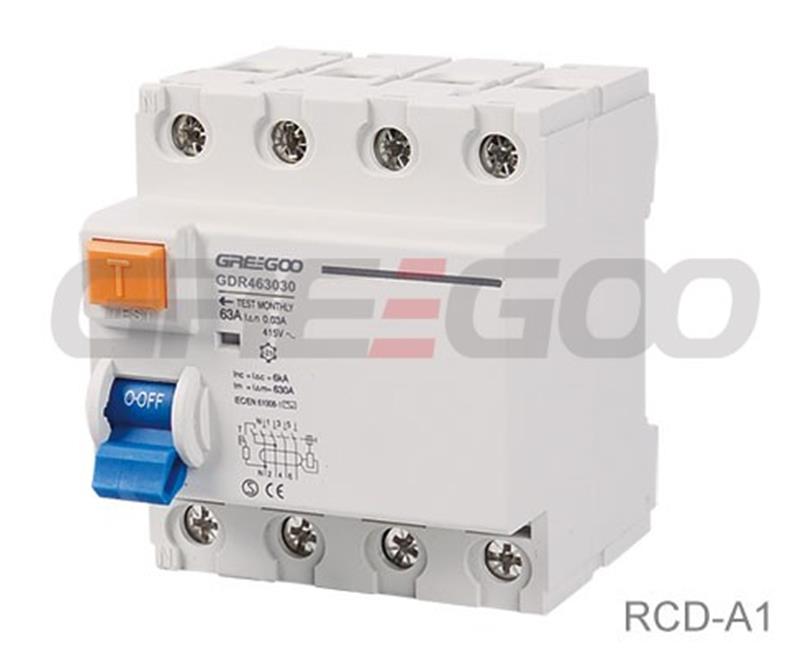

| GDR463030 | GDR463100 | GDR463300 | 63 | 4 | AC |
| GDR480030 | GDR480100 | GDR480300 | 80 | 4 | AC |
| GDR4100030 | GDR4100100 | GDR4100300 | 100 | 4 | AC |

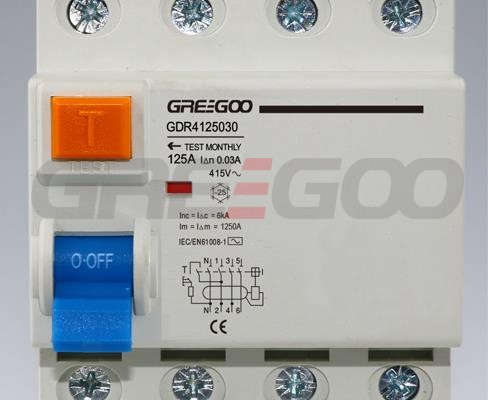

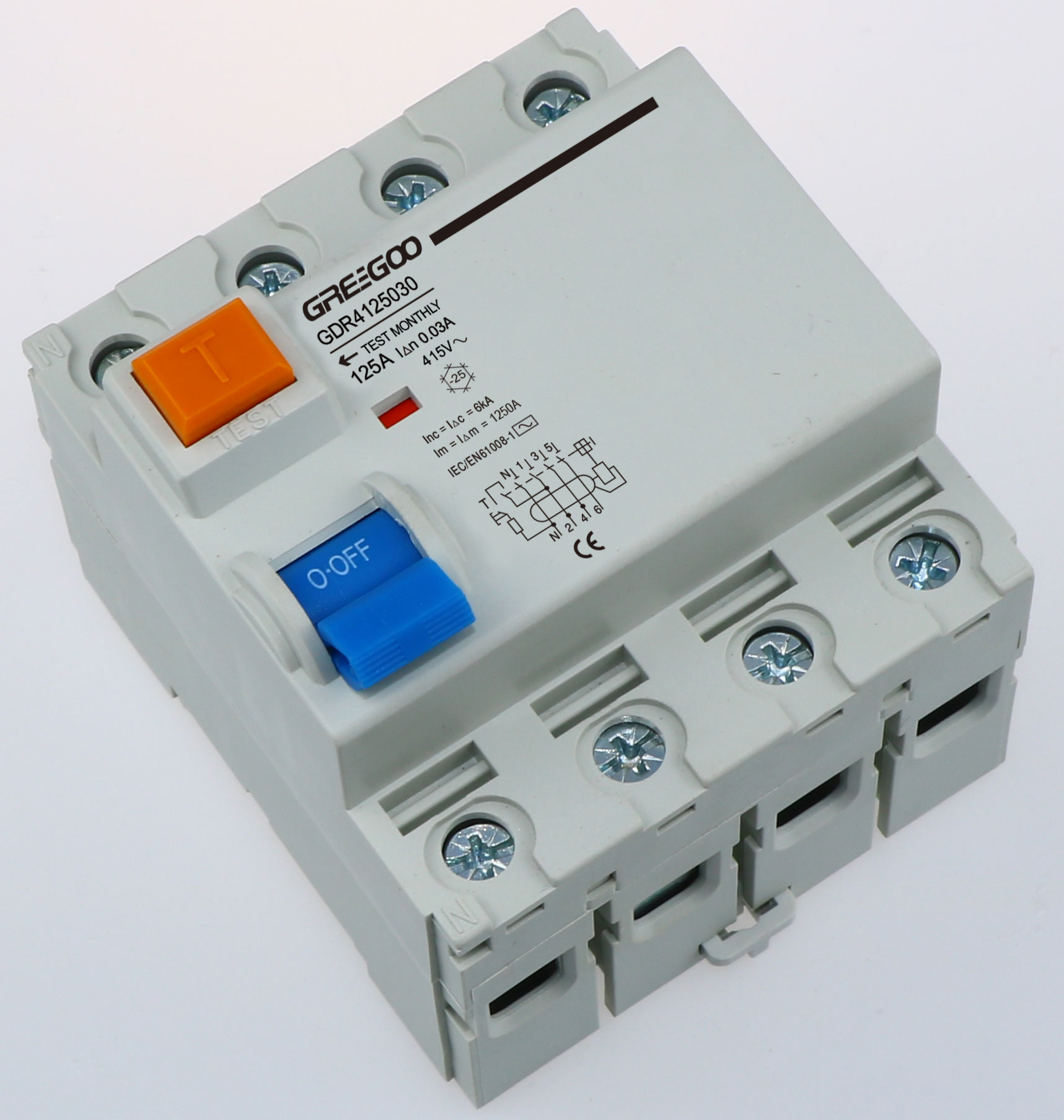

| GDR4125030 | GDR4125100 | GDR4125300 | 125 | 4 | AC |
| GDR225030A | GDR225100A | GDR225300A | 25 | 2 | A |
| GDR240030A | GDR240100A | GDR240300A | 40 | 2 | A |
| GDR263030A | GDR263100A | GDR263300A | 63 | 2 | A |
| GDR280030A | GDR280100A | GDR280300A | 80 | 2 | A |
| GDR2100030A | GDR2100100A | GDR2100300A | 100 | 2 | A |
| GDR2125030A | GDR2125100A | GDR2125300A | 125 | 2 | A |
| GDR425030A | GDR425100A | GDR425300A | 25 | 4 | A |
| GDR440030A | GDR440100A | GDR440300A | 40 | 4 | A |
| GDR463030A | GDR463100A | GDR463300A | 63 | 4 | A |
| GDR480030A | GDR480100A | GDR480300A | 80 | 4 | A |
| GDR4100030A | GDR4100100A | GDR4100300A | 100 | 4 | A |
| GDR4125030A | GDR4125100A | GDR4125300A | 125 | 4 | A |
| Model No. | GDR2__RCD-A1 | GDR4__RCD-A1 | |
| Casing code | RCD-A1 | RCD-A1 | |
| Pole No. | 2 Pole / 1P N | 4 Pole / 3P N | |
| Standard Conformity | IEC 61008-1 | IEC 61008-1 | |
| Rated Current (In) | A | 25, 40, 63, 80, 100, 125 | 25, 40, 63, 80, 100, 125 |
| Sensitivity (I△n) | mA | 30, 100, 300 | 30, 100, 300 |
| Rated Voltage (Un) | Vac | 240 | 240 / 415 |
| Type | A/AC | A/AC | |
| Shortcircuit Withstand Capacity | kA | 6 | 6 |
| Residual Making Breaking Capacity | A | 10 In | 10 In |
| Rated Insulation Voltage (Ui) | V | 500 | 500 |
| Rated Frequency | Hz | 50 | 50 |
| Rated Shock Withstand Voltage | V | 4000 | 4000 |
| Torque | Nm | 3.0 | 3.0 |
| Ambient Temperature | oC | -25 to 40 | -25 to 40 |
| Electrical Endurance/Mechanical | operations | 10000 | 10000 |
| Mounting | Din Rail (35 * 7.5) mm | Din Rail (35 * 7.5) mm | |
| Degree of Protection | IP 20 | IP 20 | |
| Terminal Capacity (max) | mm2 | 25 | 25 |
| Installation category | II | II |
