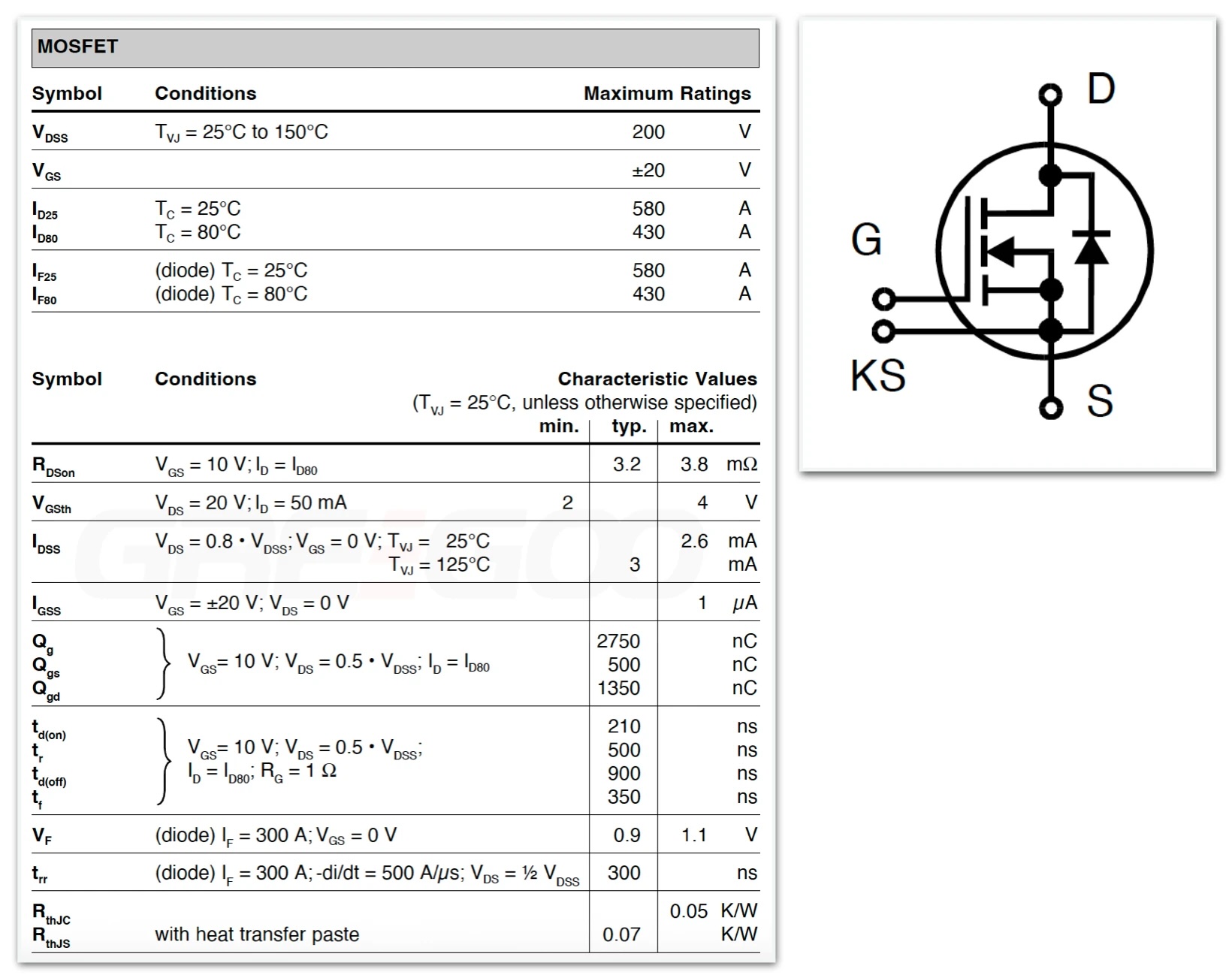

Power FET module VMO580-02F

Features

• HiperFET technology

- low RDSon

- dv/dt ruggedness

- fast intrinsic reverse diode

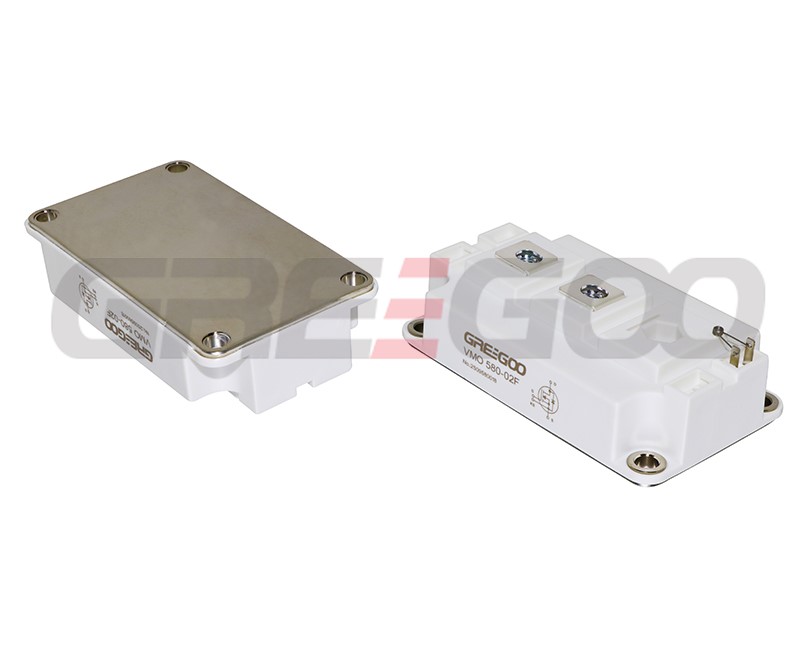

• Package

- low inductive current path

- screw connection to high current

Main terminals

- use of non interchangeable connectors for auxiliary terminals possible

- Kelvin source terminals for easy drive

- isolated ceramic base plate

Applications

• converters with high power density for

- main and auxiliary AC drives of electric vehicles

- DC drives

- power supplies
