СP ОВ 100 Current Transformer
Home Products Low Voltage Current TransformerCP series current transformerСP ОВ 100 Current Transformer
Product Details

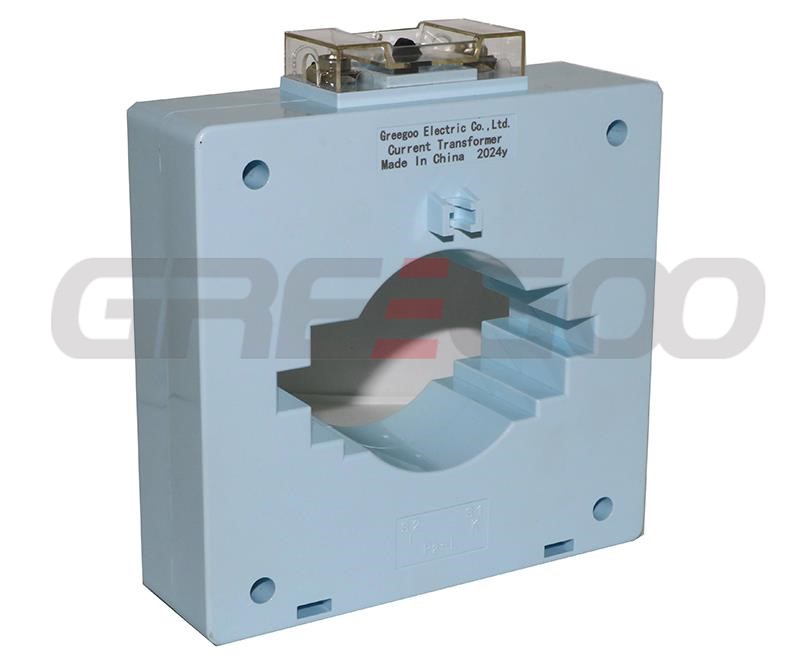

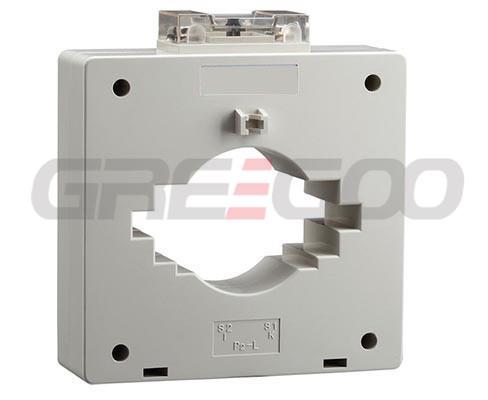

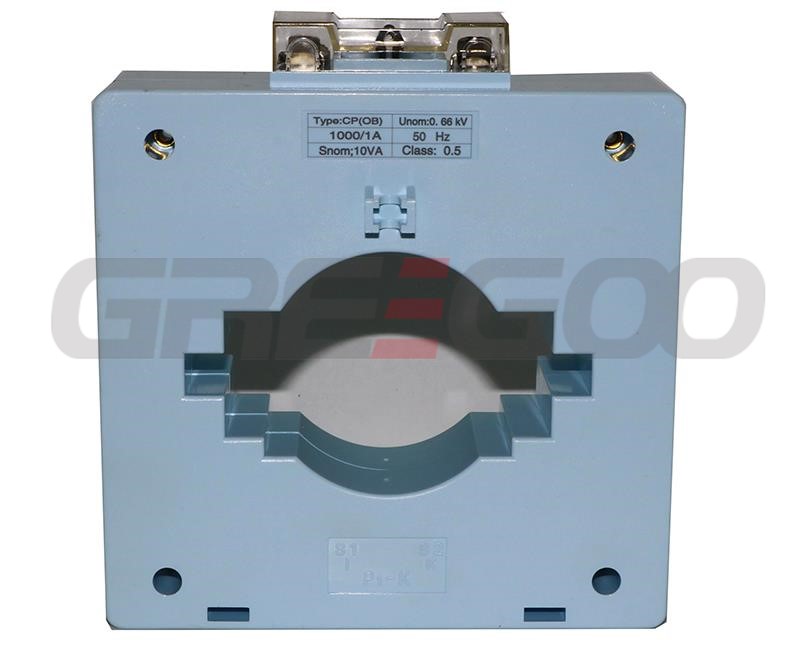

СP ОВ 100 Current Transformer
| Model | Ratio A | Burden VA | Cross core turn number | |
| class 0.5 | class 1.0 | |||
| СP(ОВ) 100 | 1500/5 | 15.0 | 15.0 | 1 |
| 1600/5 | 15.0 | 15.0 | 1 | |
| 2000/5 | 15.0 | 15.0 | 1 | |
| 2250/5 | 15.0 | 15.0 | 1 | |
| 2500/5 | 15.0 | 15.0 | 1 | |
| 3000/5 | 15.0 | 15.0 | 1 | |
