Product Details


Model Rated voltage ratio KV Accuracy class Rated capacity VA Max capacity VA Rated insulation level KV
JDZX10-11 11 √ 3/0.11 √ 3/0.11/3 0.2/6P(3P) 15/50 200 12/42/75
0.5/6P(3P) 30/50


DZX10-11 voltage transformer adopts an epoxy resin vacuum casting fully enclosed structure and is suitable for power systems with a rated frequency of 50Hz and a rated voltage of 11kV, as well as switch cabinets and energy metering cabinets for voltage, energy measurement and relay protection.

Installation location: indoors.
Ambient temperature: maximum temperature 40℃; minimum temperature -5℃; daily average temperature does not exceed 30℃.
Altitude: no more than 1000m.
Atmospheric conditions: There is no serious pollution in the atmosphere.

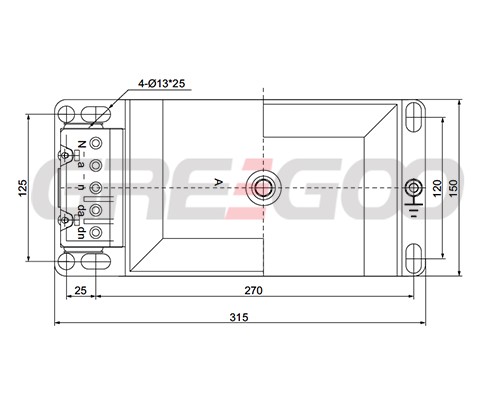

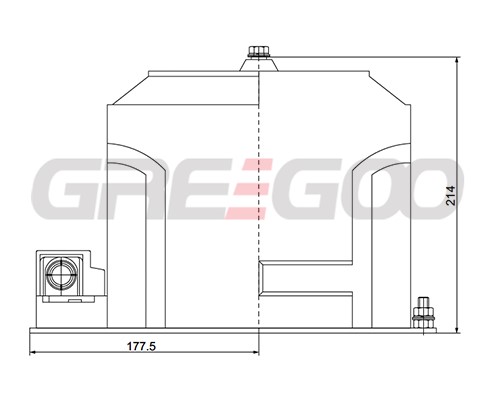

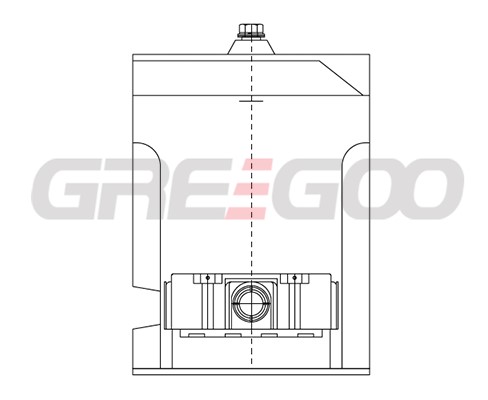

This series of instrument transformers has a pillar structure and is fully enclosed and cast with epoxy resin. It is resistant to pollution and moisture. It is also suitable for use in tropical areas. The instrument transformer does not require special maintenance and only needs to regularly remove surface dirt. Since the transformer is fully enclosed and cast with epoxy resin, it is small in size, light in weight, and suitable for installation in any position and direction. A terminal box is installed at the secondary outlet terminal. There is a hole on the front and side of the terminal box (which can be formed by lifting it by hand) to cooperate with the outlet terminal for lead-out wiring, which is safe and reliable. There are 6 mounting holes on the product base plate for installation.
