4-20mA 0-10V Solid State Control Relay

EM series single-phase 0-10V or 4-20mA controllable AC solid state relay, which integrates phase shift trigger circuit, resistance absorption circuit and silicon scr. By adjusting the control signal, changing the voltage on the resistance load to adjust the output power. Can be widely used in lighting equipment lighting adjustment, civil industrial heating temperature control and motor speed control, plastic suction machine and other occasions.

Part Numbers

Control Voltage (Input Signal)	Output Voltage	Rated Operational Current
Control Voltage (Input Signal)	Output Voltage	10Amps	25Amps	40Amps	60Amps	80Amps	100Amps	120Amps

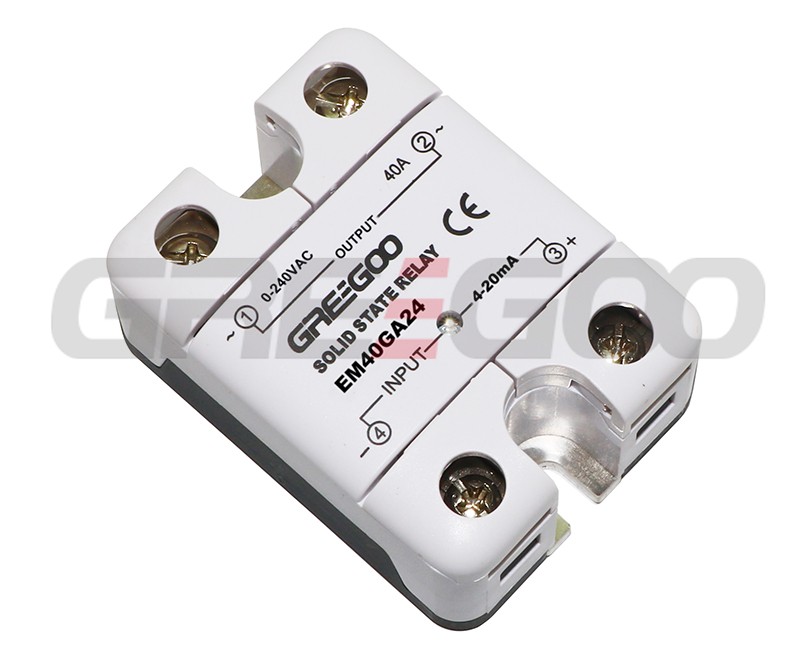

4-20mA	0-240VAC	EM10GA24	EM25GA24	EM40GA24	EM60GA24	EM80GA24	EM100GA24	EM120GA24

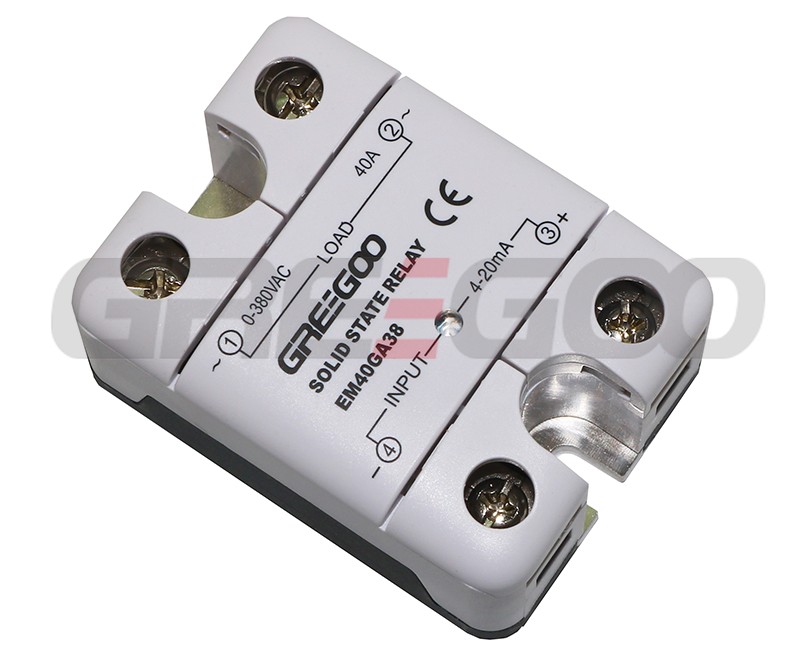

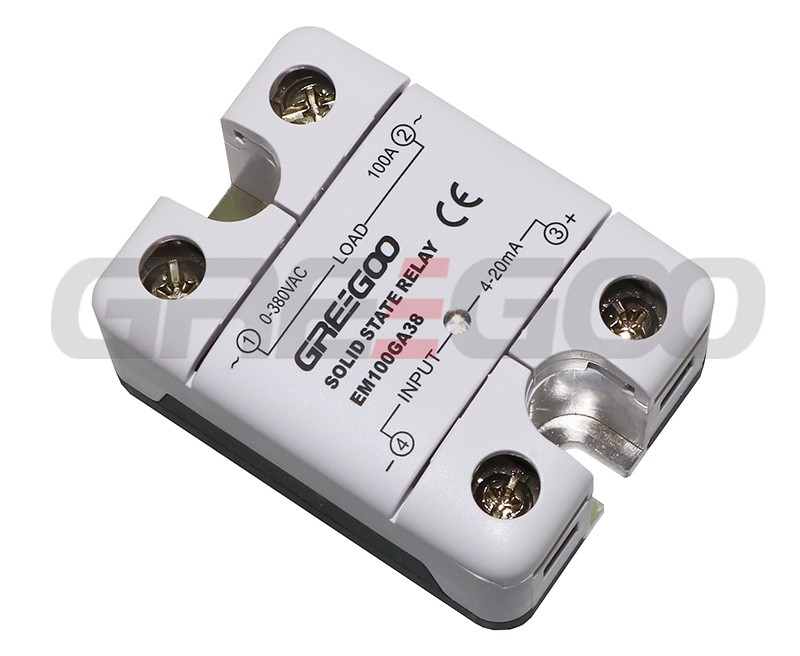

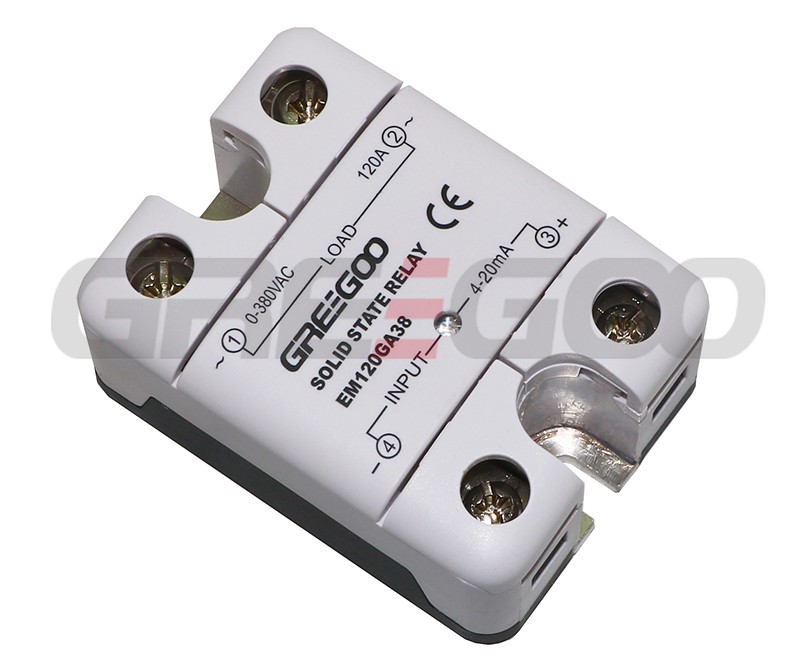

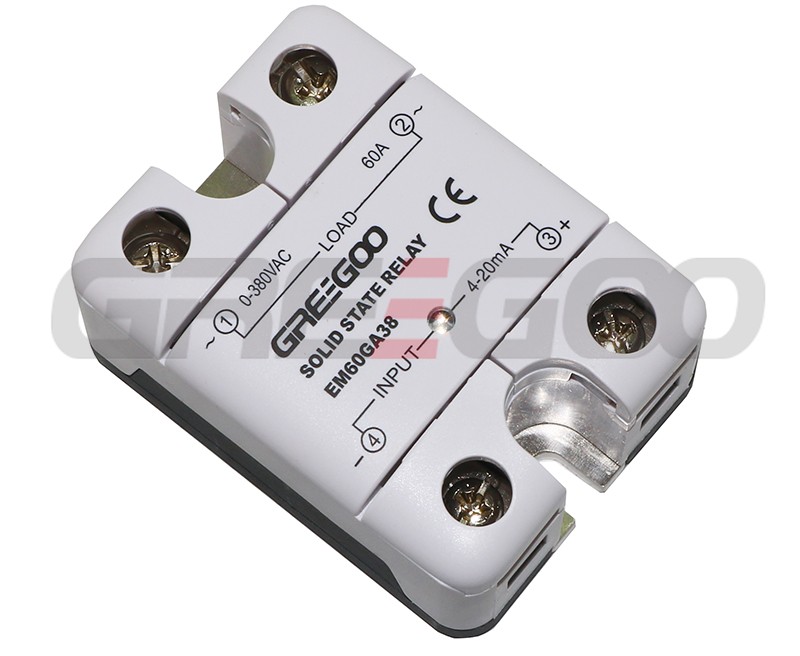

4-20mA	0-380VAC	EM10GA38	EM25GA38	EM40GA38	EM60GA38	EM80GA38	EM100GA38	EM120GA38
0-10VDC	0-240VAC	EM10GV24	EM25GV24	EM40GV24	EM60GV24	EM80GV24	EM100GV24	EM120GV24

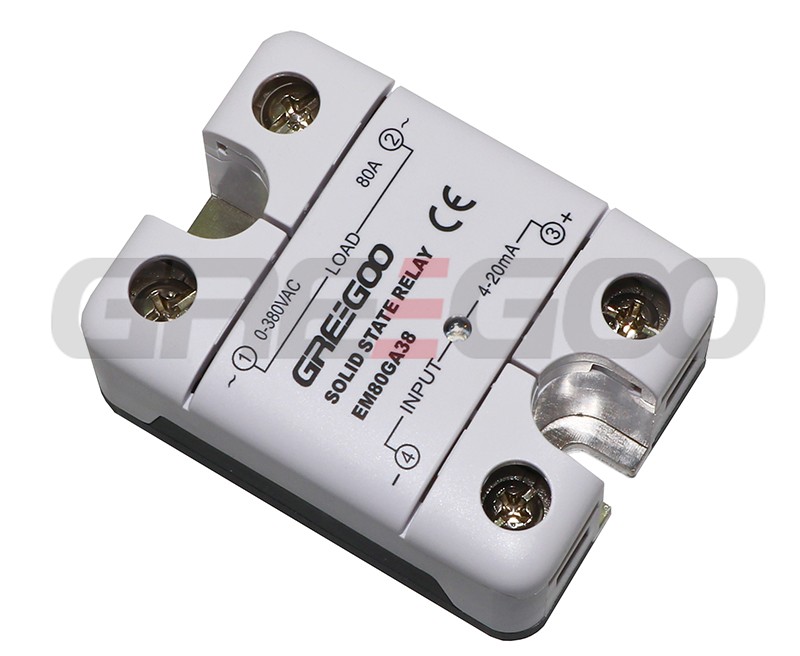

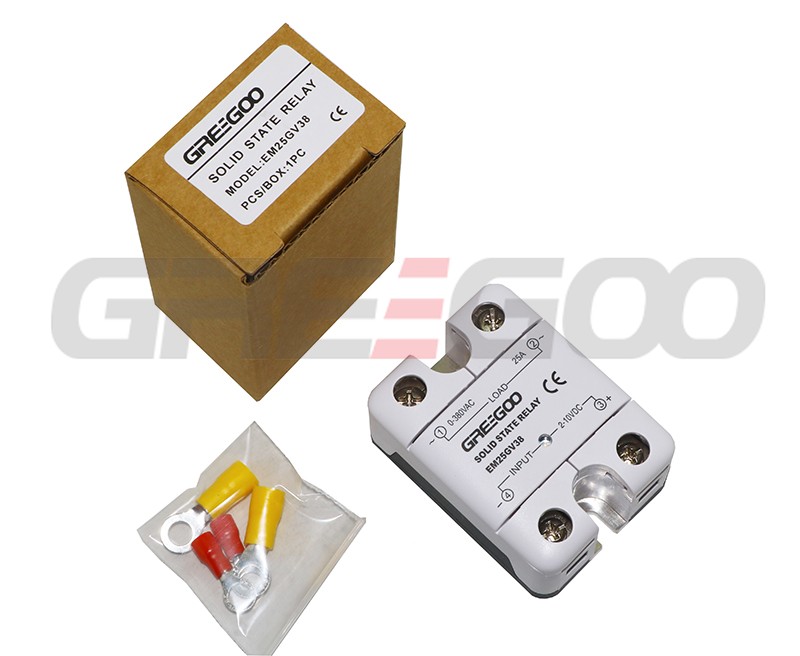

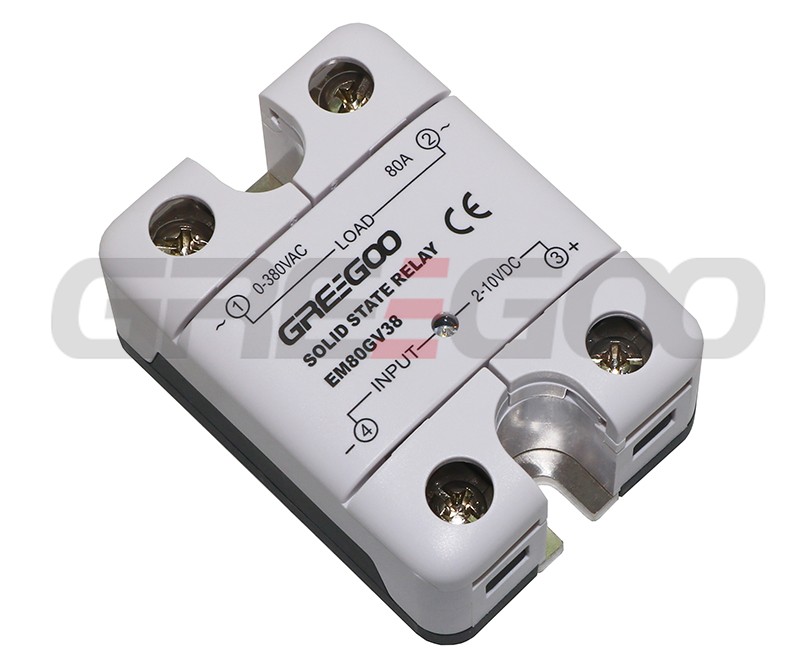

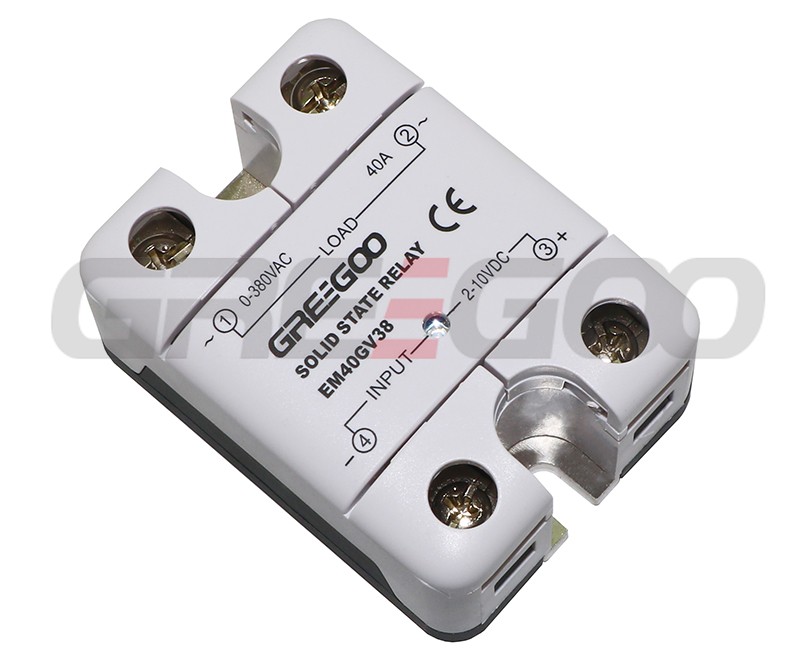

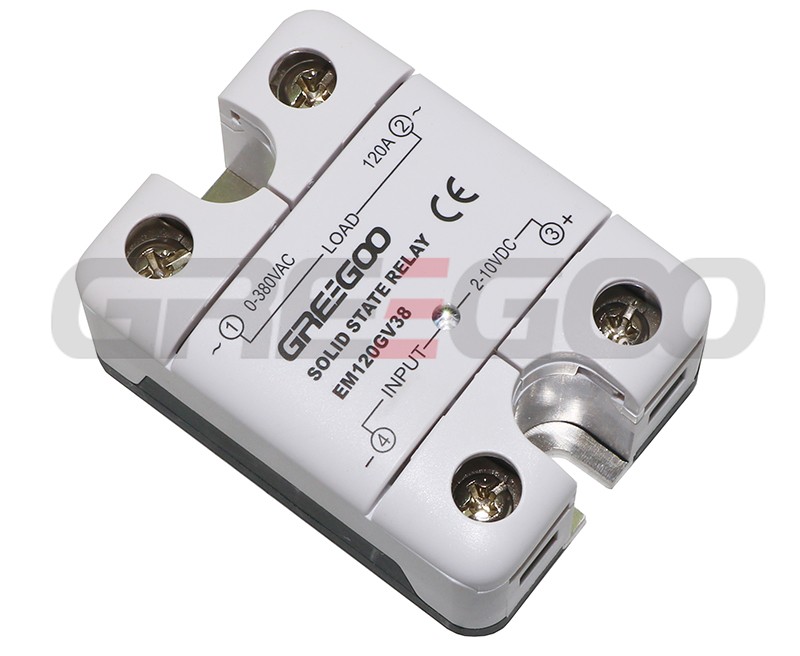

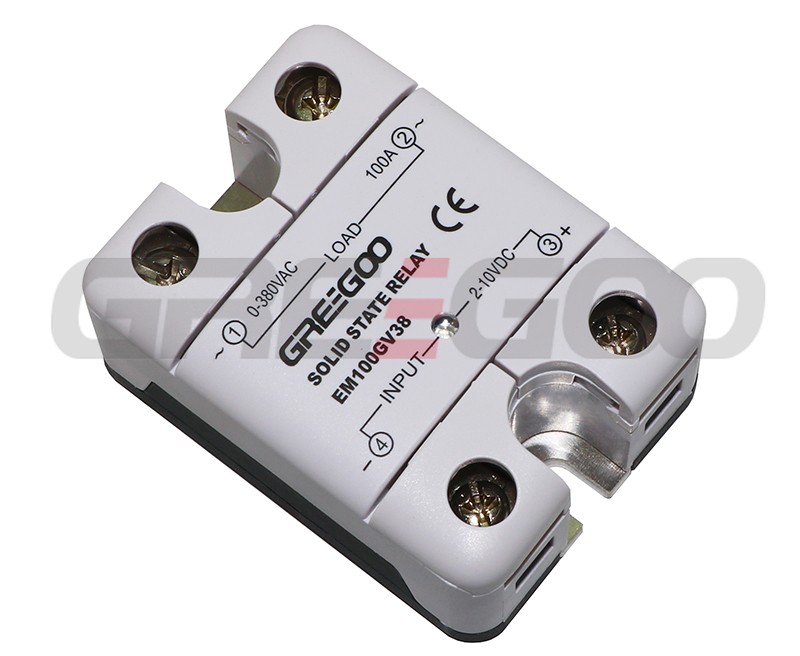

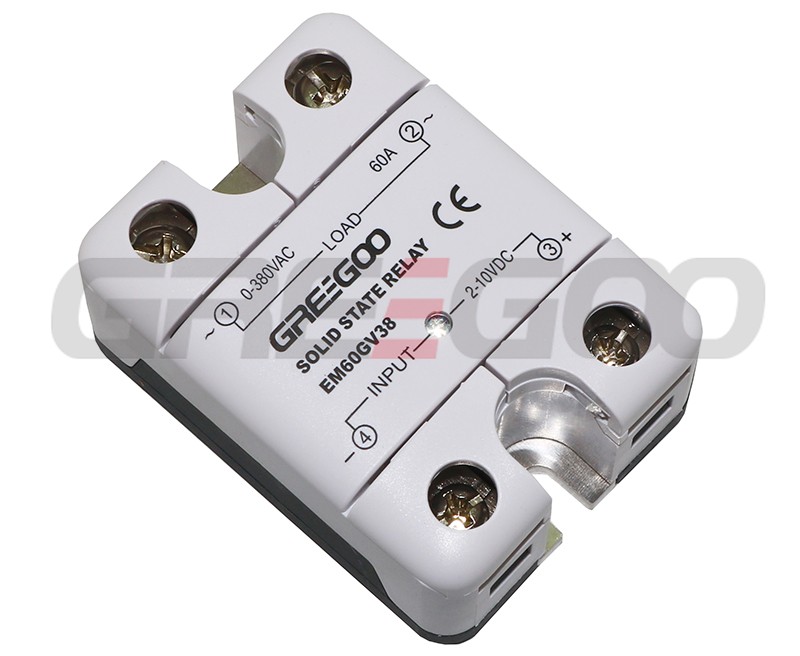

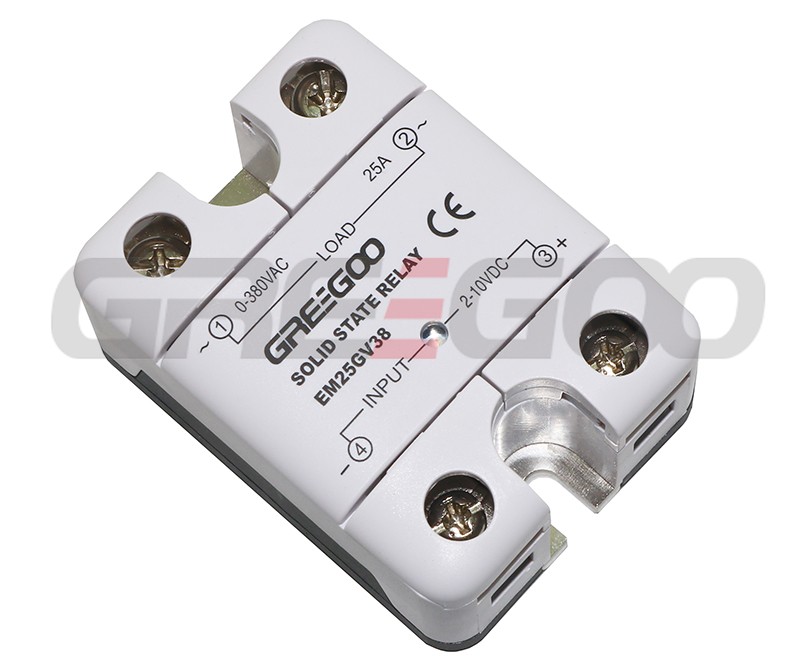

0-10VDC	0-380VAC	EM10GV38	EM25GV38	EM40GV38	EM60GV38	EM8OGV38	EM100GV38	EM120GV38

Specification

Parameter	Unit	Specification Limits
Load Current	Amps	10	25	40	60	80	100	120
Load Current Range	Arms	0.05 to 10	0.05 to 25	0.1 to 40	0.1 to 60	0.1 to 80	0.1 to 100	0.1 to 120
Control Voltage	mA/V	4-20mA or 2-10VDC
Load Voltage Regulation Range	V	0-240VAC or 0-380VAC
Minimum On-current	mA	50mA
Maximum On-state Voltage Drop	Vrms	2V
Maximum Off-state Current	mA	5mA
On-off Time	MS	≤10ms
Working Frequency	Hz	≤45-65Hz
Dielectric Strength,Input to Output	Vrms	2500Vrms
Dielectric Strength,Input/Output to Base	Vrms	2500Vrms
Ambient Operating Temperature Range	℃	-30 to 80℃
