Product details

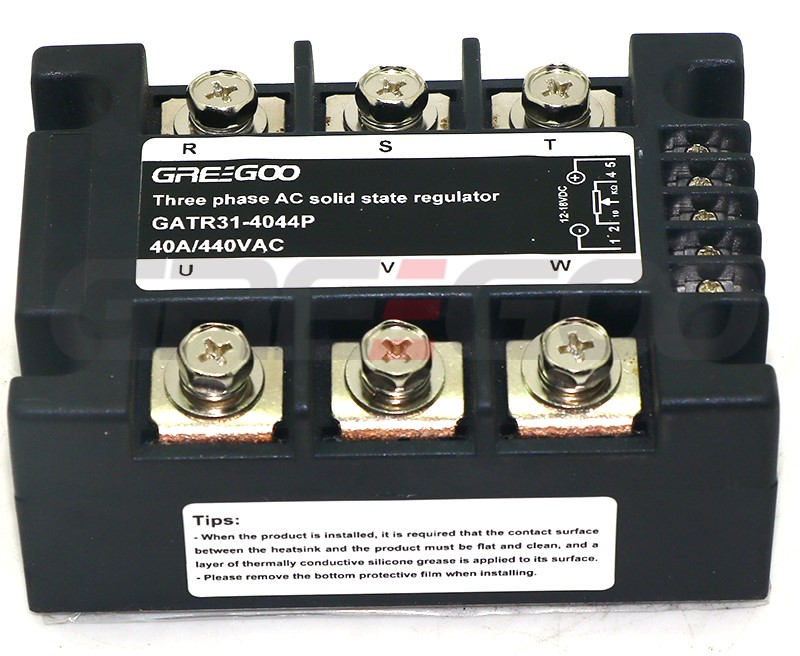

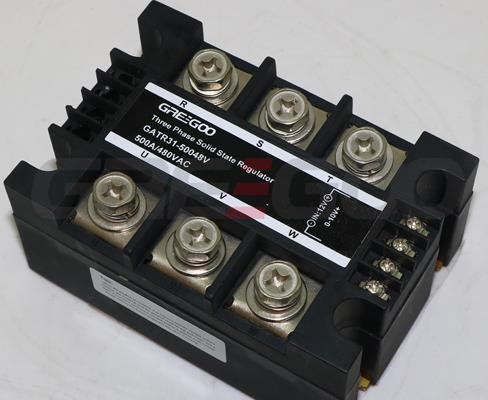

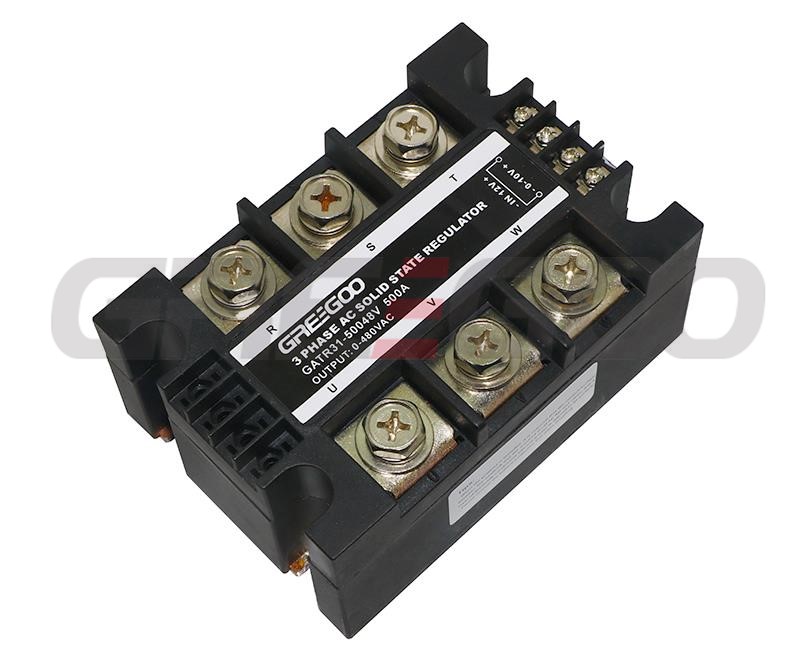

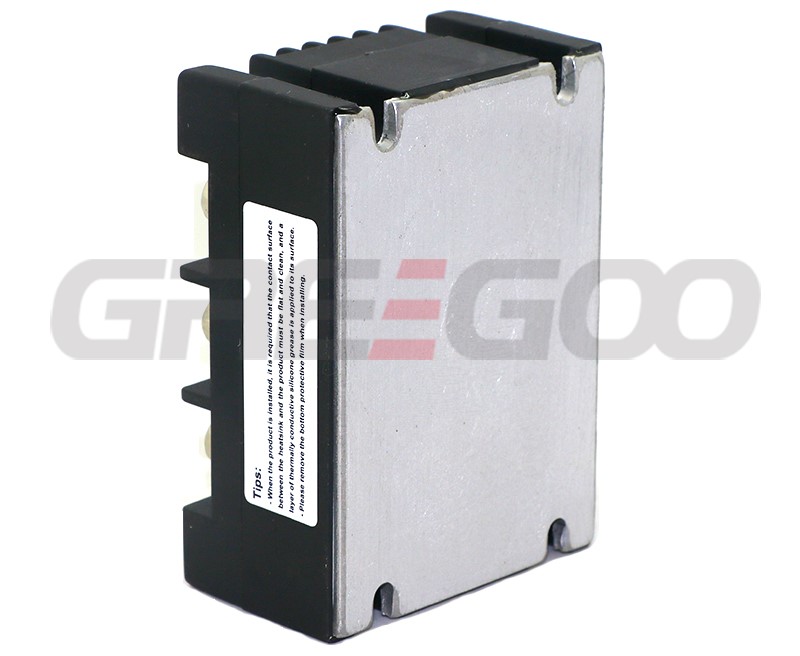

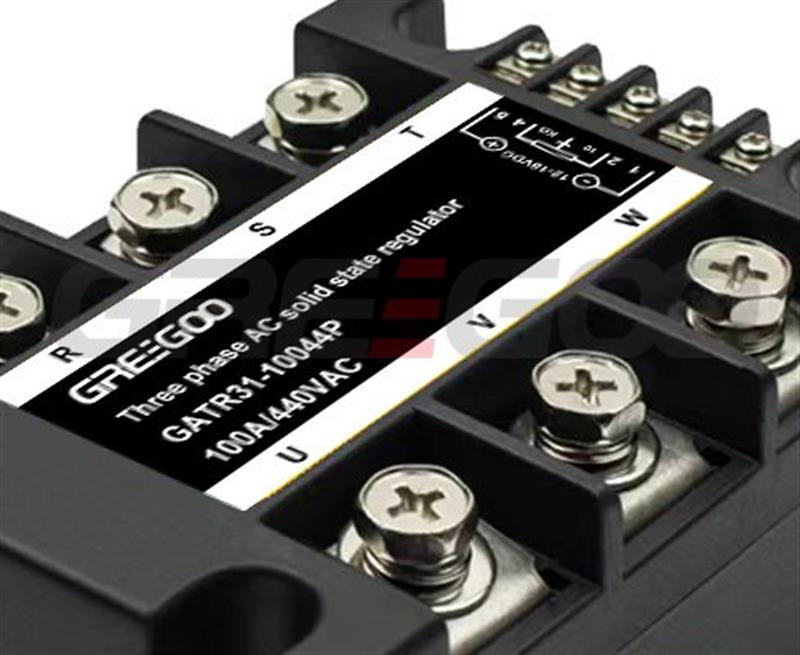

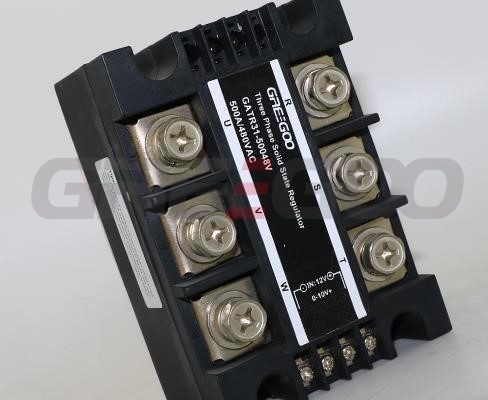

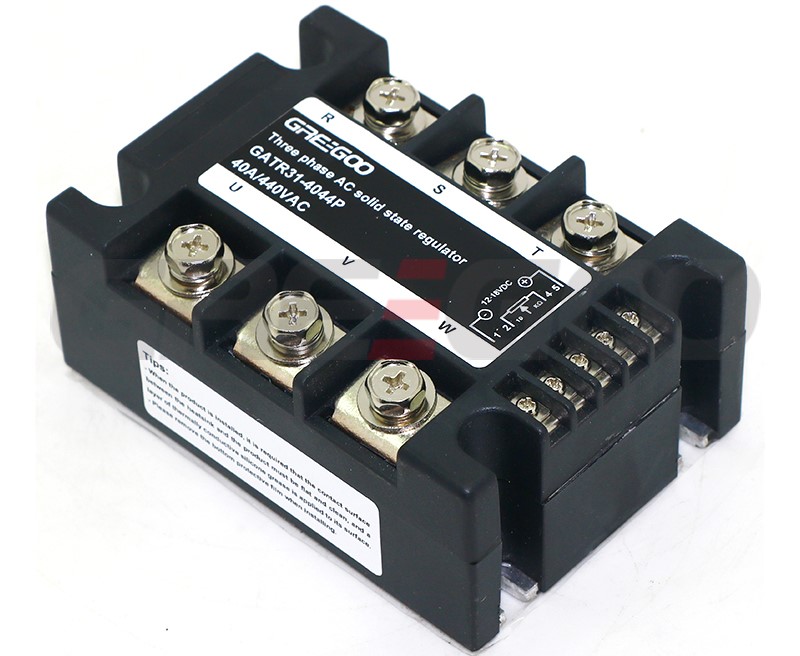

Three phase Solid State Voltage Regulator

Feature:

♦Integrates synchronous signal, shaping circuit, amplifying circuit, phase-shift trigger and output thyristor in one.
♦The weak current part and the strong current part are optically isolated.
♦Easy to install, no additional synchronous transformer and external neutral wire are needed.
♦Small size, wide voltage adjustment range, stable and reliable operation.
♦Mainly used in industrial electric furnaces, electric heating ovens, lighting and other equipment for voltage regulation, temperature regulation, light regulation, etc.

Specification

Model	GATR31-P	GATR31-V	GATR31-A
Input voltage	440VAC	480VAC	480VAC
Load voltage	0-440V	0-480V	0-480V
Maximum load current	10-500A	10-500A	10-500A

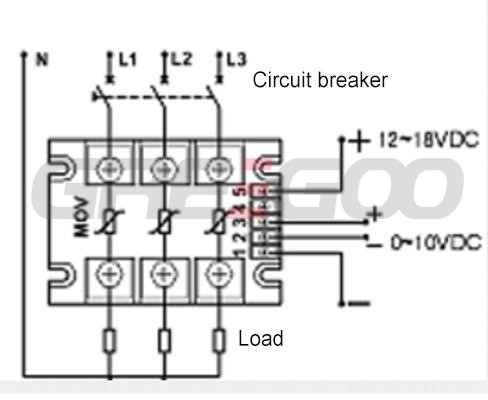

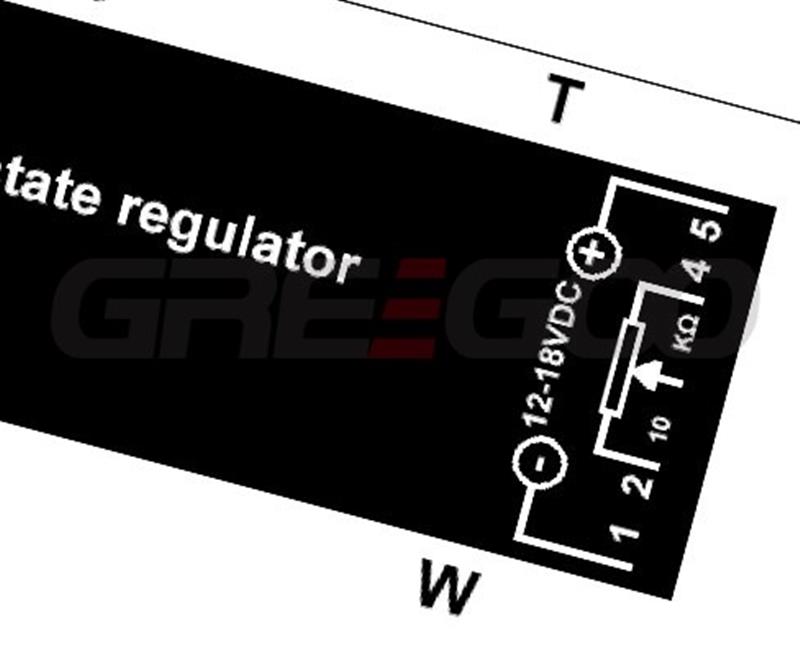

Control mode	External potentiometer 10KΩ/1W	0～10 VDC	4-20mA
Control Power Supply	12-18VDC	12-18VDC	12-18VDC
Off-state voltage	≥ 900 V	≥ 1500 V	≥ 1500 V
Isolation voltage	≥ 1800 V	≥ 2000 V	≥ 2000 V
Insulation voltage	≥2000 V	≥2500 V	≥2500 V
Insulation resistance	≥100 MΩ	≥100 MΩ	≥100 MΩ
Power frequency	50~60 HZ	50~60 HZ	50~60 HZ
Operating Temperature	-20～75℃	-20～75℃	-20～75℃
Heat dissipation conditions	≥20A with heat sink, ≥30A plus fan strong cooling	≥20A with heat sink, ≥30A plus fan strong cooling	≥20A with heat sink, ≥30A plus fan strong cooling
Load current safety factor	Inductive load 3~4 times; Resistive load 2~3 times	Inductive load 3~4 times; Resistive load 2~3 times	Inductive load 3~4 times; Resistive load 2~3 times

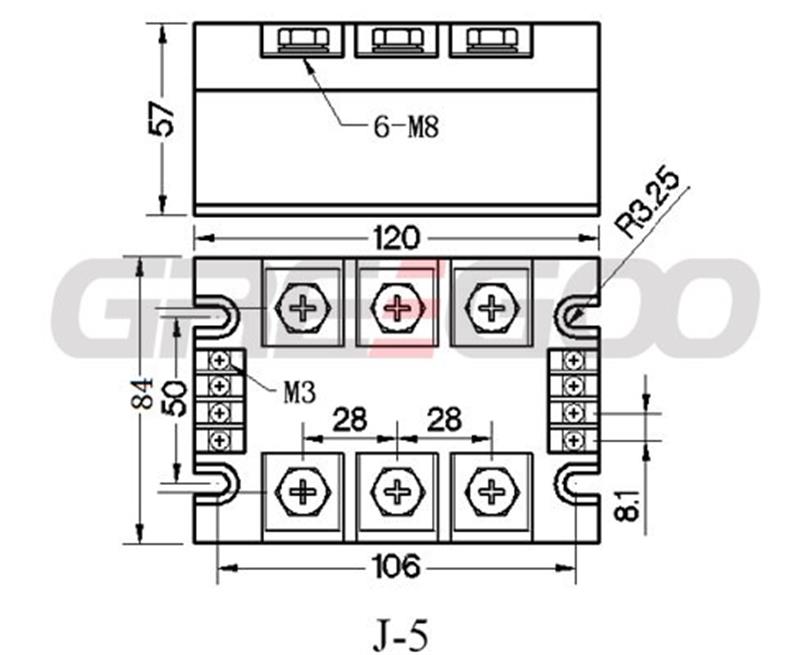

Part Numbers Selection

Phase shift voltage regulator, three phase AC switching solid state regulator

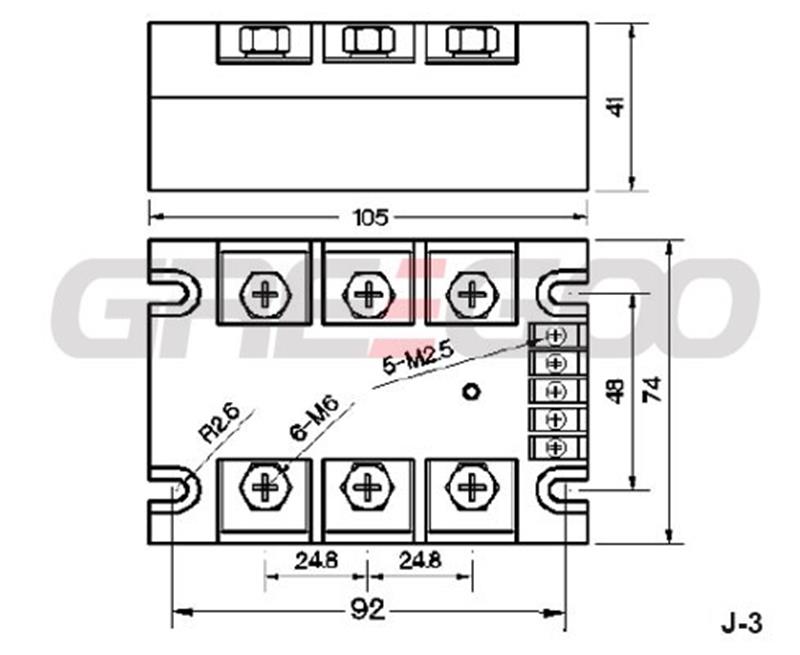

MODEL	RATED CURRENT	VOLTAGE RANGE	CONTROL	CASING
GATR31-1048V	10A	0-480VAC	0-10V	J-3
GATR31-2048V	20A	0-480VAC	0-10V	J-3
GATR31-3048V	30A	0-480VAC	0-10V	J-3
GATR31-4048V	40A	0-480VAC	0-10V	J-3
GATR31-5048V	50A	0-480VAC	0-10V	J-3
GATR31-6048V	60A	0-480VAC	0-10V	J-3
GATR31-8048V	80A	0-480VAC	0-10V	J-3
GATR31-10048V	100A	0-480VAC	0-10V	J-3
GATR31-12048V	120A	0-480VAC	0-10V	J-3
GATR31-15048V	150A	0-480VAC	0-10V	J-3
GATR31-18048V	180A	0-480VAC	0-10V	J-3
GATR31-20048V	200A	0-480VAC	0-10V	J-5
GATR31-30048V	300A	0-480VAC	0-10V	J-5
GATR31-40048V	400A	0-480VAC	0-10V	J-5
GATR31-50048V	500A	0-480VAC	0-10V	J-5
GATR31-1048A	10A	0-480VAC	4-20mA	J-3
GATR31-2048A	20A	0-480VAC	4-20mA	J-3
GATR31-3048A	30A	0-480VAC	4-20mA	J-3
GATR31-4048A	40A	0-480VAC	4-20mA	J-3
GATR31-5048A	50A	0-480VAC	4-20mA	J-3
GATR31-6048A	60A	0-480VAC	4-20mA	J-3
GATR31-8048A	80A	0-480VAC	4-20mA	J-3
GATR31-10048A	100A	0-480VAC	4-20mA	J-3
GATR31-12048A	120A	0-480VAC	4-20mA	J-3
GATR31-15048A	150A	0-480VAC	4-20mA	J-3
GATR31-18048A	180A	0-480VAC	4-20mA	J-3
GATR31-20048A	200A	0-480VAC	4-20mA	J-5
GATR31-30048A	300A	0-480VAC	4-20mA	J-5
GATR31-40048A	400A	0-480VAC	4-20mA	J-5
GATR31-50048A	500A	0-480VAC	4-20mA	J-5
GATR31-1044P	10A	0-440VAC	POTENTIOMETER	J-3
GATR31-2044P	20A	0-440VAC	POTENTIOMETER	J-3
GATR31-3044P	30A	0-440VAC	POTENTIOMETER	J-3
GATR31-4044P	40A	0-440VAC	POTENTIOMETER	J-3
GATR31-5044P	50A	0-440VAC	POTENTIOMETER	J-3
GATR31-6044P	60A	0-440VAC	POTENTIOMETER	J-3
GATR31-8044P	80A	0-440VAC	POTENTIOMETER	J-3
GATR31-10044P	100A	0-440VAC	POTENTIOMETER	J-3
GATR31-12044P	120A	0-440VAC	POTENTIOMETER	J-3
GATR31-15044P	150A	0-440VAC	POTENTIOMETER	J-3
GATR31-18044P	180A	0-440VAC	POTENTIOMETER	J-3
GATR31-20044P	200A	0-440VAC	POTENTIOMETER	J-5
GATR31-30044P	300A	0-440VAC	POTENTIOMETER	J-5
GATR31-40044P	400A	0-440VAC	POTENTIOMETER	J-5
GATR31-50044P	500A	0-440VAC	POTENTIOMETER	J-5
