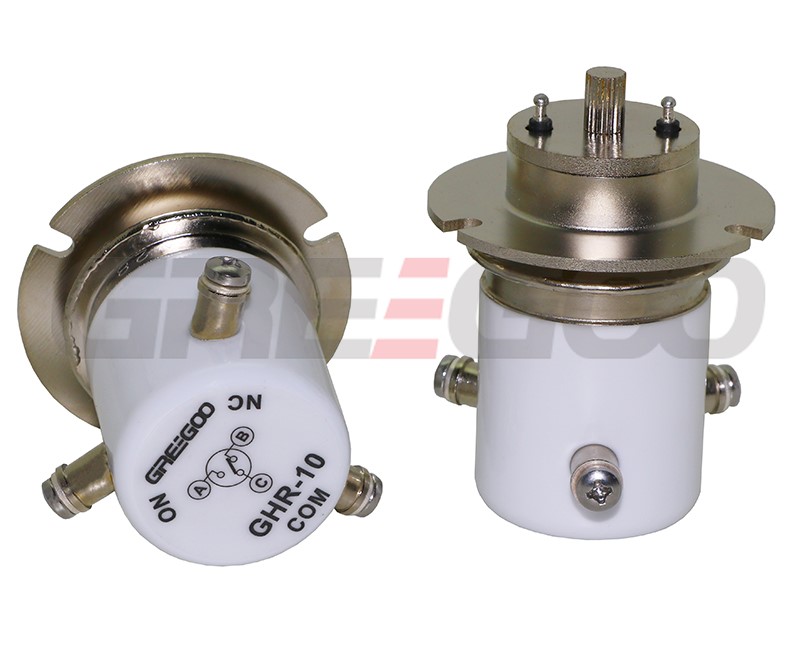

20KV HV Relay GHR-10
- Specifically designed for load switching applications
- Durable tungsten contacts for hot load switching
Specification
| Product Specification | Unit | GHR10 | |
| Contact Form | C | ||
| Contact Arrangement | SPDT | ||
| Test Voltage,(KV Peak), Test Max., Contacts & Base(15 μA Leakage Max., dc or 60Hz) | KV Peak | 22 | |
| Rated Operating Voltage, (kV,Peak), Contacts & to Base (15 μA Leakage Max.) |
DC or 60Hz | KV Peak | 20 |
| 2.5MHz | KV Peak | - | |
| 16MHz | KV Peak | - | |
| 32MHz | KV Peak | - | |
| Continuous Current,Carry Max | DC or 60Hz | Amps | 50 |
| 2.5MHz | Amps | - | |
| 16MHz | Amps | - | |
| 32MHz | Amps | - | |
| Coil Hi-Pot (VRMS, 60 Hz) | V | 500 | |
| Capacitance | Across Open Contacts | pF | 3 |
| Contacts to Ground | pF | 3.5 | |
| Resistance, Contact Max @ 1A, 28Vdc | Ω | 0.025 | |
| Operate Time, Max | ms | 30 | |
| Release Time, Max | ms | 8 | |
| Operating Temperature Ambient | °C | -55~125 | |
| Shock, 1/2 Sine11ms (Peak) | G's | 50 | |
| Vibration, Sine (10-2000 Hz Peak) | G's | 10 | |
| Mechanical Life | Cycles | 1 million | |
| Weight | g | 300 | |
Coil Rating
| COIL RATINGS | |
| Nominal, Volts dc | 24 |
| Pick-up, Volts dc, Max | 16 |
| Drop-Out, Volts dc, Min | 1-10 |
| Coil Resistance (Ω±10%) | 190 |
※ Ratings listed are for 25°C
