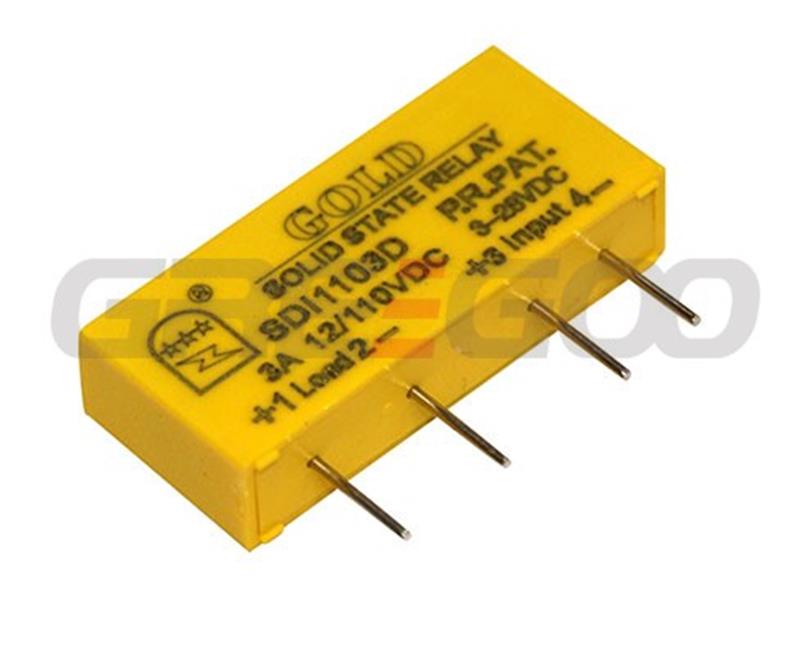

1A to 8A DC SSR
Optical isolation between input and output loops.
Control signal and TTL logic interface.
Transistor output with small through-state voltage drop and fast switching speed.
Greater than 2000V isolation voltage.
Welded lead structure, small size, easy installation.
The product is mainly used for isolation control of weak and strong power in industrial automation also can be used as the driving stage of various high power output devices and small power appliances. Such as electric motor, solenoid pilot actuated valve, power supply and other non-contact switch control.
| MODEL | RATED CURRENT | VOLTAGE RANGE | CONTROL |
| GDZ01-1100ZD1 | 1A | 100VDC | 3-15VDC |
| GDZ01-2100ZD1 | 2A | 100VDC | 3-15VDC |
| GDZ01-3100ZD1 | 3A | 100VDC | 3-15VDC |
| GDZ01-1100ZD3 | 1A | 100VDC | 18-32VDC |
| GDZ01-2100ZD3 | 2A | 100VDC | 18-33VDC |
| GDZ01-3100ZD3 | 3A | 100VDC | 18-34VDC |
| GDZ01-1200ZD1 | 1A | 200VDC | 3-15VDC |
| GDZ01-2200ZD1 | 2A | 200VDC | 3-15VDC |
| GDZ01-3200ZD1 | 3A | 200VDC | 3-15VDC |
| GDZ01-1200ZD3 | 1A | 200VDC | 18-32VDC |
| GDZ01-2200ZD3 | 2A | 200VDC | 18-33VDC |
| GDZ01-3200ZD3 | 3A | 200VDC | 18-34VDC |
| GDZ01-1400ZD1 | 1A | 400VDC | 3-15VDC |
| GDZ01-2400ZD1 | 2A | 400VDC | 3-15VDC |
| GDZ01-3400ZD1 | 3A | 400VDC | 3-15VDC |
| GDZ01-1400ZD3 | 1A | 400VDC | 18-32VDC |
| GDZ01-2400ZD3 | 2A | 400VDC | 18-33VDC |
| GDZ01-3400ZD3 | 3A | 400VDC | 18-34VDC |
| GDZ03-1100ZD1 | 1A | 100VDC | 3-15VDC |
| GDZ03-2100ZD1 | 2A | 100VDC | 3-15VDC |
| GDZ03-3100ZD1 | 3A | 100VDC | 3-15VDC |
| GDZ03-1100ZD3 | 1A | 100VDC | 18-32VDC |
| GDZ03-2100ZD3 | 2A | 100VDC | 18-33VDC |
| GDZ03-3100ZD3 | 3A | 100VDC | 18-34VDC |
| GDZ03-1200ZD1 | 1A | 200VDC | 3-15VDC |
| GDZ03-2200ZD1 | 2A | 200VDC | 3-15VDC |
| GDZ03-3200ZD1 | 3A | 200VDC | 3-15VDC |
| GDZ03-1200ZD3 | 1A | 200VDC | 18-32VDC |
| GDZ03-2200ZD3 | 2A | 200VDC | 18-33VDC |
| GDZ03-3200ZD3 | 3A | 200VDC | 18-34VDC |
| GDZ03-1400ZD1 | 1A | 400VDC | 3-15VDC |
| GDZ03-2400ZD1 | 2A | 400VDC | 3-15VDC |
| GDZ03-3400ZD1 | 3A | 400VDC | 3-15VDC |
| GDZ03-1400ZD3 | 1A | 400VDC | 18-32VDC |
| GDZ03-2400ZD3 | 2A | 400VDC | 18-33VDC |
| GDZ03-3400ZD3 | 3A | 400VDC | 18-34VDC |
| GDZ05-5100ZD3 | 5A | 100VDC | 3-32VDC |
| GDZ05-8100ZD3 | 8A | 100VDC | 3-32VDC |
| GDZ05-5200ZD3 | 5A | 200VDC | 3-32VDC |
| GDZ05-8200ZD3 | 8A | 200VDC | 3-32VDC |
| GDZ05-5400ZD3 | 5A | 400VDC | 3-32VDC |
| GDZ05-8400ZD3 | 8A | 400VDC | 3-32VDC |
|
|
GDZ01 |
GDZ03 |
|
|
Input |
Control voltage |
3-15Vdc or 18-32Vdc |
|
|
Control current |
1.8-16mA or 7-18mA |
||
|
Operating indication |
None |
||
|
On/Off time |
0.2 mS |
||
|
Output |
Maximum output Voltage |
100VDC 200VDC 400VDC |
|
|
Maximum output Current |
1A 2A 3A |
||
|
On-state voltage drop |
≤1.3 V |
||
|
Off-state voltage |
≥ 100 V ≥ 200 V ≥ 400 V |
||
|
Performance |
Isolation voltage |
2000 V |
|
|
Insulation voltage |
2000 V |
||
|
Insulation resistance |
100 MΩ |
||
|
Operating temperature |
－20～75 ℃ |
||
|
Load currenttipsof safety |
2.5-3 times for resistive load, 3-6 times for inductive load |
||
|

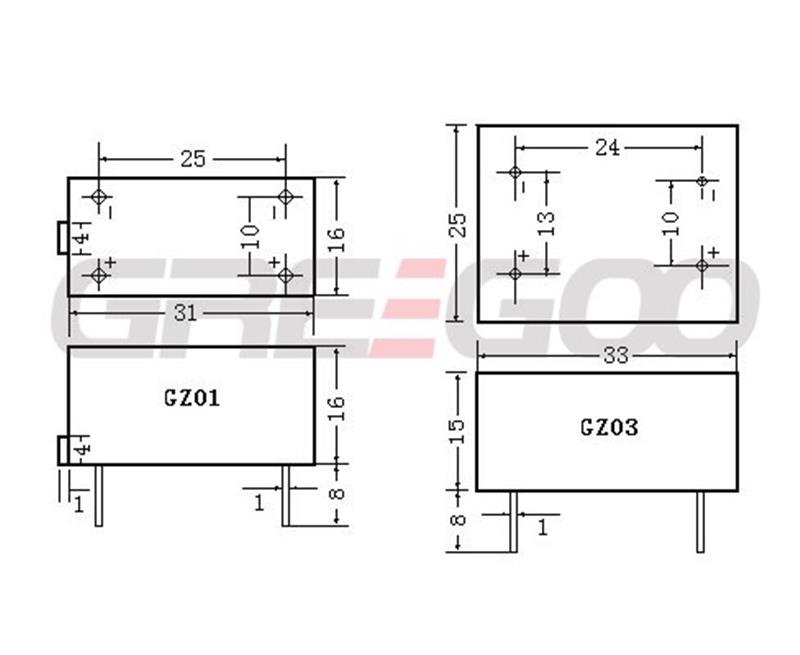

Physical dimension |
31×16×16mm3（H-1） |
33×25×15mm3（H-2） |
|
|
|
GDZ04 |
GDZ05 |
|
|
Input |
Control voltage |
3-15Vdc or 18-32Vdc |
3-32 Vdc |
|
Control current |
1.8-16mA or 7-18mA |
5-20mA |
|
|
Operating indication |
None |
LED |
|
|
On/Off time |
0.5 mS |
||
|
Output |
Maximum output Voltage |
100VDC 200VDC 400VDC |
|
|
Maximum output Current |
1A 2A 3A |
5A |
|
|
On-state voltage drop |
≤1.5 V |
||
|
Off-state voltage |
≥ 100 V ≥ 200 V ≥ 400 V |
||
|
Performance |
Isolation voltage |
2000 V |
|
|
Insulation voltage |
2000 V |
||
|
Insulation resistance |
100 MΩ |
||
|
Operating temperature |
－20～75 ℃ |
||
|
Load currenttipsof safety |
2.5-4 times for resistive load, 4-8 times for inductive load |
||
|
Physical dimension |
24×22×8mm3（H-4） |
43×27×12mm3（H-3） |
|
