Thyristor Diode Module (Y4-M6 package)
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleThyristor Diode Module (Y4-M6 package)

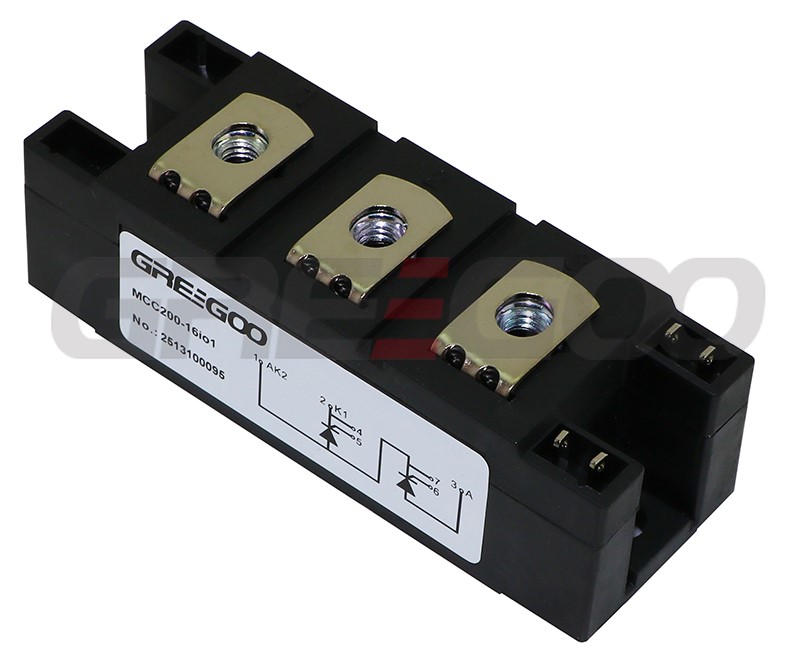

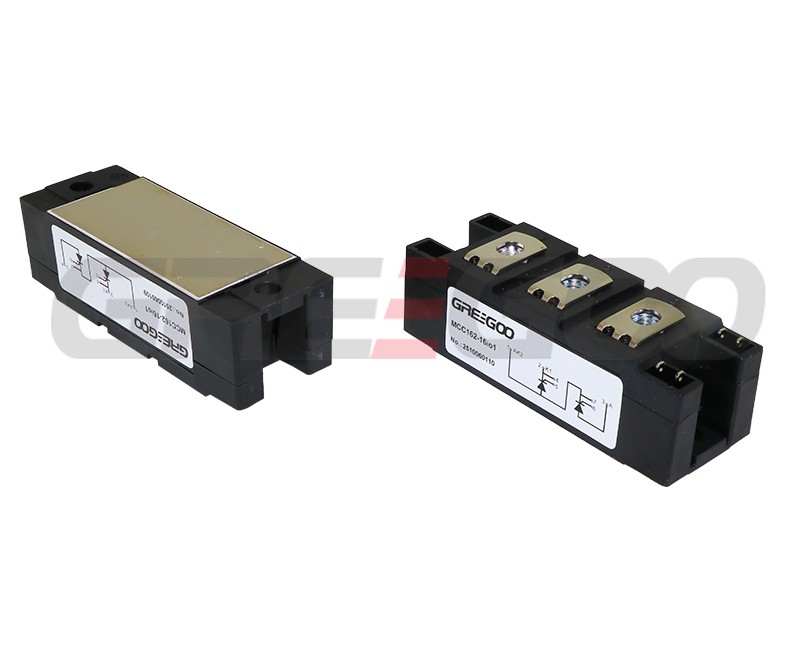

MCC132 MCC162 MCC200 Dual Thyristor Module
Thyristor Diode Module (Y4-M6 package)
| Model |
IT(AV) (A) |
VRRM (V) |
ITSM (A) |
I2t (kA2·s) |
V(TO) (V) |
rT (m?) |
Tvj max (ºC) |
Rth(j-c) (ºC/W) |
Weight (g) |
Package |
| MCC132-08io1 | 130 | 800 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCC132-12io1 | 130 | 1200 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCC132-14io1 | 130 | 1400 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCC132-16io1 | 130 | 1600 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCC132-18io1 | 130 | 1800 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCC161-20io1 | 165 | 2000 | 6000 | 180 | 0.8 | 1.6 | 125 | 0.155 | 150 | Y4-M6 |
| MCC161-22io1 | 165 | 2200 | 6000 | 180 | 0.8 | 1.6 | 125 | 0.155 | 150 | Y4-M6 |
| MCC162-08io1 | 181 | 800 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCC162-12io1 | 181 | 1200 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCC162-14io1 | 181 | 1400 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCC162-16io1 | 181 | 1600 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCC162-18io1 | 181 | 1800 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCC200-14io1 | 261 | 1400 | 8000 | 320 | 0.8 | 1.4 | 125 | 0.13 | 150 | Y4-M6 |
| MCC200-16io1 | 261 | 1600 | 8000 | 320 | 0.8 | 1.4 | 125 | 0.13 | 150 | Y4-M6 |
| MCC200-18io1 | 261 | 1800 | 8000 | 320 | 0.8 | 1.4 | 125 | 0.13 | 150 | Y4-M6 |
MCD132 MCD162 MCD200 Thyristor Diode Module
| Model | IT(AV) (A) |
VRRM (V) |
ITSM (A) |
I2t (kA2·s) |
V(TO) (V) |
rT (m?) |
Tvj max (ºC) |
Rth(j-c) (ºC/W) |
Weight (g) |
Package (mm) |
| MCD132-08io1 | 130 | 800 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCD132-12io1 | 130 | 1200 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCD132-14io1 | 130 | 1400 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCD132-16io1 | 130 | 1600 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCD132-18io1 | 130 | 1800 | 4750 | 112.8 | 0.8 | 1.5 | 125 | 0.23 | 150 | Y4-M6 |
| MCD162-08io1 | 181 | 800 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCD162-12io1 | 181 | 1200 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCD162-14io1 | 181 | 1400 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCD162-16io1 | 181 | 1600 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCD162-18io1 | 181 | 1800 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCD162-16io1B | 181 | 1600 | 6000 | 180 | 0.88 | 1.15 | 125 | 0.155 | 150 | Y4-M6 |
| MCD200-14io1 | 216 | 1400 | 8000 | 320 | 0.8 | 1.4 | 125 | 0.13 | 150 | Y4-M6 |
| MCD200-16io1 | 216 | 1600 | 8000 | 320 | 0.8 | 1.4 | 125 | 0.13 | 150 | Y4-M6 |
| MCD200-18io1 | 216 | 1800 | 8000 | 320 | 0.8 | 1.4 | 125 | 0.13 | 150 | Y4-M6 |
MDD142 MDD172 MDD200 Dual Diode Module
| Model No. |
IFAV（A） | Tc ℃ |
VRRM V |
IFSM A |
I²t kA2·s |
V(TO) V |
rT m? |
Tvj max ºC |
Rth(j-c) ºC/W |
Weight g |
Package | Size (L×B×H) mm |
| MDD142-08N1 | 165 | 100 | 800 | 4700 | 110.5 | 0.8 | 1.3 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD142-12N1 | 165 | 100 | 1200 | 4700 | 110.5 | 0.8 | 1.3 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD142-14N1 | 165 | 100 | 1400 | 4700 | 110.5 | 0.8 | 1.3 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD142-16N1 | 165 | 100 | 1600 | 4700 | 110.5 | 0.8 | 1.3 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD142-18N1 | 165 | 100 | 1800 | 4700 | 110.5 | 0.8 | 1.3 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD172-08N1 | 190 | 100 | 800 | 6600 | 217.8 | 0.8 | 0.8 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD172-12N1 | 190 | 100 | 1200 | 6600 | 217.8 | 0.8 | 0.8 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD172-14N1 | 190 | 100 | 1400 | 6600 | 217.8 | 0.8 | 0.8 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD172-16N1 | 190 | 100 | 1600 | 6600 | 217.8 | 0.8 | 0.8 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD172-18N1 | 190 | 100 | 1800 | 6600 | 217.8 | 0.8 | 0.8 | 150 | 0.21 | 76 | Y4-M6 | 94x34x30 |
| MDD200-14N1 | 224 | 100 | 1400 | 10500 | 551.3 | 0.8 | 0.6 | 150 | 0.13 | 150 | Y4-M6 | 94x34x30 |
| MDD200-16N1 | 224 | 100 | 1600 | 10500 | 551.3 | 0.8 | 0.6 | 150 | 0.13 | 150 | Y4-M6 | 94x34x30 |
| MDD200-18N1 | 224 | 100 | 1800 | 10500 | 551.3 | 0.8 | 0.6 | 150 | 0.13 | 150 | Y4-M6 | 94x34x30 |
| MDD200-22N1 | 224 | 100 | 2200 | 10500 | 551.3 | 0.8 | 0.6 | 150 | 0.13 | 150 | Y4-M6 | 94x34x30 |
