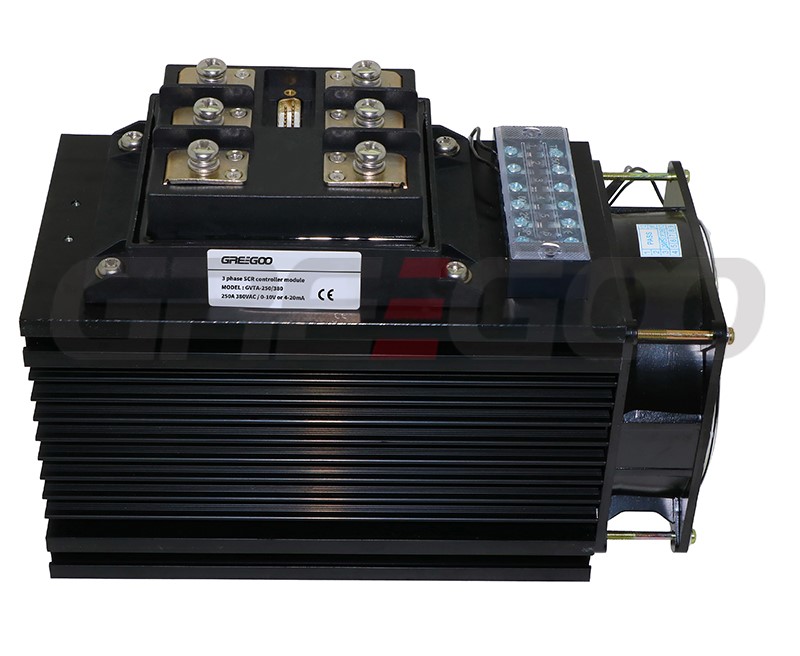

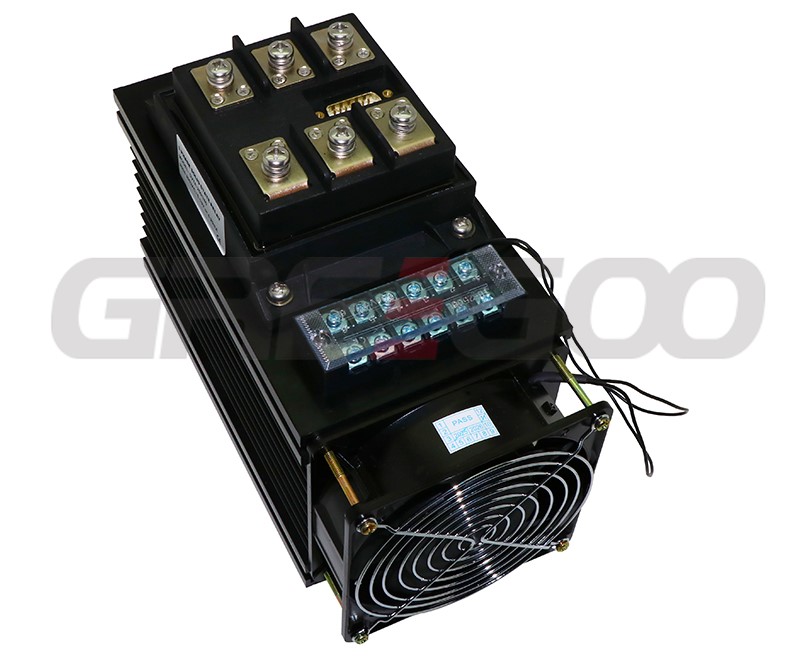

SCR Controller for Electric Heater (3 phase)
| Model No. | Description | Max.Current |
Load Voltage Range |
Control Mode | Housing | Port | Indicator |
| TVR-JL-2038010 | 3 phase AC Switching Module | 20A | 0-380VAC | 0-10V | G59 | 5 pins | LED |
| TVR-JL-2038020 | 3 phase AC Switching Module | 20A | 0-380VAC | 4-20mA | G59 | 5 pins | LED |
| TVR-JL-4038010 | 3 phase AC Switching Module | 40A | 0-380VAC | 0-10V | G59 | 5 pins | LED |
| TVR-JL-4038020 | 3 phase AC Switching Module | 40A | 0-380VAC | 4-20mA | G59 | 5 pins | LED |
| TVR-JL-7538010 | 3 phase AC Switching Module | 75A | 0-380VAC | 0-10V | G59 | 5 pins | LED |
| TVR-JL-7538020 | 3 phase AC Switching Module | 75A | 0-380VAC | 4-20mA | G59 | 5 pins | LED |
|
Part numbers |
TVR-JL-20A
TVR-JL-40A
TVR-JL-75A
|
TVR-JL-100A TVR-JL-150A |
TVR-JL-220A TVR-JL-260A |
TVR-JL-300A TVR-JL-350A |
TVR-JL-480A
TVR-JL-600A
TVR-JL-800A
TVR-JL-1000A
|
|
Case code |
G-59 |
G-73 |
G-105 |
G-135 |
G-230 |
|
Control PSU power |
3.5W |
3.5W |
3.5W |
4W |
8W |
|
Control port |
5 PIN |
9 PIN |
15 PIN |
||
|
Power status indicator |
LED |
NO |
|||
|
Control method |
0-10Vdc or 4 - 20mA |
0-10Vdc/4-20mA |
|||
|
Load voltage range |
380Vac:0-380Vac |
||||
|
Rated current |
20A、40A、75A、100A、150A、220A、260A、300A、350A、480A、600A、800A、1000A |
||||
|
Control power supply |
12Vdc-24Vdc |
||||
|
Voltage unbalance |
<2% |
||||
|
Voltage instability |
<0.5% |
||||
|
SCR Chip
Forward and Reverse
Peak Voltage Withstand
|
≥1800V |
||||
|
di/dt |
500A/μS |
||||
|
dv/dt |
3000V/μS |
||||
|
Working Environment Temperature |
-25℃~45℃ |
||||
