SKN70 SKR70 Stud Diode
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||
| SKN70 | 70 | 1.45 | 210 | 115 | 200-1600 | ≤12 | ≤0.8 | ≤2.0 | 0.05 | SKD5L |
| SKR70 | 70 | 1.45 | 210 | 115 | 200-1600 | ≤12 | ≤0.8 | ≤2.0 | 0.05 | |

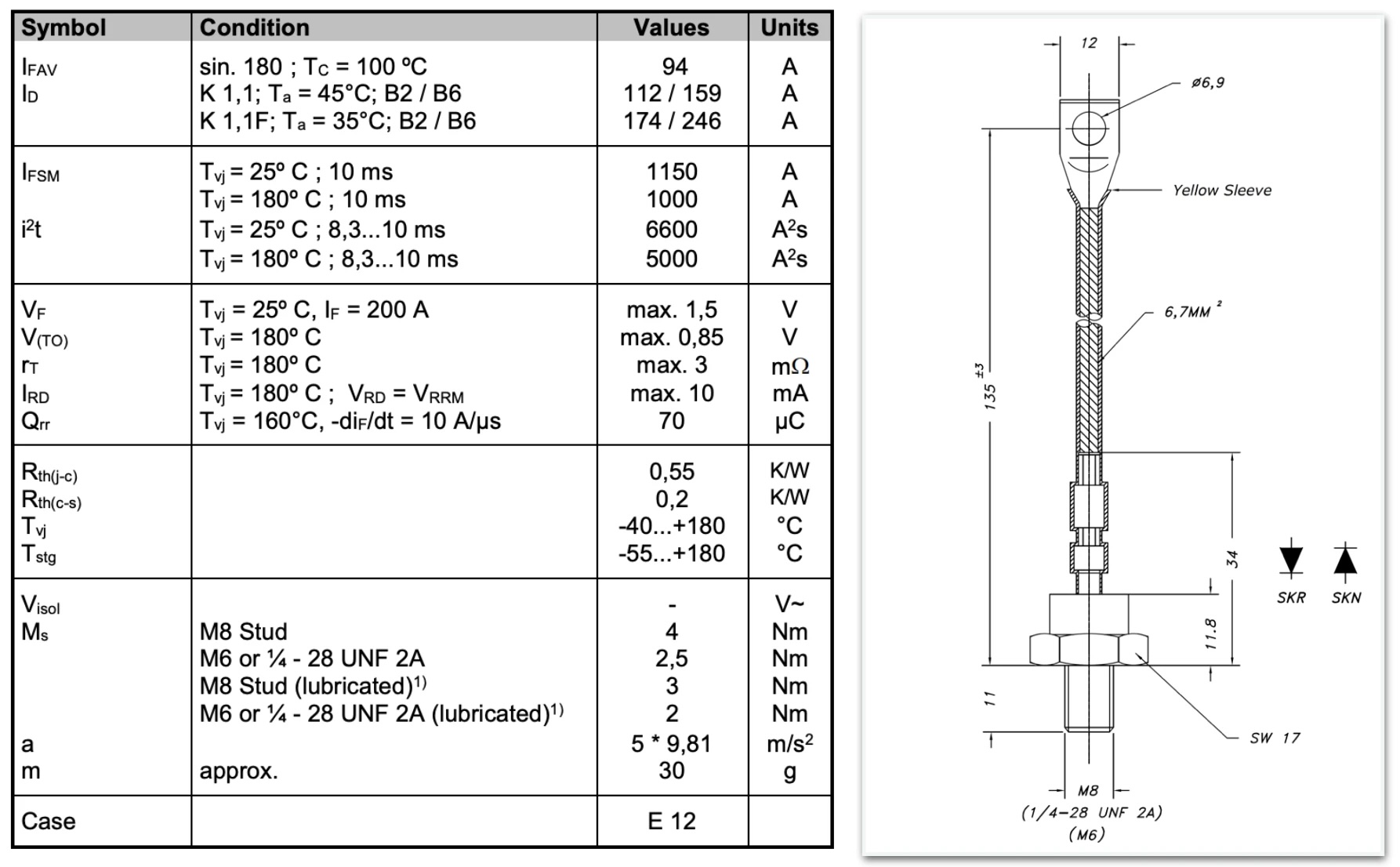

Specification
