Stud Diode 200A 250A 300A
FEATURES
• Alloy diode
• Popular series for rough service
• Stud cathode and stud anode version
• Designed and qualified for industrial level
TYPICAL APPLICATIONS
• Welders
• Power supplies
• Motor controls
• Battery chargers
• General industrial current rectification
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||
| 200U |

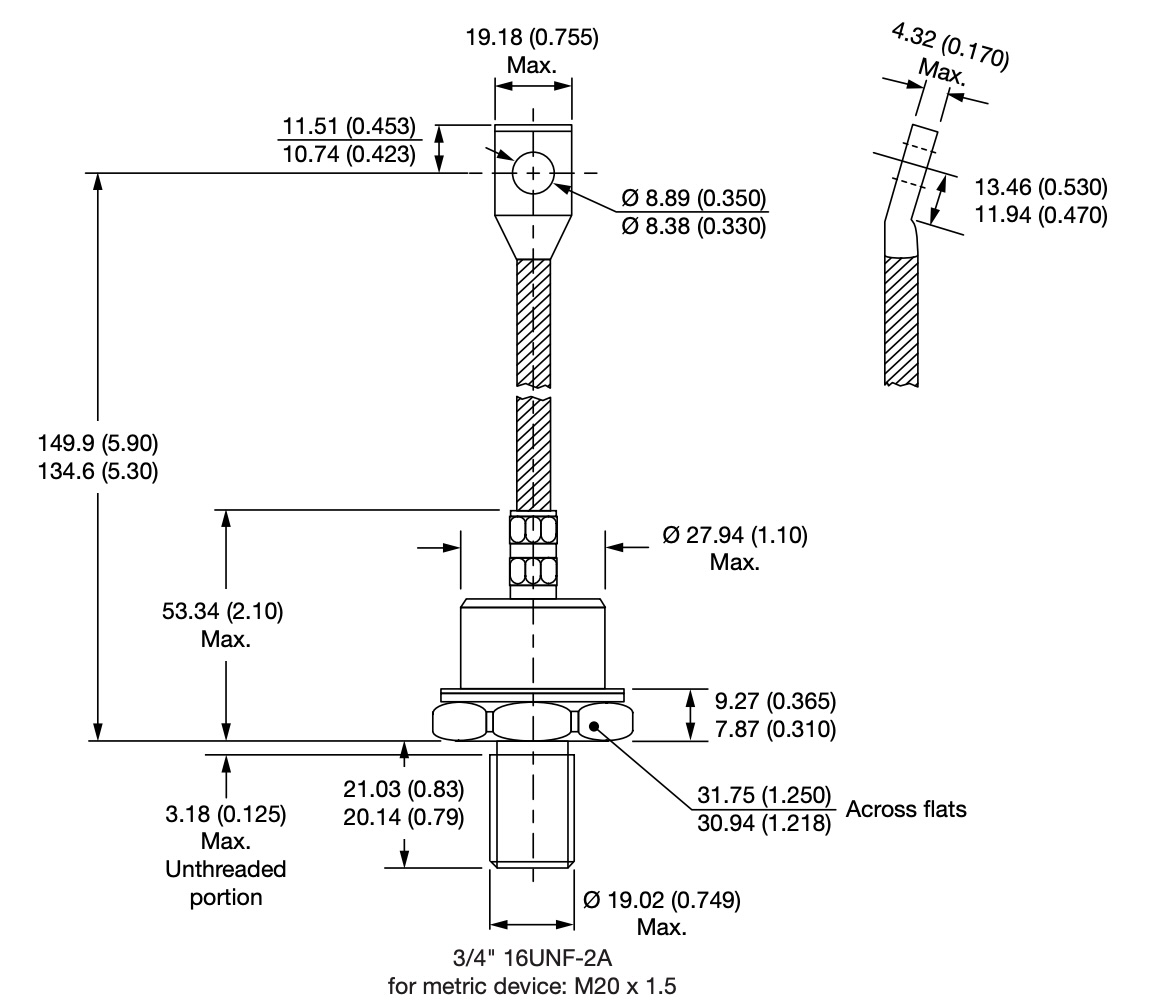

200 | 1.3 | 600 | 320 | 200-1800 | ≤20 | ≤0.2 | ≤12 | 0.25 | DO-9 |
| 250U |
250 | 1.35 | 750 | 400 | 200-1800 | ≤20 | ≤0.15 | ≤25 | 0.25 | |
| 300U |
300 | 1.35 | 900 | 480 | 200-1800 | ≤20 | ≤0.15 | ≤25 | 0.25 | |
| 200UR |
200 | 1.3 | 600 | 320 | 200-1800 | ≤20 | ≤0.2 | ≤12 | 0.25 | DO-9 |
| 250UR |
250 | 1.35 | 750 | 400 | 200-1800 | ≤20 | ≤0.15 | ≤25 | 0.25 | |
| 300UR |
300 | 1.35 | 900 | 480 | 200-1800 | ≤20 | ≤0.15 | ≤25 | 0.25 | |
