RT12 660V/35A~100A Semiconductor Fuse
Home Products Industrial Control & ProtectionSemiconductor FusesRT12 660V/35A~100A Semiconductor Fuse
Product Details

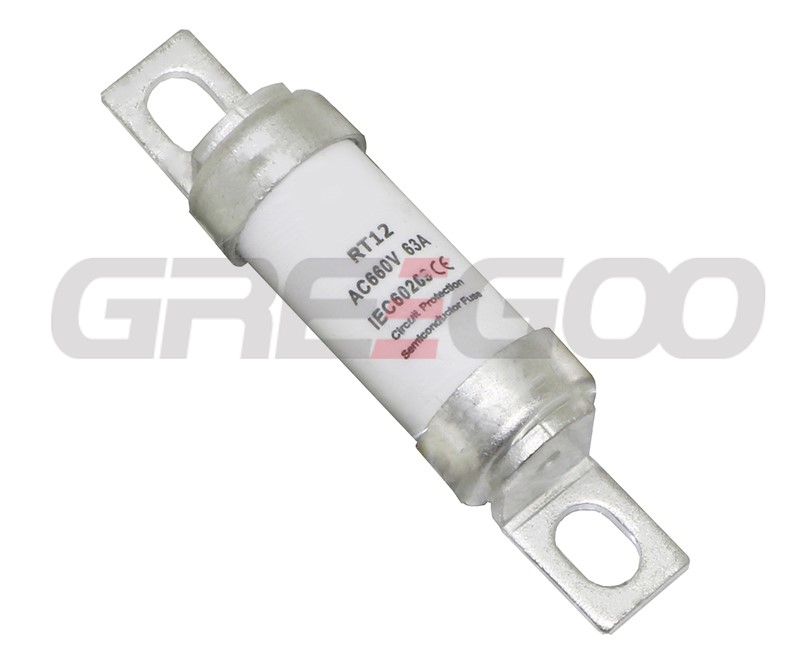

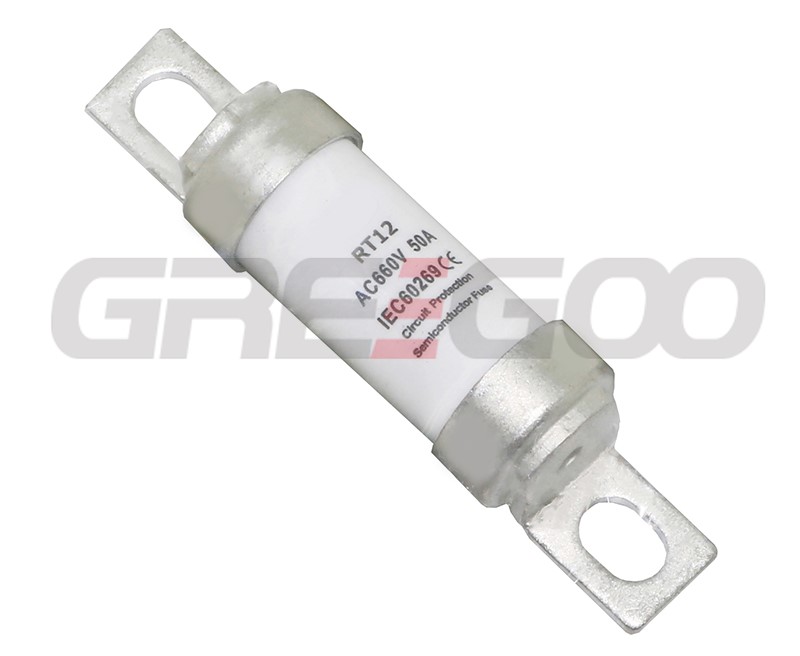

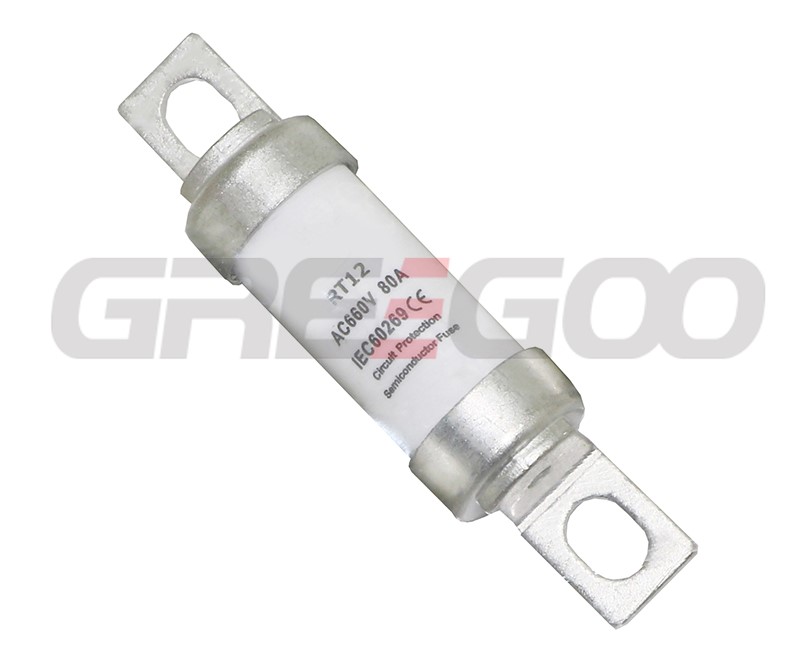

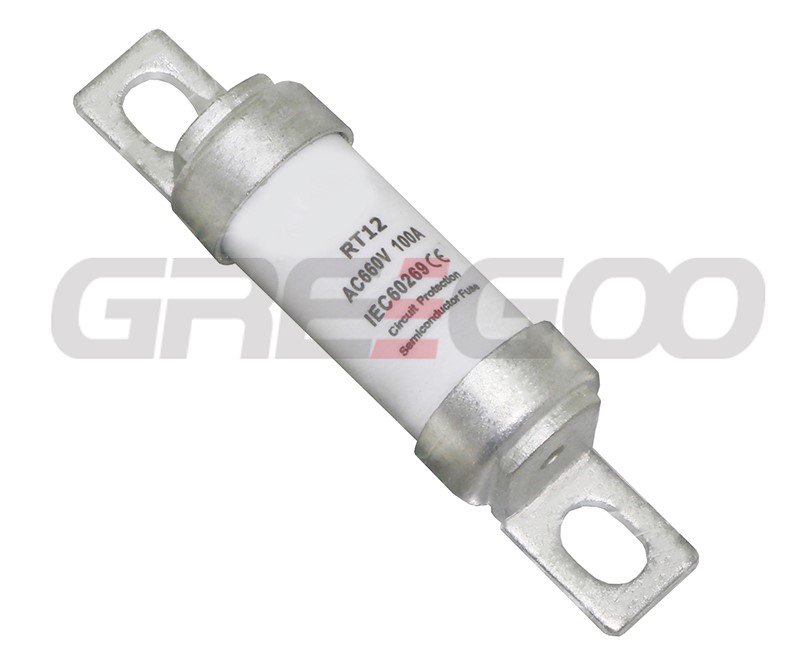

RT12 660V/35A~100A Semiconductor Fuse
Usage and range
RT12 Series stud-connection fuse is applicable for AC 50Hz or 60Hz, rated voltage 660V, rated current 100A and the below industrial electrical device, which for over-load and short-circuit protection.
Specification
| Model | Rated voltage (V) | Rated current (A) | Rated breaking capacity | Rated consumption power (W) | Rated frequency |
| RT12 660V/35A | AC 660V | 35, 40, 50, 63, 70, 80, 100 | 50 KA | ≤9.1 | 50Hz or 60Hz |
| RT12 660V/40A | |||||
| RT12 660V-50A | |||||
| RT12 660V-63A | |||||
| RT12 660V-70A | |||||
| RT12 660V-80A | |||||
| RT12 660V-100A |
