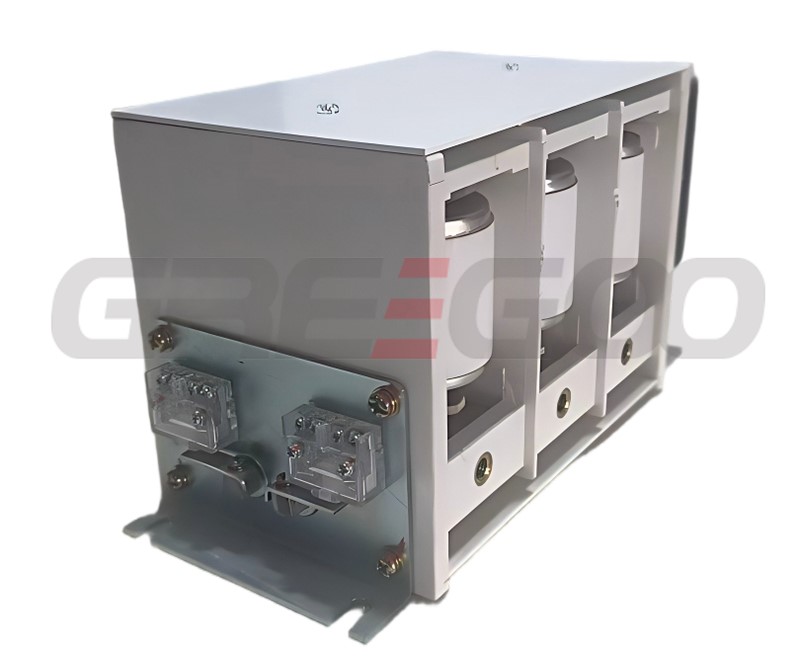

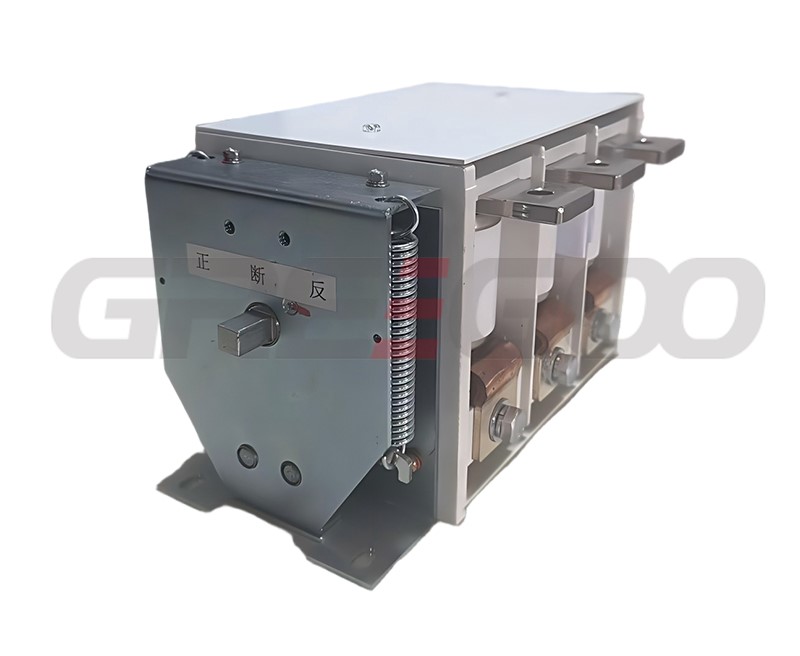

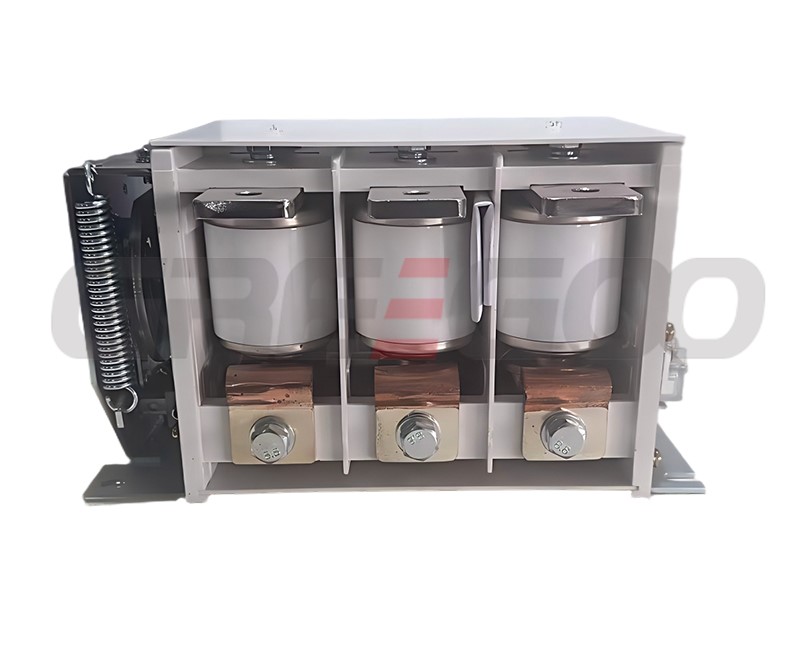

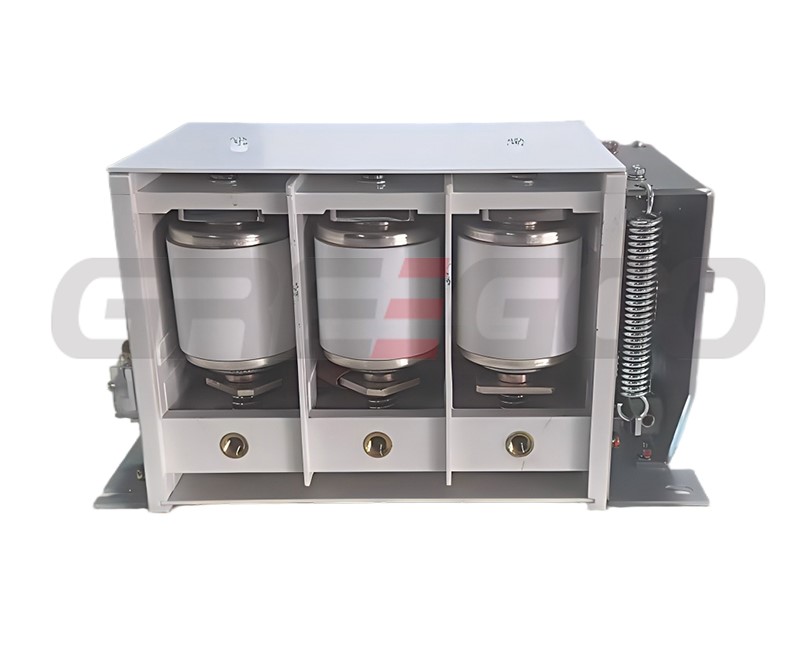

Vacuum isolating phase change switch 630A 1.14KV
Home Products Vacuum ContactorVacuum Isolating Phase Change SwitchVacuum isolating phase change switch 630A 1.14KV
Technical Specification
Vacuum isolating phase change switch 630A 1.14KV
Technical Specification
| Part Numbers | GHZ-630A/1.14KV | |
|---|---|---|
| Rated Current | A | 630 |
| Rated Voltage | kV | 1.14 |
| Rated Short Circuit Breaking Current | kA | 6.3 |
| Rated Short Time Withstand Current (2S) | kA | 5 |
| Rated Peak Withstand Current | kA | 12.5 |
| Rated Short Time Frequency Withstand Voltage | kV | 4.2 |
| Rated Short Time Frequency Withstand Voltage (Fracture) | kV | 10 |
| Mechanical Life | Times | 6000 |
| Weight | kg | 19 |
| Auxiliary Switch | - | 1 NO 1 NC |
| Auxiliary Contact Capacity | - | AC-15: Ue: AC380V, Ie: 0.7A DC-13: Ue: DC220V, Ie: 0.1A |

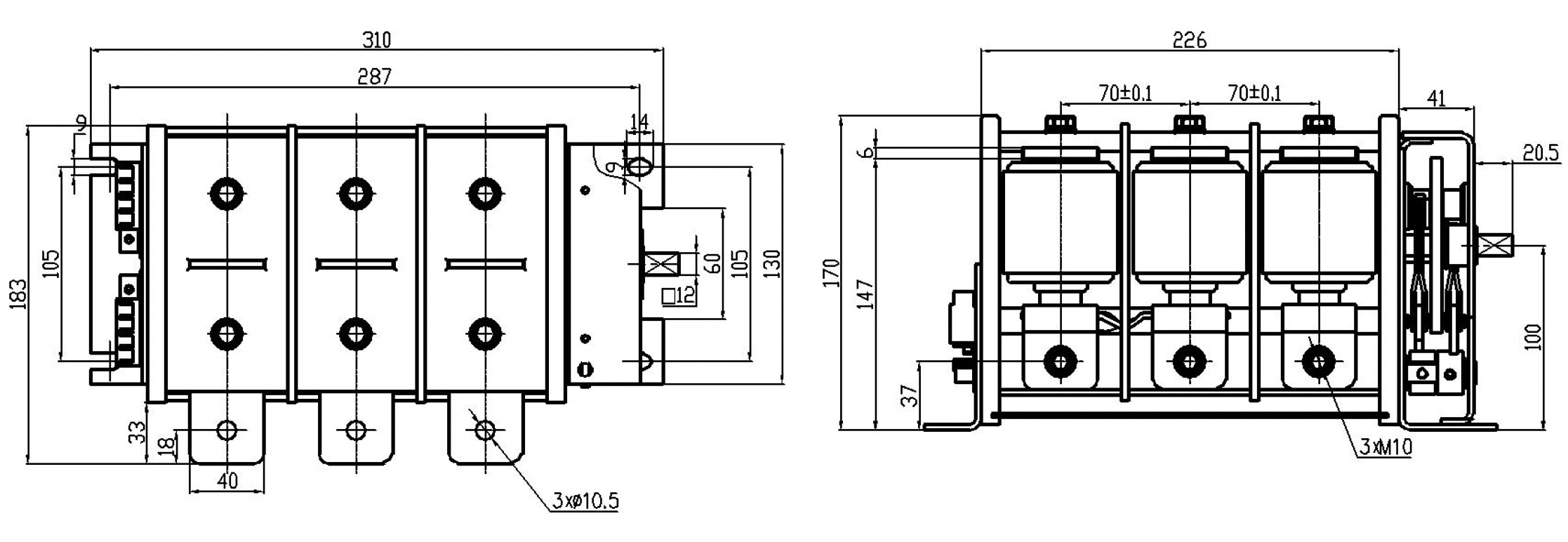

Dimension
