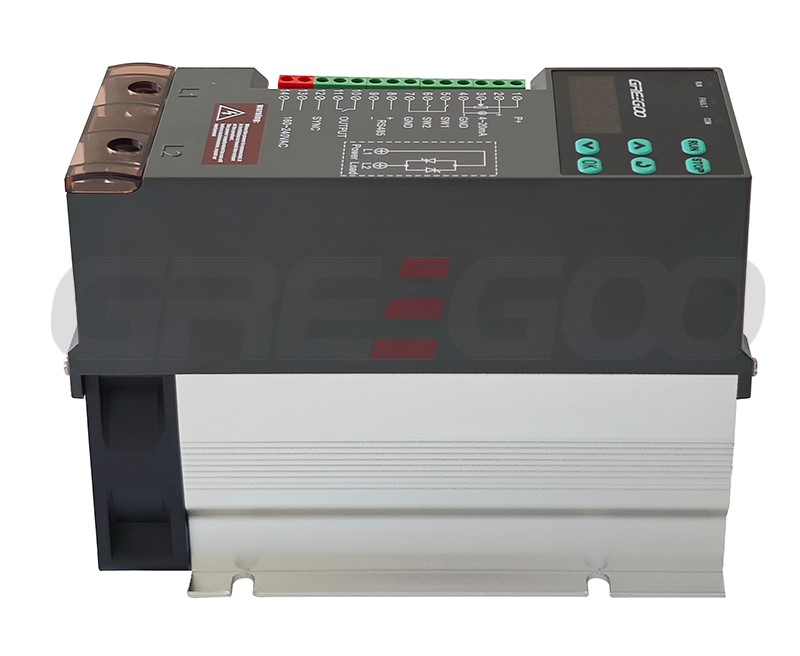

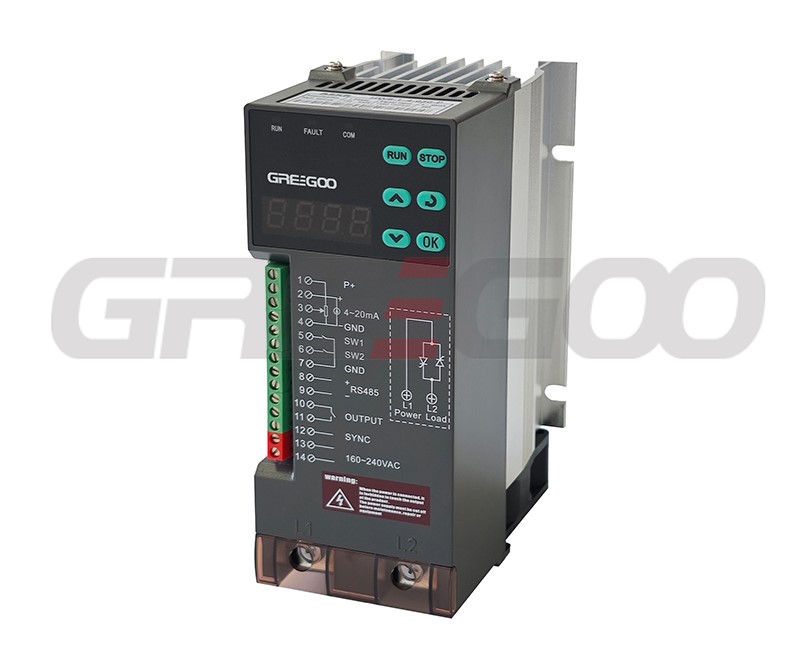

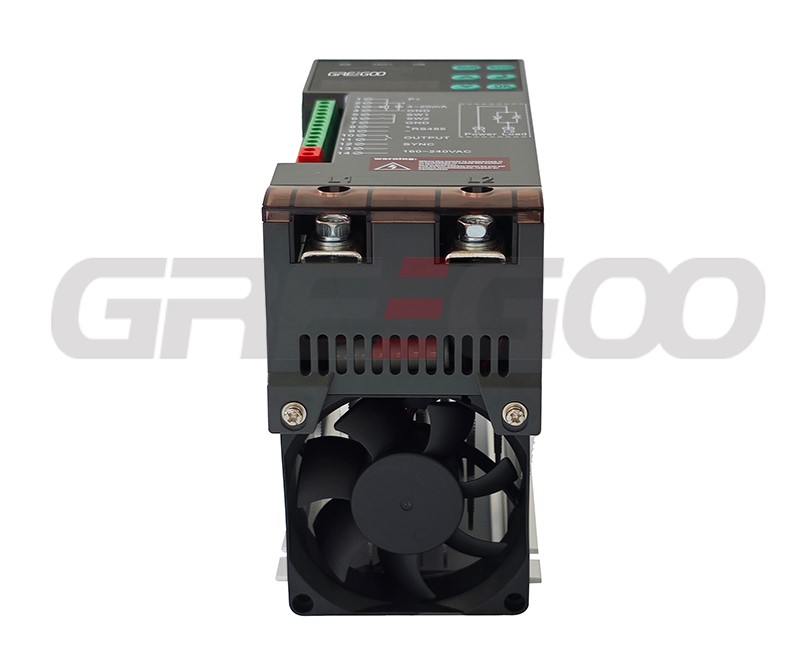

Single phase advanced SCR regulators with phase angle constant current mode
· It adopts control technology of Microcontroller Unit (MCU) embedded single-chip and PID closed-loop, with 100% linear output.
· It supports digital display of input, output, current, voltage, and power.
· It has a dual-channel input signal design, supporting input of both current and voltage signals.
· It supports multiple control modes, including constant voltage, constant current, constant power, open-loop control, and cycle control.
· It is equipped with multiple protection functions, such as phase loss protection, overcurrent protection, overtemperature protection, and open-circuit protection.
· It features MODBUS RTU communication, allowing the host computer to directly control the output level.
| Model | Phase | Input voltage | Current | Load Power (KW) |
Weight (kg) |
Control mode | Control signal | |
| 220V | 380V | |||||||
| HGW8-1-4-030-C | 1Ph | 330-440V | 30 | 5.2 | 9.1 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-040-C | 1Ph | 330-440V | 40 | 7.0 | 12.1 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-050-C | 1Ph | 330-440V | 50 | 8.8 | 15.2 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-060-C | 1Ph | 330-440V | 60 | 10.5 | 18.2 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-075-C | 1Ph | 330-440V | 75 | 13.2 | 22.8 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-080-C | 1Ph | 330-440V | 80 | 14.0 | 24.3 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-090-C | 1Ph | 330-440V | 90 | 15.8 | 27.3 | 1.2 | Phase angle constant current mode | Selectable |

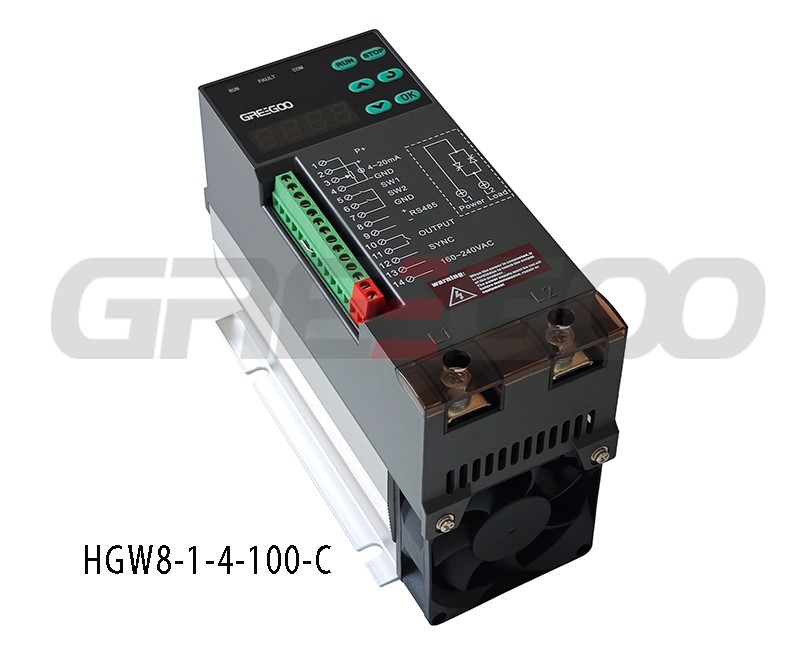

| HGW8-1-4-100-C | 1Ph | 330-440V | 100 | 17.6 | 30.4 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-125-C | 1Ph | 330-440V | 125 | 22.0 | 38.0 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-4-150-C | 1Ph | 330-440V | 150 | 26.4 | 45.6 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-030-C | 1Ph | 110-220V | 30 | 5.2 | 9.1 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-040-C | 1Ph | 110-220V | 40 | 7.0 | 12.1 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-050-C | 1Ph | 110-220V | 50 | 8.8 | 15.2 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-060-C | 1Ph | 110-220V | 60 | 10.5 | 18.2 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-075-C | 1Ph | 110-220V | 75 | 13.2 | 22.8 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-080-C | 1Ph | 110-220V | 80 | 14.0 | 24.3 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-090-C | 1Ph | 110-220V | 90 | 15.8 | 27.3 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-100-C | 1Ph | 110-220V | 100 | 17.6 | 30.4 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-125-C | 1Ph | 110-220V | 125 | 22.0 | 38.0 | 1.2 | Phase angle constant current mode | Selectable |
| HGW8-1-2-150-C | 1Ph | 110-220V | 150 | 26.4 | 45.6 | 1.2 | Phase angle constant current mode | Selectable |
Control signal selectable: 4-20mA/0-5V/0-10V/Pot
