Single phase and three phase Solid state relay with heatsink

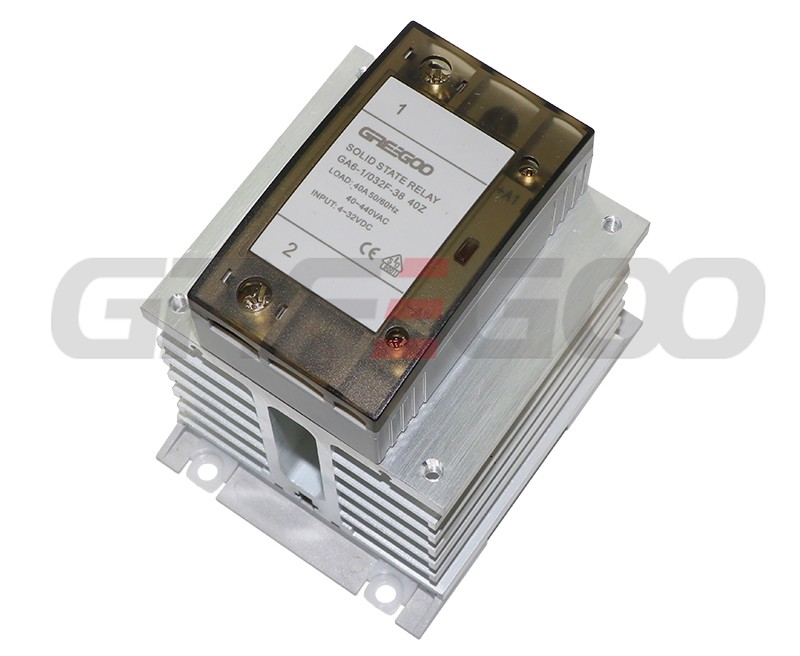

Air cooled solid state relay assemblies
| Model No. | Control Voltage | Load Voltage | Rated Current | Heatsink | Dimensions |
| GA6-1/032F-3810Z | 4-32VDC | 40-440VAC | 10A | HH-051 | 100x24x107 |
| GA6-1/032F-3815Z | 4-32VDC | 40-440VAC | 15A | HH-051 | 100x24x107 |
| GA6-1/032F-3820Z | 4-32VDC | 40-440VAC | 20A | HH-052 | 100X48X107 |
| GA6-1/032F-3825Z | 4-32VDC | 40-440VAC | 25A | HH-052 | 100X48X107 |
| GA6-1/032F-3830Z | 4-32VDC | 40-440VAC | 30A | HH-052 | 100X48X107 |
| GA6-1/032F-3840Z | 4-32VDC | 40-440VAC | 40A | HH-055 | 100X80X107 |
| GA6-1/032F-3860Z | 4-32VDC | 40-440VAC | 60A | HH-057 | 100X110X107 |
| GA6-1/032F-3880Z | 4-32VDC | 40-440VAC | 80A | HH-057 | 100X110X107 |
| GA6-1/250F-3820Z | 90-250VAC | 40-440VAC | 20A | HH-052 | 100X48X107 |
| GA6-1/250F-3825Z | 90-250VAC | 40-440VAC | 25A | HH-052 | 100X48X107 |
| GA6-1/250F-3830Z | 90-250VAC | 40-440VAC | 30A | HH-052 | 100X48X107 |
| GA6-1/250F-3840Z | 90-250VAC | 40-440VAC | 40A | HH-055 | 100X80X107 |
| GA6-1/250F-3860Z | 90-250VAC | 40-440VAC | 60A | HH-057 | 100X110X107 |
| GA6-1/250F-3880Z | 90-250VAC | 40-440VAC | 80A | HH-057 | 100X110X107 |
| GA6-1/032F-6060Z | 4-32VDC | 60-600VAC | 60A | HH-057 | 100X110X107 |
| GA6-1/032F-6080Z | 4-32VDC | 60-600VAC | 80A | HH-057 | 100X110X107 |
| GA6-1/250F-6060Z | 90-250VAC | 60-600VAC | 60A | HH-057 | 100X110X107 |
| GA6-1/250F-6080Z | 90-250VAC | 60-600VAC | 80A | HH-057 | 100X110X107 |
