SCR Voltage Regulator three phase 225A and 250A

Home Products SCR Power ControllerHGW3 Analog Indicator Basic typeSCR Voltage Regulator three phase 225A and 250A

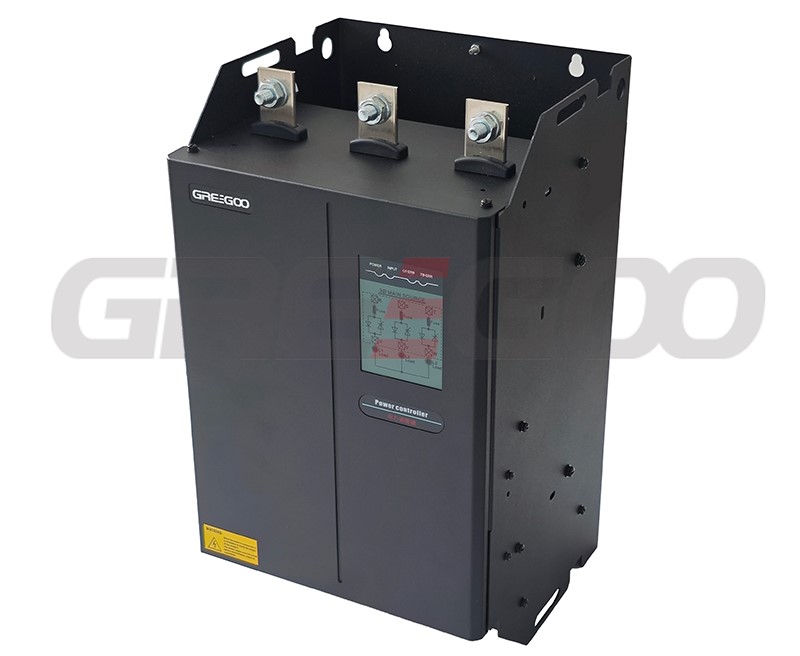

HGW3-4-4-225-P SCR Voltage Regulator front view

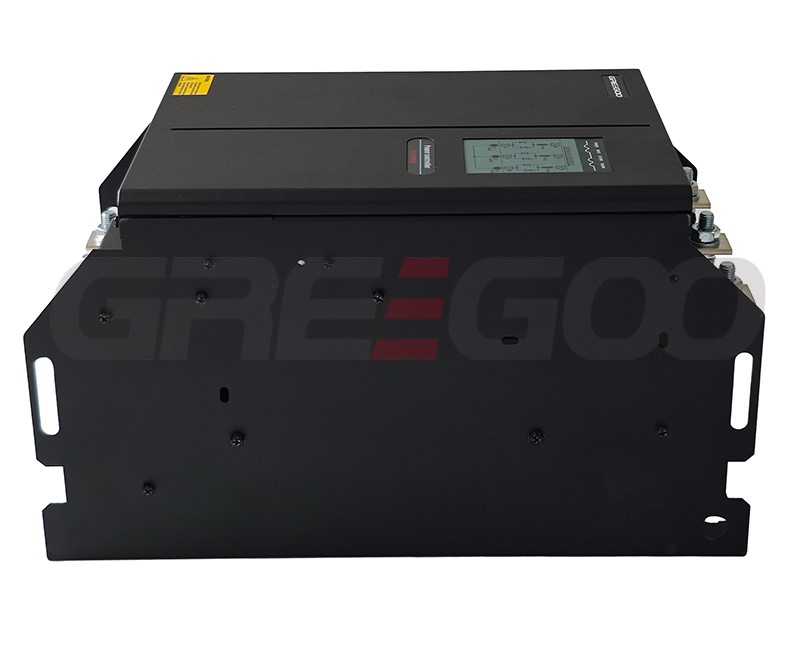

HGW3-4-4-225-P SCR Voltage Regulator side view

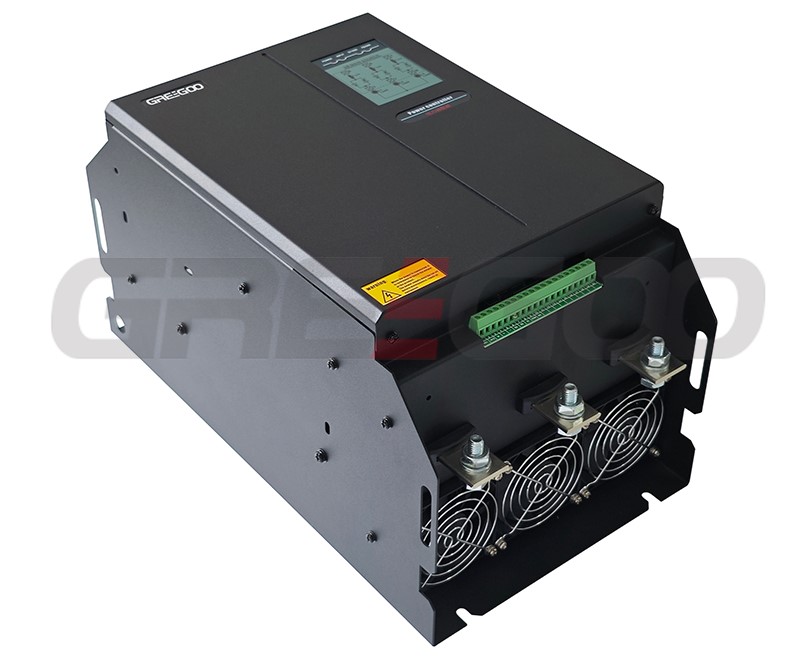

HGW3-4-4-225-P SCR Voltage Regulator side views

Specification

SCR Voltage Regulator three phase 225A and 250A

Mode	Phase	Input Voltage	Max. Current	Load(KW)		Weight (KG)	Control mode	Control signal
				220V	380V
HGW3-4-4-225-P	3PH	330-440V	225A	68	113	13	Phase Angle	4-20mA
HGW3-4-4-250-P	3PH	330-440V	250A	80	130	15	Phase Angle	4-20mA
HGW3-4-4-225-P1	3PH	330-440V	225A	68	113	13	Phase Angle	0-10V
HGW3-4-4-250-P1	3PH	330-440V	250A	80	130	15	Phase Angle	0-10V
HGW3-4-2-225-P	3PH	100-240V	225A	68	113	13	Phase Angle	4-20mA
HGW3-4-2-250-P	3PH	100-240V	250A	80	130	15	Phase Angle	4-20mA
HGW3-4-2-225-P1	3PH	100-240V	225A	68	113	13	Phase Angle	0-10V
HGW3-4-2-250-P1	3PH	100-240V	250A	80	130	15	Phase Angle	0-10V
HGW3-4-8-225-P	3PH	480V	225A	68	113	13	Phase Angle	4-20mA
HGW3-4-8-250-P	3PH	480V	250A	80	130	15	Phase Angle	4-20mA
HGW3-4-8-225-P1	3PH	480V	225A	68	113	13	Phase Angle	0-10V
HGW3-4-8-250-P1	3PH	480V	250A	80	130	15	Phase Angle	0-10V

Download

Thyristor Voltage Regulator Basic type HGW3 (PDF)
