SCR Power Regulator Three phase intelligent type HGW9

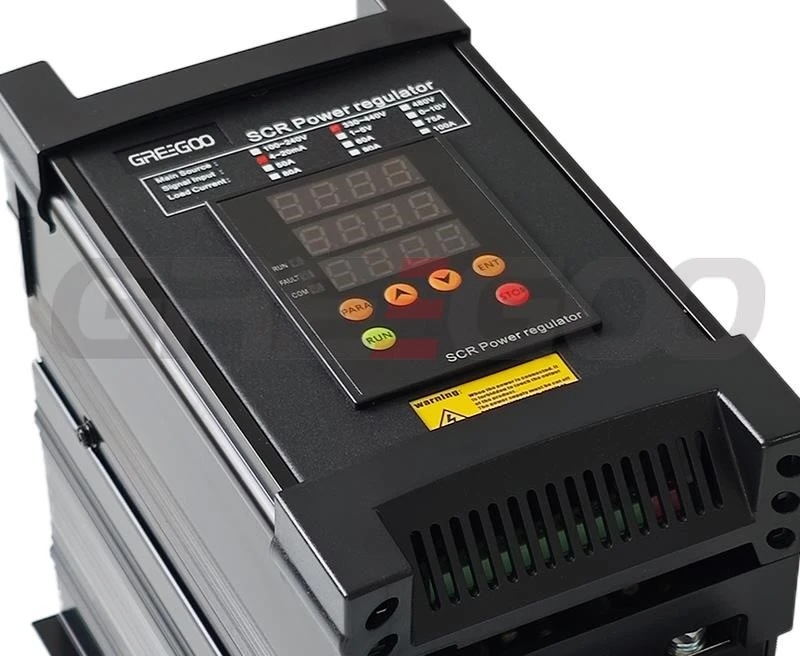

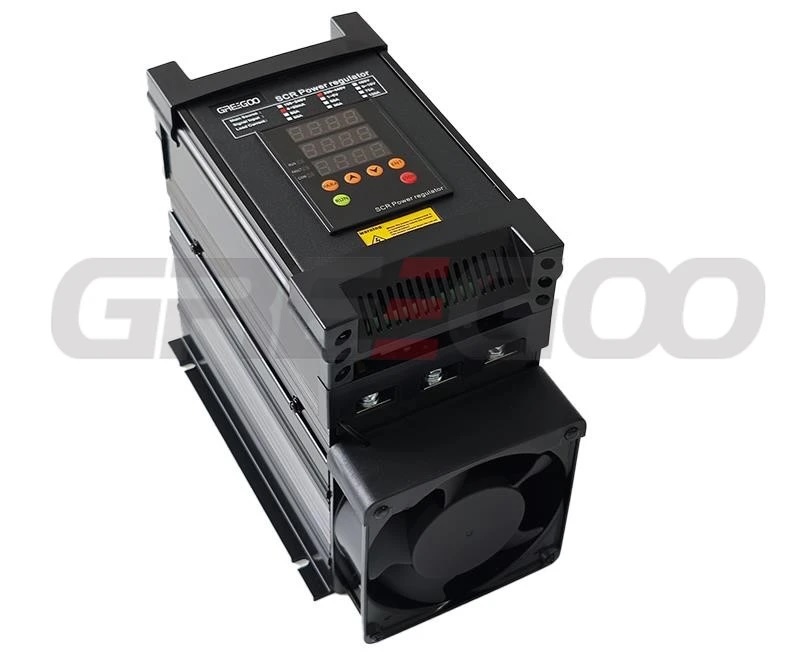

HGW9 Series Three-Phase Intelligent Power Regulator

Product Features

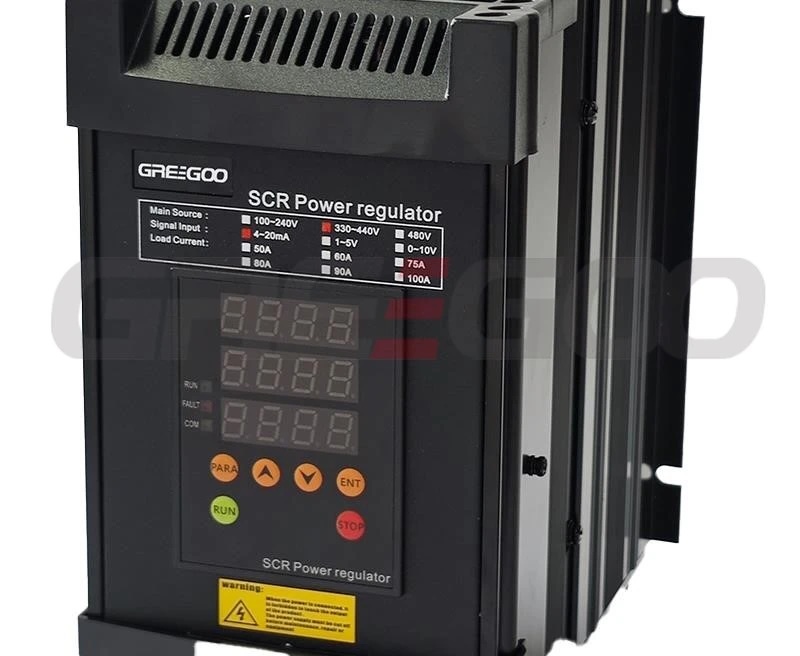

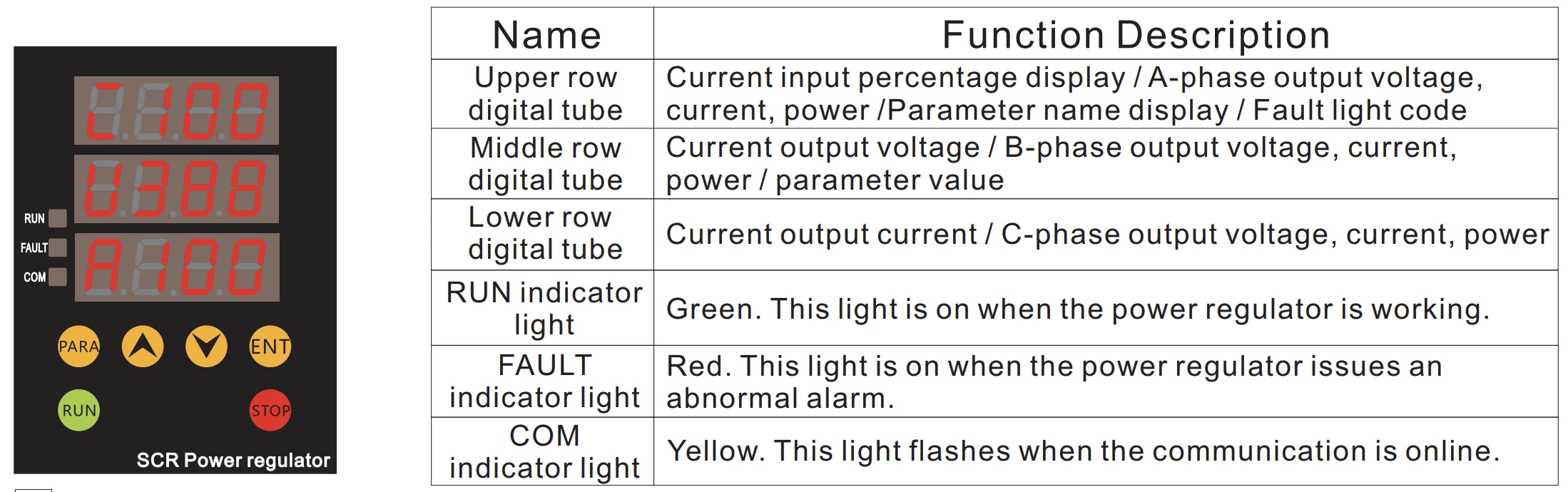

◎ Three-row digital display, capable of separately showing three-phase current, voltage, and power.

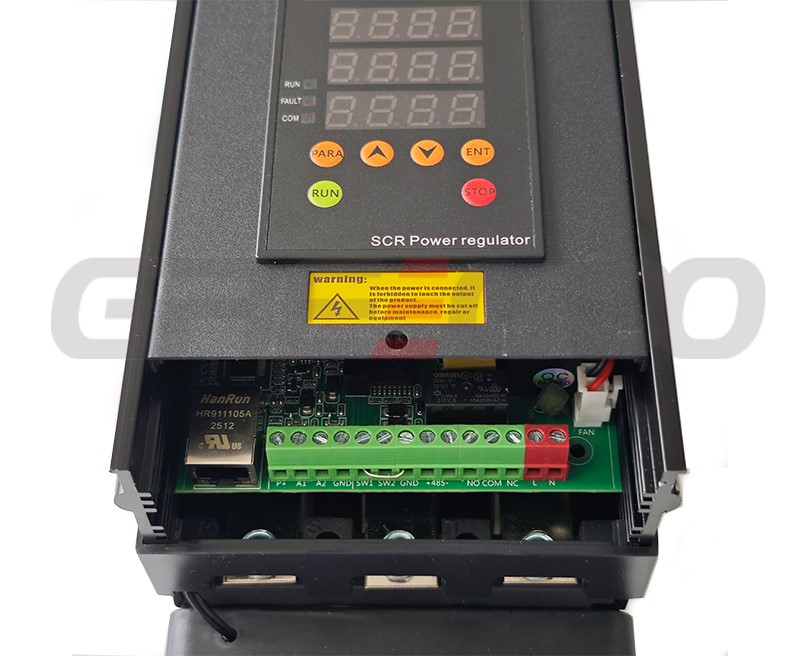

◎ Equipped with both MODBUS TCP Ethernet communication and MODBUS RTU 485 communication interfaces.

◎ Single-channel universal input design, with one input port compatible with 4-20mA, 0-10V, and other signals simultaneously.

◎ Both current and voltage adopt RMS (effective value) display, closer to actual measurement values.

Model explanation

Part Numbers	**1-2-3-4-5-6**	e.g.	HGW9-4-4-040-P-H3

	Description	Code	Value
*1	Design Code	HGW9
*2	Phase	4	Three phase
*3	Main Power Supply	2	110-220V
		4	380-440V
		8	480-520V
*4	Rated Current	030	30A
		040	40A
		050	50A
		060	60A
		...	...
		800	800A
*5	Control mode setting	P	Phase constant voltage current limiting
		C	Phase constant current
		CV	Phase constant power
		Z	Cycle zero-crossing power regulation
		ZV	Fixed cycle zero crossing power regulation

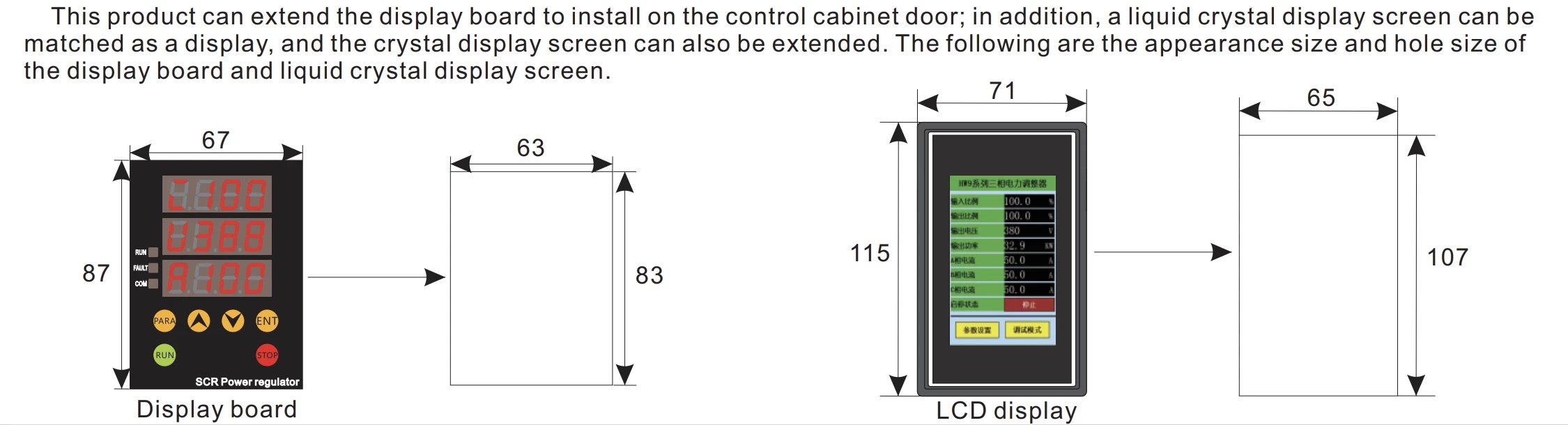

*6	Additional configuration	H	External touch screen lead * meter
		Y	External display panel lead * meter
		e.g.	H3 - with external touch scree and 3 meter lead wire

Specification

Model	Rated Current	Load Power(KW)		Product size (mm)			Mount size (mm)		Weight (KG)	Screw	Torque	Cooling method	Housing
		220V	380V	L	W	H	L	W
HGW9-4-4-030-P	30A	9.5	16.5	250	140	195	162	135	3.5	M6	50kgfcm	Forced Air cooling	Fig. 1
HGW9-4-4-040-P	40A	12.5	20	250	140	195	162	135	3.5	M6	50kgfcm	Forced Air cooling	Fig. 1
HGW9-4-4-030-PF	30A	9.5	16.5	250	140	195	162	135	3.5	M6	50kgfcm	Forced Air cooling	Fig. 2
HGW9-4-4-040-PF	40A	12.5	20	250	140	195	162	135	3.5	M6	50kgfcm	Forced Air cooling
HGW9-4-4-050-P	50A	15.5	27	250	140	195	162	135	3.5	M6	50kgfcm	Forced Air cooling
HGW9-4-4-060-P	60A	19	33	250	140	195	162	135	3.5	M6	50kgfcm	Forced Air cooling
HGW9-4-4-075-P	75A	23.5	41	250	140	195	162	135	3.5	M6	70kgfcm	Forced Air cooling
HGW9-4-4-080-P	80A	25.5	44	250	140	195	162	135	3.5	M6	75kgfcm	Forced Air cooling
HGW9-4-4-090-P	90A	28.5	49	250	140	205	162	135	3.5	M6	85kgfcm	Forced Air cooling	Fig. 3
HGW9-4-4-100-P	100A	32	55	250	140	205	162	135	3.5	M6	85kgfcm	Forced Air cooling	Fig. 3
HGW9-4-4-125-P	125A	40	68.5	290	140	205	202	135	4.4	M8	95kgfcm	Forced Air cooling	Fig. 4
HGW9-4-4-150-P	150A	45.5	75	340	140	205	252	135	5.5	M8	170kgfcm	Forced Air cooling	Fig. 5
HGW9-4-4-175-P	175A	53	88	390	140	205	302	135	6	M8	200kgfcm	Forced Air cooling	Fig. 6

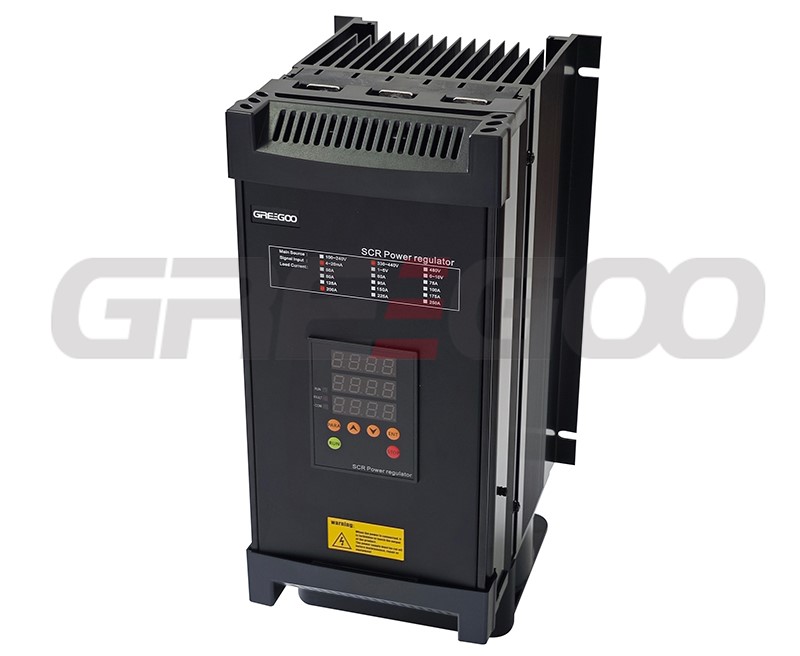

HGW9-4-4-200-P	200A	60	100	379	185	225	272	170	13	M8	220kgfcm	Forced Air cooling	Fig. 7
HGW9-4-4-250-P	250A	73	125	420	244	236	401	160	13	M10	220kgfcm	Forced Air cooling	Fig. 8
HGW9-4-4-300-P	300A	87	150	435	263	248	416	160	15	M10	250kgfcm	Forced Air cooling	Fig. 9
HGW9-4-4-350-P	350A	100	177	435	263	248	416	160	18	M10	250kgfcm	Forced Air cooling	Fig. 9
HGW9-4-4-400-P	400A	115	200	435	263	290	416	160	22	M10	250kgfcm	Forced Air cooling	Fig. 10
HGW9-4-4-450-P	450A	130	220	435	263	290	416	160	25	M10	250kgfcm	Forced Air cooling
HGW9-4-4-500-P	500A	150	240	435	263	290	416	160	25	M10	250kgfcm	Forced Air cooling
HGW9-4-4-600-P	600A	175	300	525	388	330	495*3	140*2	37	M12	300kgfcm	Forced Air cooling	Fig. 11
HGW9-4-4-800-P	800A	235	410	525	388	330	495*3	140*2	37	M12	300kgfcm	Forced Air cooling	Fig. 11
