MURL20056CTR Fast recovery diode module
Home Products FRED ModuleHot selling FRED modulesMURL20056CTR Fast recovery diode module
Product details
MURL20056CTR Fast recovery diode module
Feature & Advantages
- Dual Diode Construction
- Low Leakage Current
- Low Forward Voltage
- 175℃ Operating Junction Temperature
- Labor Saving POWERTAP Package
Mechanical Characteristics
- Case: Epoxy,Molded with metal heatsink base
- Weight: 80 grams(approximately)
- Finish: All External Surfaces Corrosion Resistant
- Top Terminal Torque"25-40 lb-in max
Specification
| Parametrics | MURL20056CTR |
|---|---|
| VDRMVRRM | 600V |
| ITAV IFAV | 200 A |
| TC | 0 °C |
| ITSM IFSM | 1500 A |
| VFM | 1.15 V |
| IFM | 200A |
| trr(typ) | 105ns |
| RthJC (Per Chip) | 0.20 °C/W |
| Packages | U |

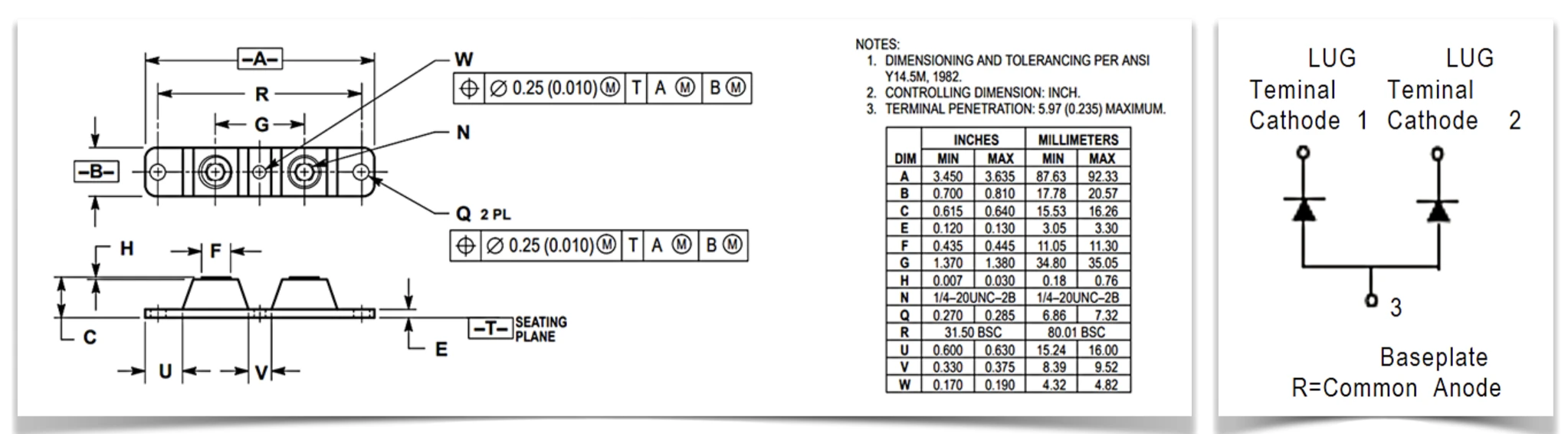

Circuit and Dimension
