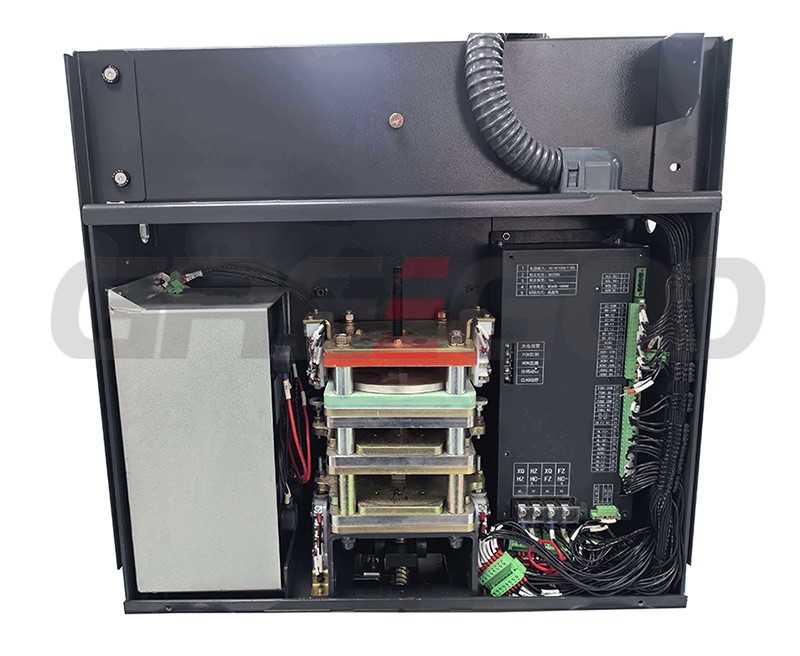

GRH-12-1250/25F High Speed VCB
| Technical Characteristics | Unit | GRH-12-1250/25F |
| Rated voltage | kV | 12 |
| Rated current | A | 1250 |
| Rated frequency | Hz | 50 |
| Rated power frequency withstand voltage (1min) | kV | 42 |
| Rated lightning impulse withstand voltage (peak) | kV | 75 |
| Opening time | ms | <5 |
| Closing time | ms | <50 |
| Rated short circuit breaking current | kA | 25 |
| Closing asynchronism | ms | ≤2 |
| Opening asynchronism | ms | ≤2 |
| Rated short circuit making current (peak) | kA | >50 |
| Times of breaking 100% fault-current | Times | 50 |
| Rated operating sequence | - | O-180s-CO |
| Mechanical endurance | Times | 30000 |
| Rated current of single capacitor bank breaking | A | 630 |
| Rated current of back-to-back capacitor bank breaking | A | 400 |
| Opening mode under short-circuit condition | - | Externally driven |
| Mounting | Fixed type |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
GRH-12-630/25F High Speed VCB 12kV
12KV 630A 25kA fixed type high speed vacuum circuit breaker

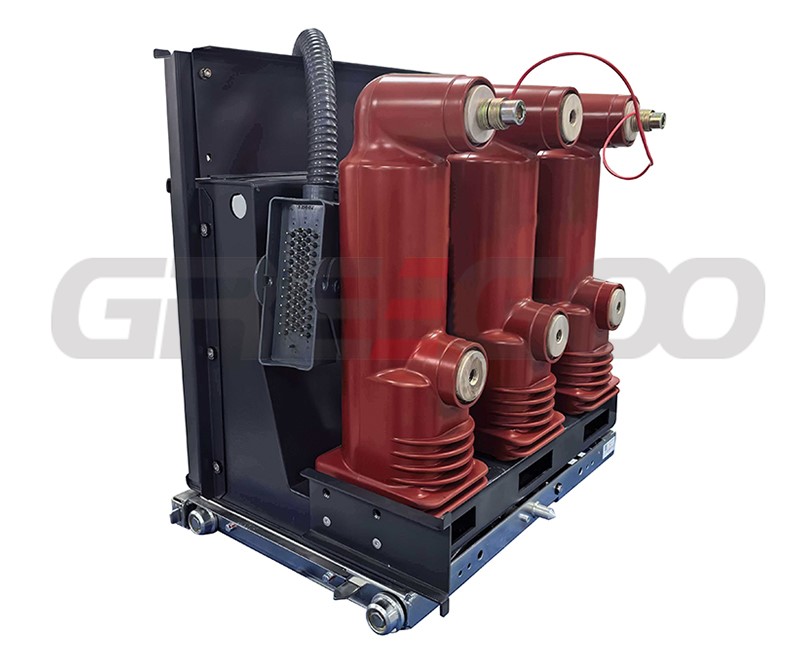

GRH-12-1250/20D Fast acting VCB
