GF400D170B2B Fast Recovery Diode Module
Home Products FRED ModuleHot selling FRED modulesGF400D170B2B Fast Recovery Diode Module
Product details

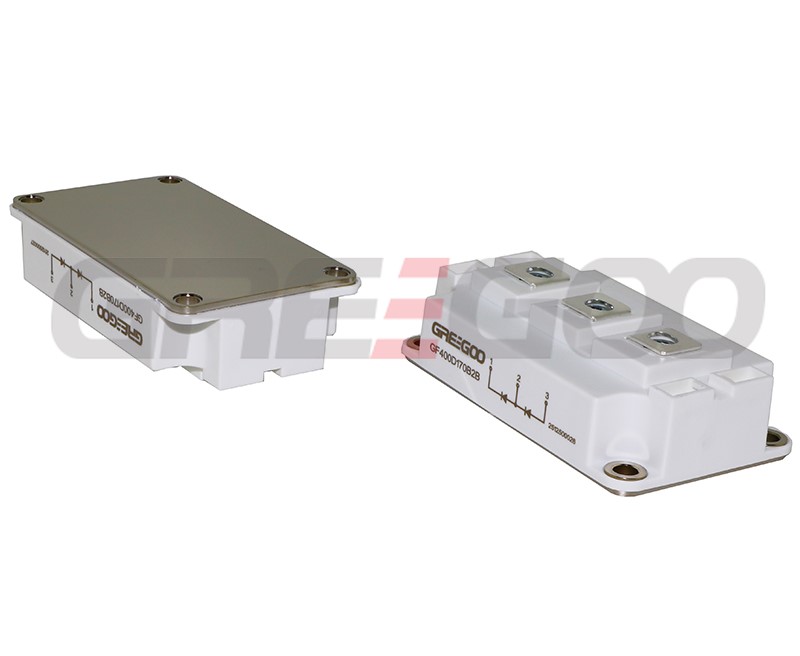

GF400D170B2B Fast Recovery Diode Module
Features
Ultrafast Reverse Recovery Time
Soft Reverse Recovery Characteristics
Low Reverse Recovery Loss
Low Forward Voltage
High Surge Current Capability
Low Leakage Current
Typical Applications
Inversion Welder
Uninterruptible Power Supply(UPS)
Plating Power Supply
Ultrasonic Cleaner and Welder
Converter & Chopper
Power Factor Correction (PFC) Circuit

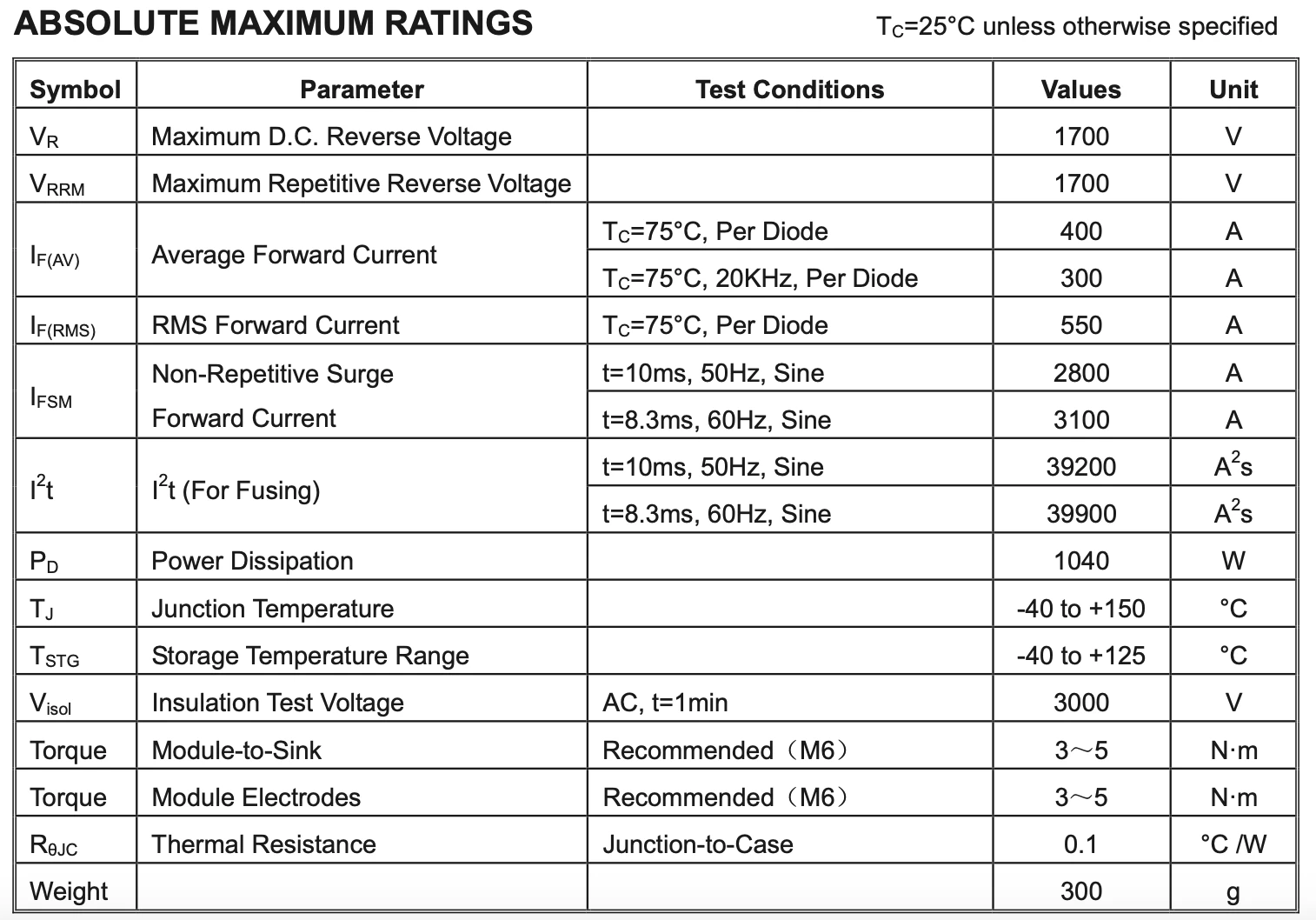

Maximum Ratings

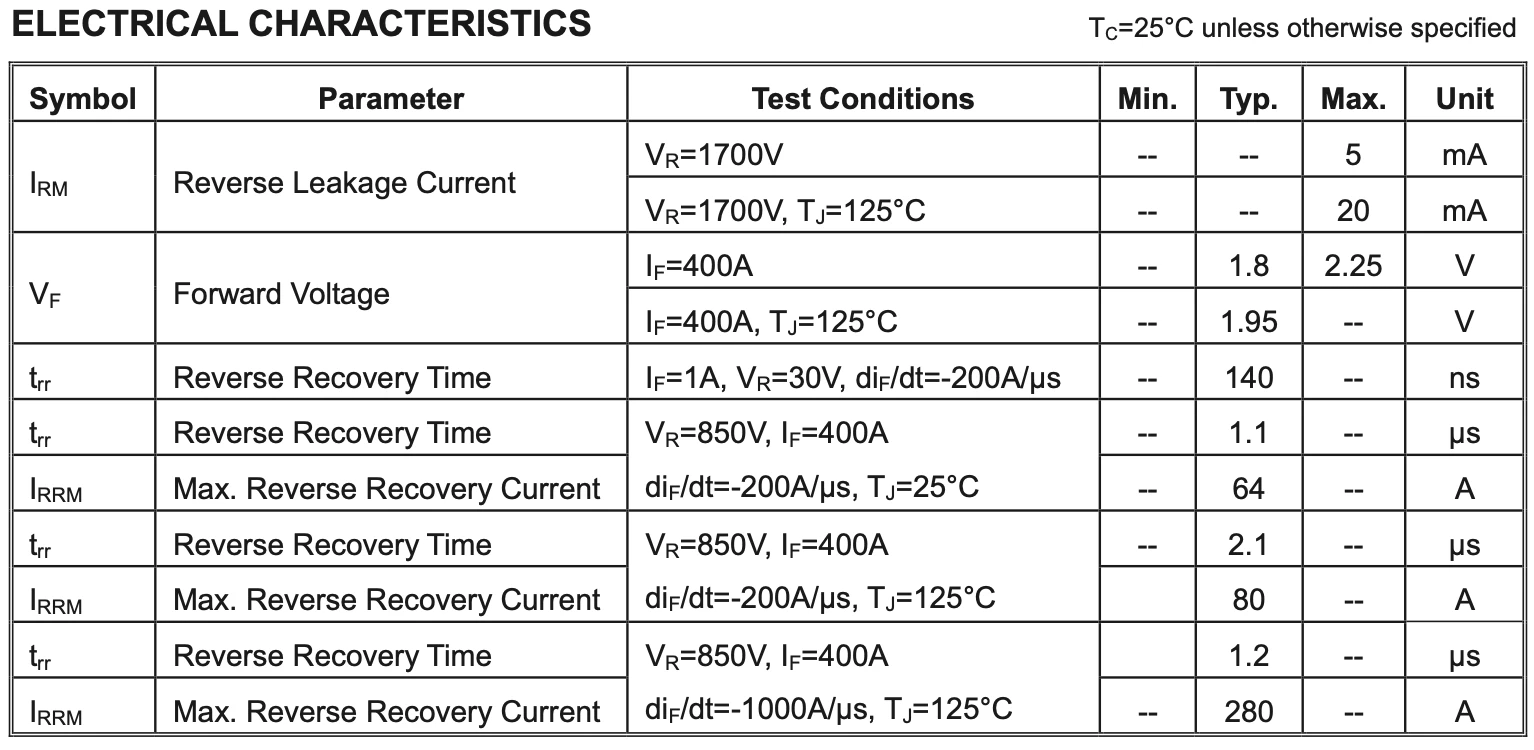

Electrical characteristics

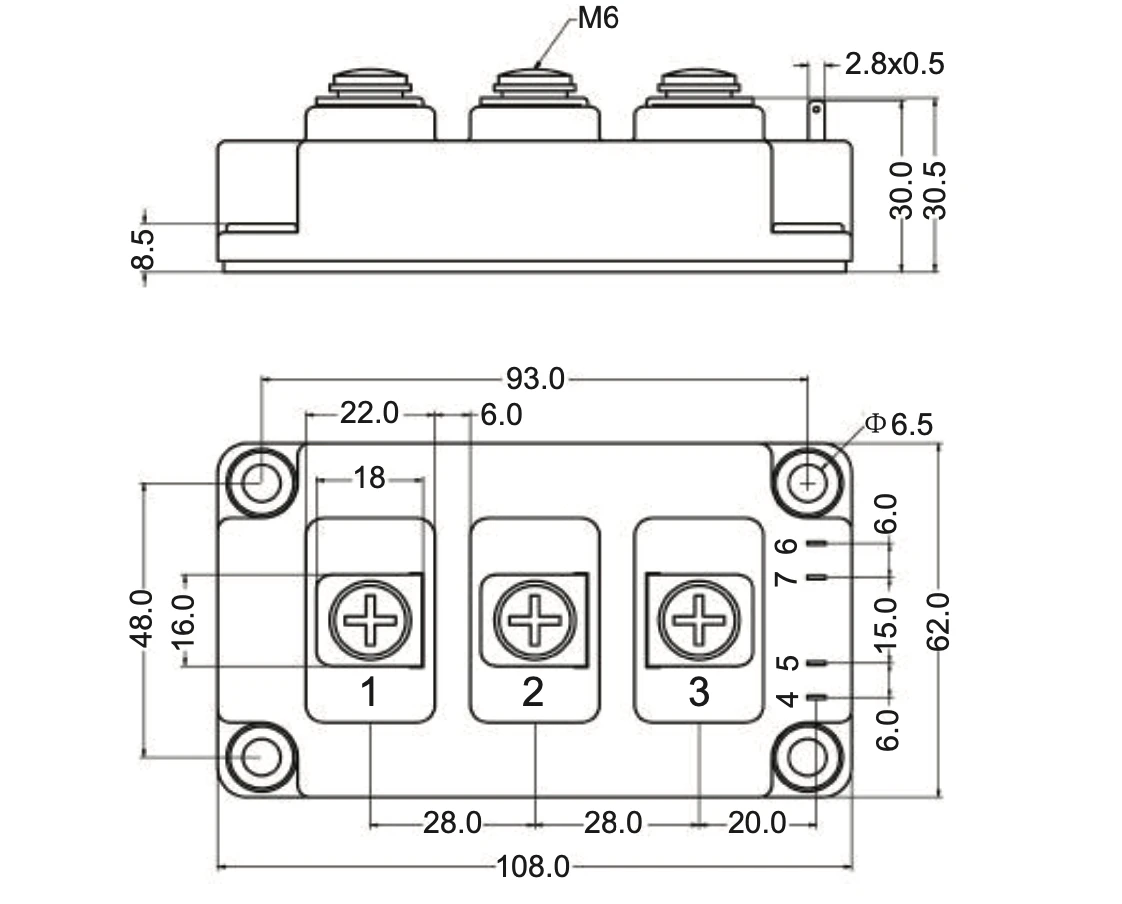

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
