DH30 EV DC contactor
Home Products High Voltage DC ContactorsDC Contactors up to 1000VDCDH30 EV DC contactor
Features
DH30 EV DC contactor
- Sealed with high-strength epoxy resin, no risk of arc leakage, ensuring no fire or explosion within the service life.
- Potting with mainly nitrogen inert gas improves arc extinguishing performance and effectively prevents contact oxidation and burnout. The contact resistance is low and stable, and the contact part can meet the IP67 protection grade.
- 30A 85ºC long time current carrying capacity.
- The insulation resistance reaches 100MΩ (1,000VDC), and the withstand voltage between the contact and the coil is 3.5kV.
- Compliant with IEC 60664-1 and RoHS (2015/863/EC) and REACH (1907/2006/EC) requirements.
Part numbers
| Part numbers | Load current |
Load voltage |
Coil characteristics | Coil voltage | Protection degree |
Note |
| DH30S12 | 30A | 9-1000VDC | Continuous duty single coil | 12VDC | IP67 | Bottom mount; Internal thread; Non-polarity |
| DH30S24 | 30A | 9-1000VDC | Continuous duty single coil | 24VDC | IP67 | Bottom mount; Internal thread; Non-polarity |
| DH30S36 | 30A | 9-1000VDC | Continuous duty single coil | 36VDC | IP67 | Bottom mount; Internal thread; Non-polarity |
| DH30S48 | 30A | 9-1000VDC | Continuous duty single coil | 48VDC | IP67 | Bottom mount; Internal thread; Non-polarity |
| DH30S60 | 30A | 9-1000VDC | Continuous duty single coil | 60VDC | IP67 | Bottom mount; Internal thread; Non-polarity |
| DH30S72 | 30A | 9-1000VDC | Continuous duty single coil | 72VDC | IP67 | Bottom mount; Internal thread; Non-polarity |
Main Contact Specification
| Contact Arrangement | 1K（1NO） |
| Contact Polarity | Non-polarity |
| Contact Resistance | ≤0.5mΩ（at 150A） |
| Max. Switching Voltage | 1000VDC |
| Max. Breaking Current | 240A（320VDC）1 time |
| Electrical Endurance (Resistive Load) | 1000 times（100VDC,30A） |
| 3000 times（750VDC,30A） | |
| 9000 times（450VDC,30A） | |
| Mechanical Endurance | 300000 times |
| Withstand Current | 30A, Continuous |
| 45A，60min | |
| 60A，5min | |
| 120A，30S |
Performance Parameter
| Pickup Voltage | ≤70％Us |
| Dropout Voltage | ＜40％Us,＞5％Us |
| Pickup Time | ≤25ms |
| Contact Bounce Period | ≤5ms |
| Dropout Time | ≤10ms |
| Dielectric Strength | |
| Between Main Contacts | 3500VDC 1min |
| Between Main Contact and Coil | 3500VDC 1min |
| Insulation Resistance | |
| Initial State | 100MΩ 1min |
| After Electrical Life | 50MΩ 1min |
| Shock | |
| Stability | 20g (Power On) |
| Strength | 50g |
| Vibration | 10g, 10~500Hz, 1/2 Sine Wave (Power On) |
| Relative Humidity | 5%~95%RH |
| Temperature | -40℃~85℃ |
| Load Terminal | M4 Internal Thread |
| Weight | About 100g |
| Dimension | 51.7mm*36mm*46mm |
Coil Parameter
|
Coil Voltage |
Pickup Voltage VDC |
Dropout Voltage VDC |
Coil Resistance |
Coil Power Consumption |
|
12V |
≤70%Us |
5%-40%Us |
36Ω±5% |
4W±10% |
|
24V |
≤70%Us |
5%-40%Us |
144Ω±5% |
4W±10% |
|
36V |
≤70%Us |
5%-40%Us |
324Ω±5% |
4W±10% |
|
48V |
≤70%Us |
5%-40%Us |
576Ω±5% |
4W±10% |
|
60V |
≤70%Us |
5%-40%Us |
900Ω±5% |
4W±10% |
|
72V |
≤70%Us |
5%-40%Us |
1296Ω±5% |
4W±10% |

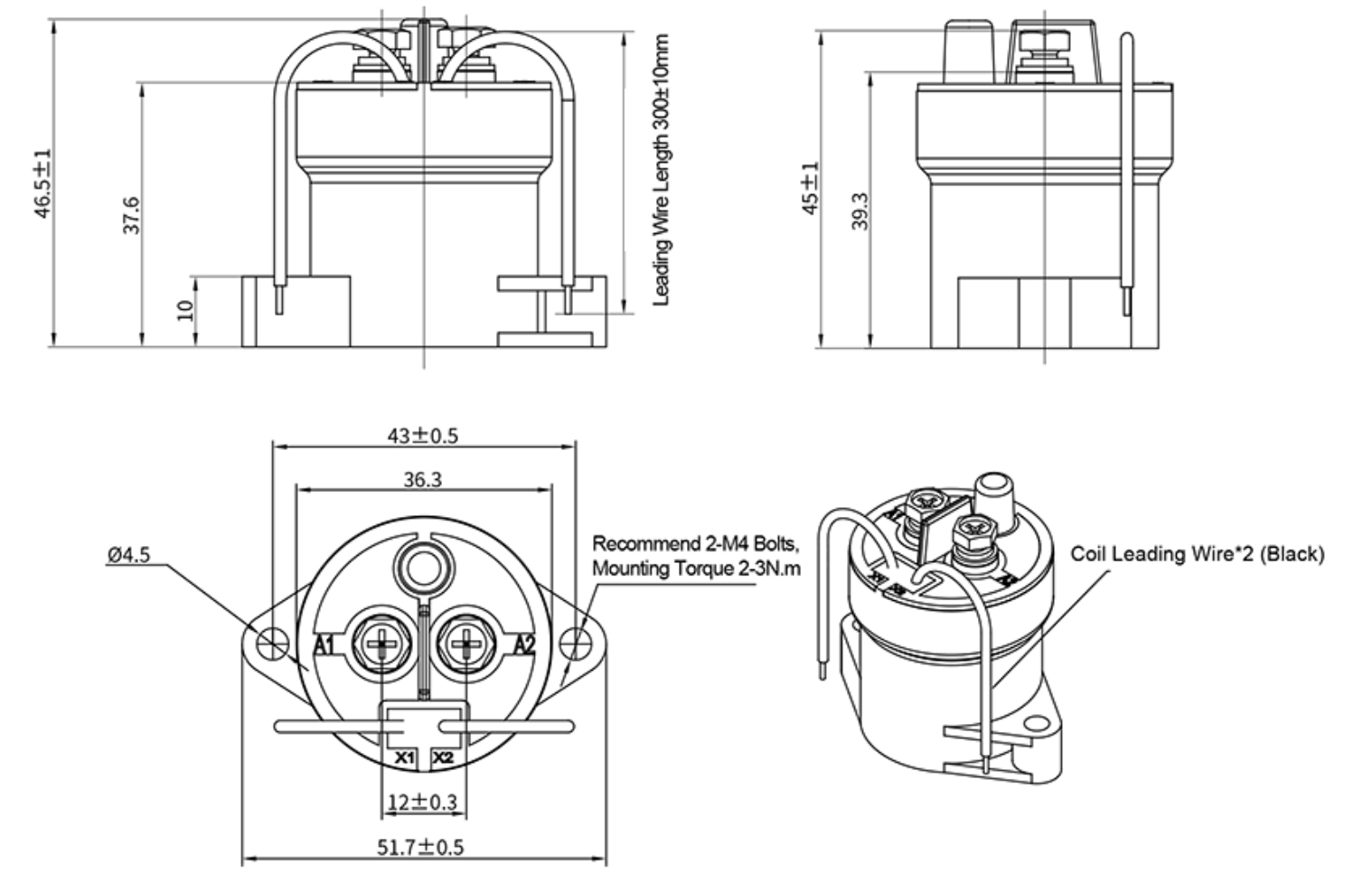

Outline dimensions
