CFS-504 Foot Pedal Switches
Home Products Electric device for IndustryControl SwitchesCFS-504 Foot Pedal Switches
Product Details

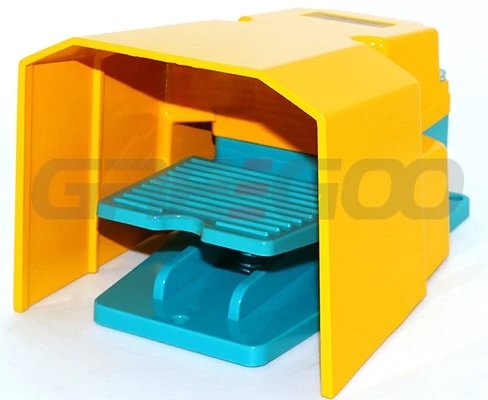

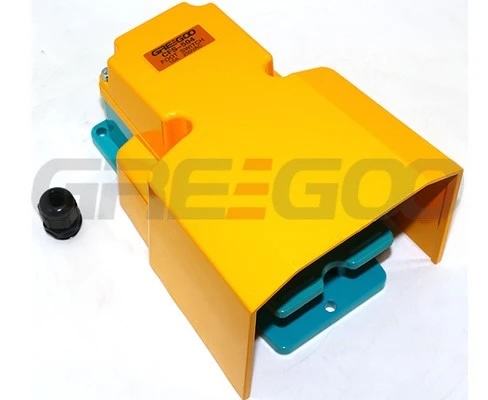

CFS-504 Foot Pedal Switches
| Part number | CFS-504 |
| Rating | 15A 250VAC |
| Contact configuration | 2A2B |
| Switch operation | Protective guard |
| Switch type | CM-1704*2 |
| Case material | Aluminum Cast |
| IP rating | IP20 |
| Standard | EN60529 |
| Action force | 3.2kg |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
