SCR Power Controller 3-phase for Transformer and Inductive Load 30A to 80A
A high-performance, fully advanced 3-phase SCR power controller featuring seamless switching between phase-angle and zero-crossing modes, offering constant current, voltage, and power regulation via a software-configurable interface with integrated smart protection and real-time MCU-monitored diagnostics.
Product Features
Adopts high-stability MCU embedded single-core control technology and PID closed-loop control for 100% linear output.
Metal casing body, single digital display, multiple protection functions, built-in three-phase current imbalance alarm, built-in special processing unit for inductive loads, optimized transformer control, and standard MODBUS RTU communication.
| Model | Phase | Input Voltage | Rated Current |
Load Power (KW) |
Weight (Kg) |
Control mode | Control signal | |
| 220V | 380V | |||||||
| HGW7-4-4-030-P | 3Ph | 380-440V | 30A | 9.5 | 16.5 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-4-040-P | 3Ph | 380-440V | 40A | 12.5 | 20 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-4-050-P | 3Ph | 380-440V | 50A | 15.5 | 27 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |

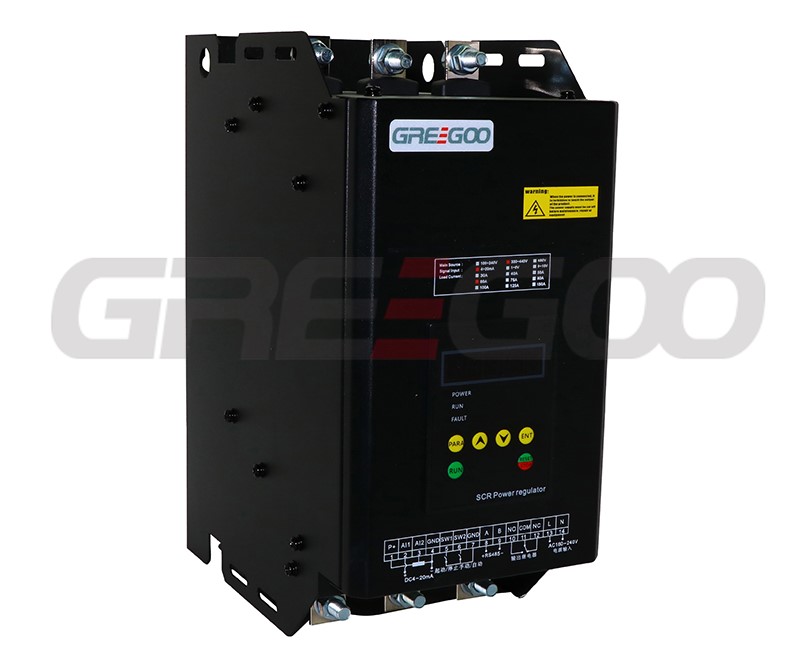

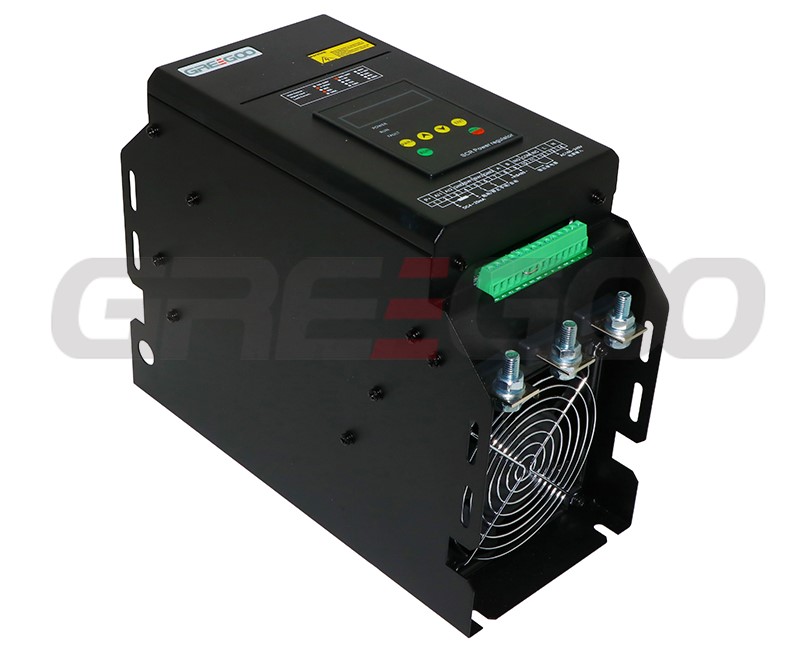

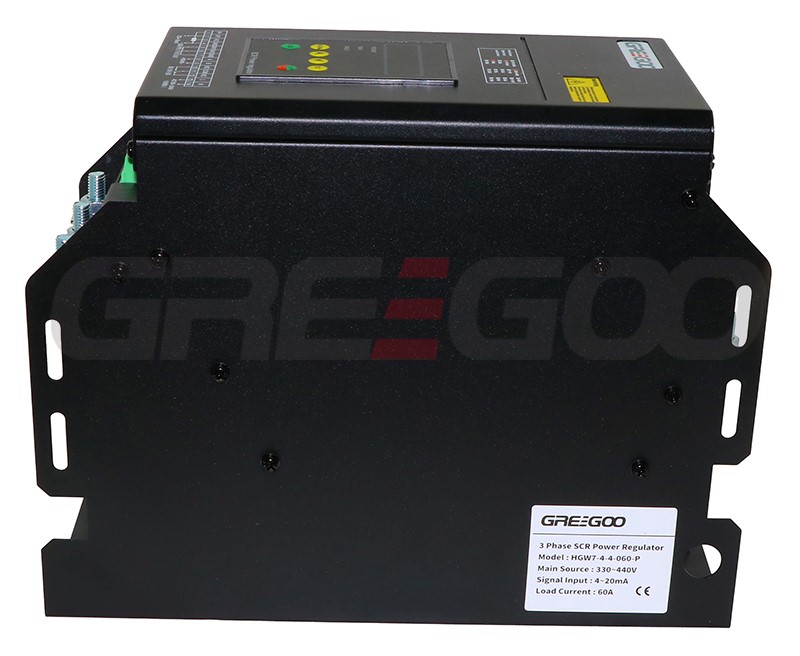

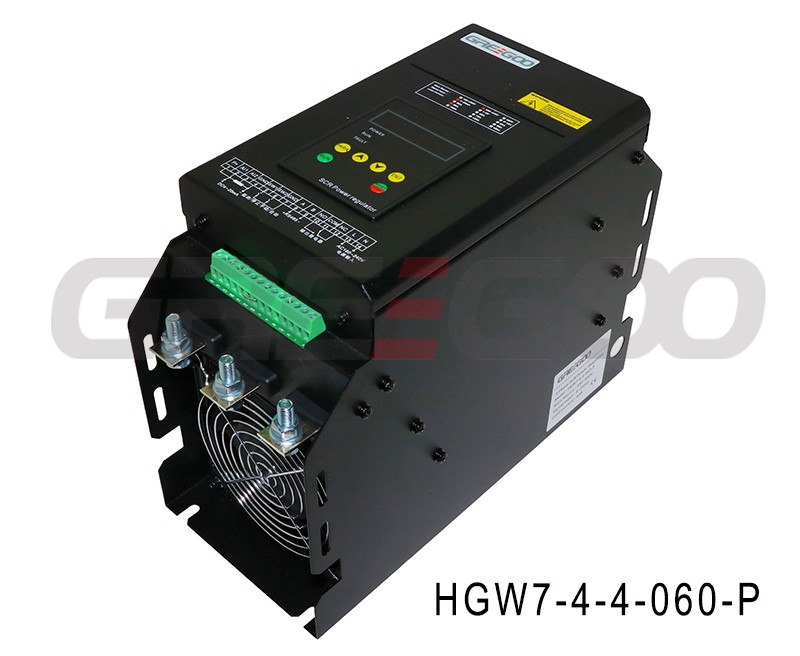

| HGW7-4-4-060-P | 3Ph | 380-440V | 60A | 19 | 33 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |

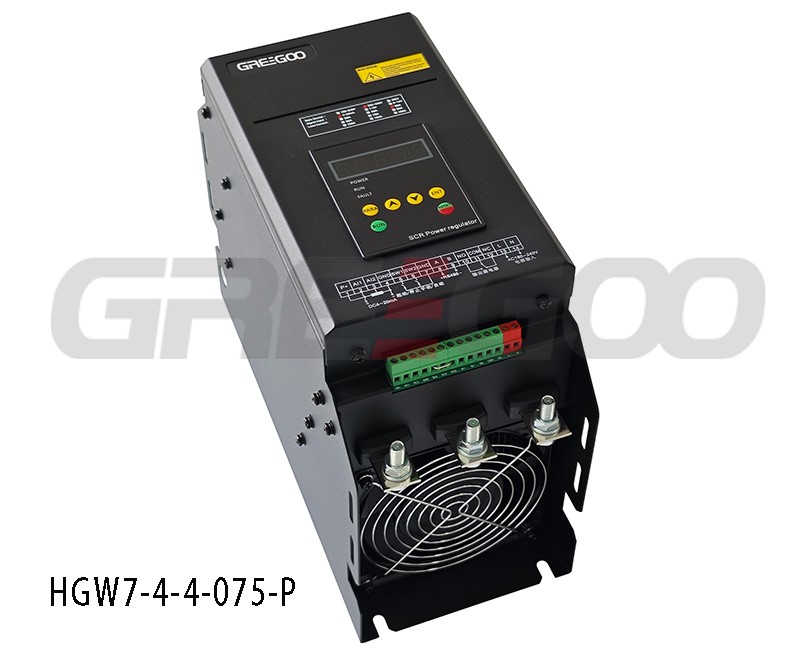

| HGW7-4-4-075-P | 3Ph | 380-440V | 75A | 23.5 | 41 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-4-080-P | 3Ph | 380-440V | 80A | 25.5 | 44 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-2-030-P | 3Ph | 110-220V | 30A | 9.5 | 16.5 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-2-040-P | 3Ph | 110-220V | 40A | 12.5 | 20 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-2-050-P | 3Ph | 110-220V | 50A | 15.5 | 27 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-2-060-P | 3Ph | 110-220V | 60A | 19 | 33 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-2-075-P | 3Ph | 110-220V | 75A | 23.5 | 41 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-2-080-P | 3Ph | 110-220V | 80A | 25.5 | 44 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-8-030-P | 3Ph | 480-600V | 30A | 9.5 | 16.5 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-8-040-P | 3Ph | 480-600V | 40A | 12.5 | 20 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-8-050-P | 3Ph | 480-600V | 50A | 15.5 | 27 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-8-060-P | 3Ph | 480-600V | 60A | 19 | 33 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-8-075-P | 3Ph | 480-600V | 75A | 23.5 | 41 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
| HGW7-4-8-080-P | 3Ph | 480-600V | 80A | 25.5 | 44 | 6 | Selectable P/C/V/CV/Z | 4-20mA/0-5V/Pot |
Control mode selectable: P - phase angle open loop; C - constant current; V - constant voltage; CV - constant power; Z - zero crossing cycle power regulating. Control signal: 0-10V is optional.
