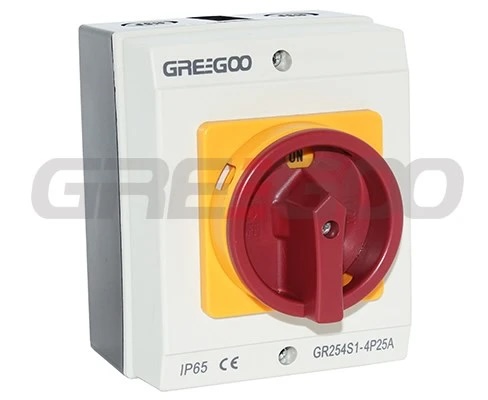

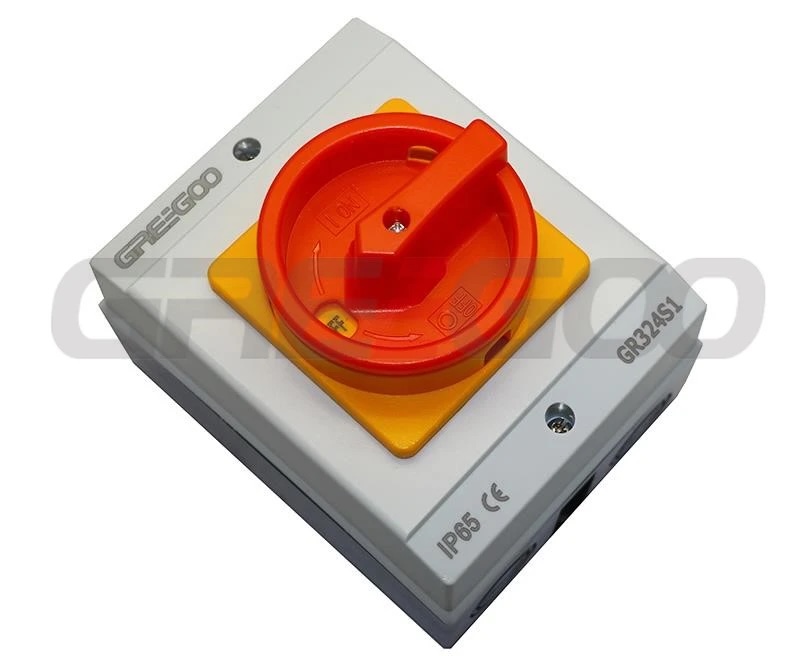

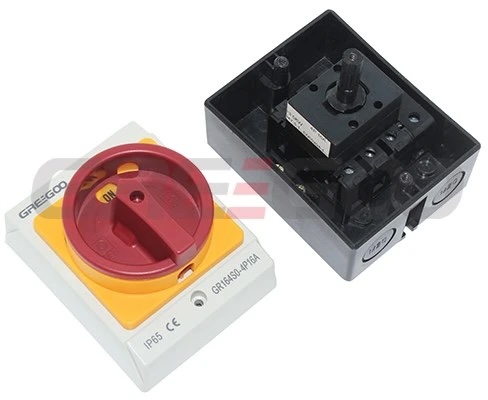

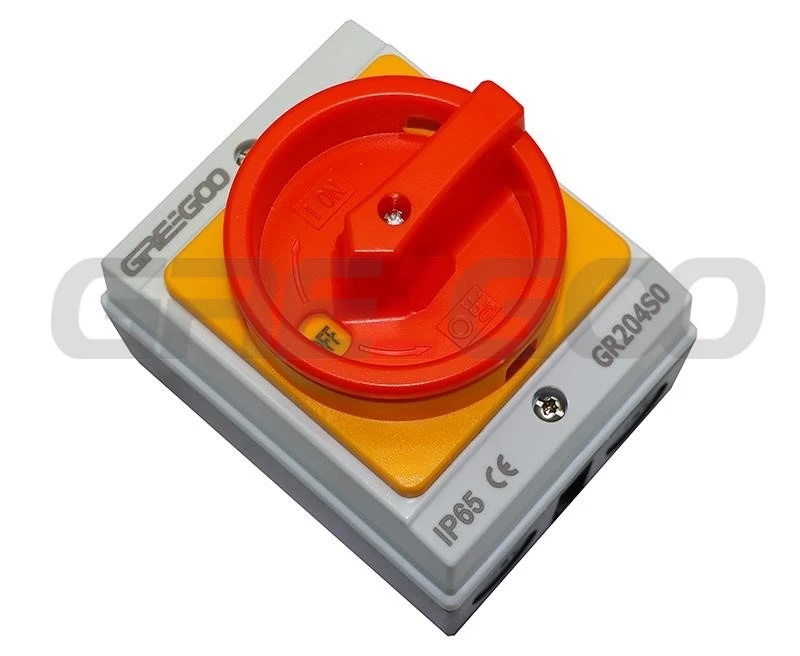

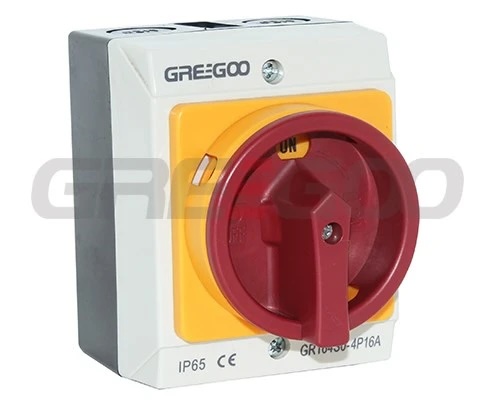

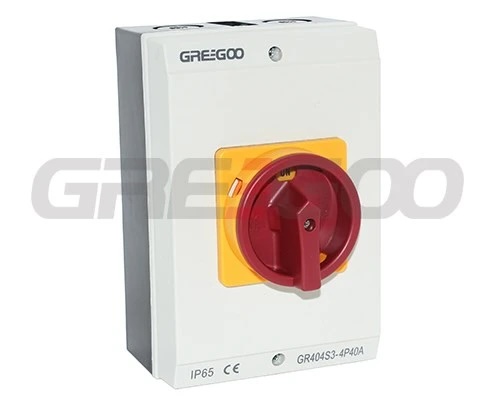

20A-125A rotary isolator switches with plastic enclosure
| Order # | Pole No. | Max. rated uninterrupted current (AC-23A) |
Operational rating power 380/440VAC (AC-23A) |
Mount | IP degree |
| GR203S | 3P | 20A | 5.5KW | SURFACE | IP65 |
| GR253S | 3P | 25A | 7.5KW | SURFACE | IP65 |
| GR323S | 3P | 32A | 11KW | SURFACE | IP65 |
| GR403S | 3P | 40A | 15KW | SURFACE | IP65 |
| GR633S | 3P | 63A | 22KW | SURFACE | IP65 |
| GR803S | 3P | 80A | 30KW | SURFACE | IP65 |
| GR1003S | 3P | 100A | 37KW | SURFACE | IP65 |
| GR1253S | 3P | 125A | 45KW | SURFACE | IP65 |
| GR204S | 3P N | 20A | 5.5KW | SURFACE | IP65 |
| GR254S | 3P N | 25A | 7.5KW | SURFACE | IP65 |
| GR324S | 3P N | 32A | 11KW | SURFACE | IP65 |
| GR404S | 3P N | 40A | 15KW | SURFACE | IP65 |
| GR634S | 3P N | 63A | 22KW | SURFACE | IP65 |
| GR804S | 3P N | 80A | 30KW | SURFACE | IP65 |
| GR1004S | 3P N | 100A | 37KW | SURFACE | IP65 |
| GR1254S | 3P N | 125A | 45KW | SURFACE | IP65 |
