Standard Recovery Diode D171
Home Products Stud Rectifier DiodeStud Diode (Russian series)Standard Recovery Diode D171
Product Details
Standard Recovery Diode D171
| Type | VRRM | IF(AV) | IFSM | VFM /IFM | VTO | rT | TJmax | Rth (j-c) | Md | Case |
| (TC ,oC) | 10 ms | |||||||||
| V | A | kA | V/A | V | m W | oC | oC/W | Nm | ||

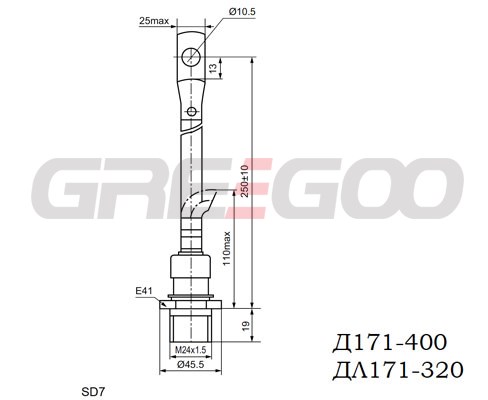

| D171-400 | 300-1800 | 400(145) | 14 | 1.45/1256 | 0.9 | 0.56 | 190 | 0.085 | 25-35 | SD7 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
