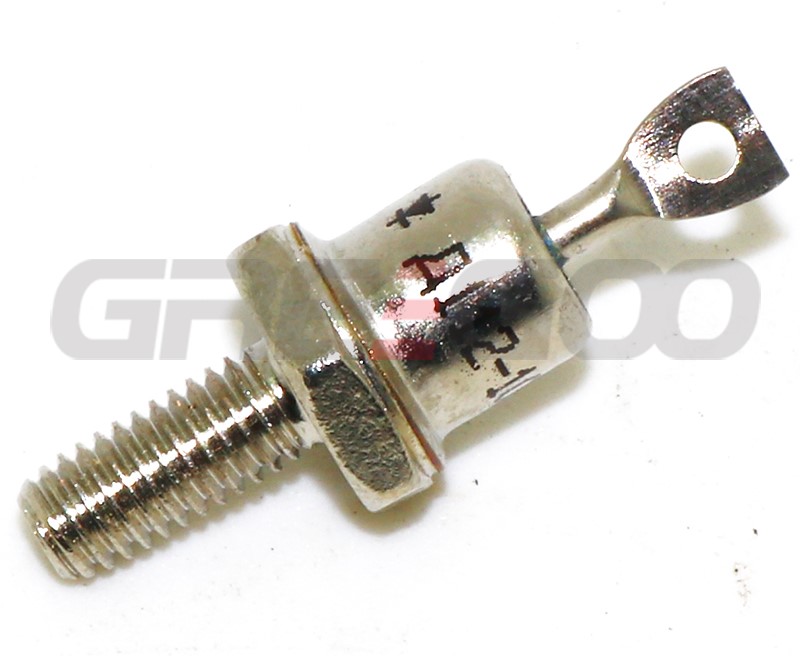

Standard Recovery Diode D112
Model | URRM, | IFAV (Tc), | IFRMS, | IFSM, | UFM (IFM), | Rthjc, |
D112 | V | V (°C) | А | kA | V (A) | °C/W |
D112-10; D112-10Х | 100-1800 | 10 (110) | 16 | 0,25 | 1,35 (31) | 2,7 |
D112-16; D112-16Х | 100-1800 | 16 (110) | 23 | 0,25 | 1,35 (50) | 1,9 |
D112-25; D112-25Х | 100-1800 | 25 (110) | 39 | 0,34 | 1,35 (78) | 1,3 |
