Single thyristor module MT350A/400A
Home Products Thyristor Diode ModuleSingle Thyristor ModuleSingle thyristor module MT350A/400A
Product Details

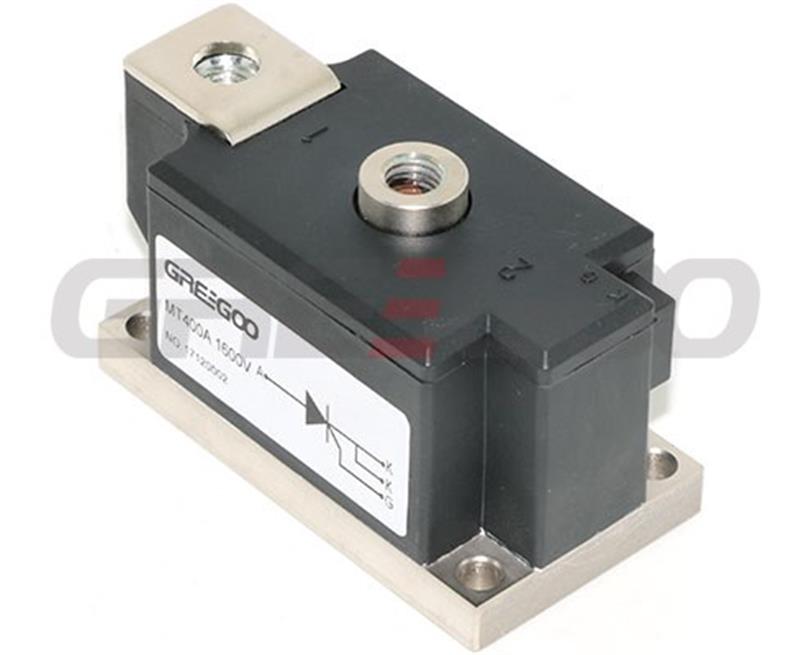

Single thyristor module MT350A/400A
| Type | IT(AV) | VDRM VRRM | VTM@ITM | IDRM IRRM | IGT | VGT | IH | dV/dt | di/dt | ITSM | Rjc | Tjm | Viso | Outline | |
| A | V | V | A | mA | mA | V | mA | V/μs | A/μs | A×103 | ℃/W | ℃ | V(AC) | ||

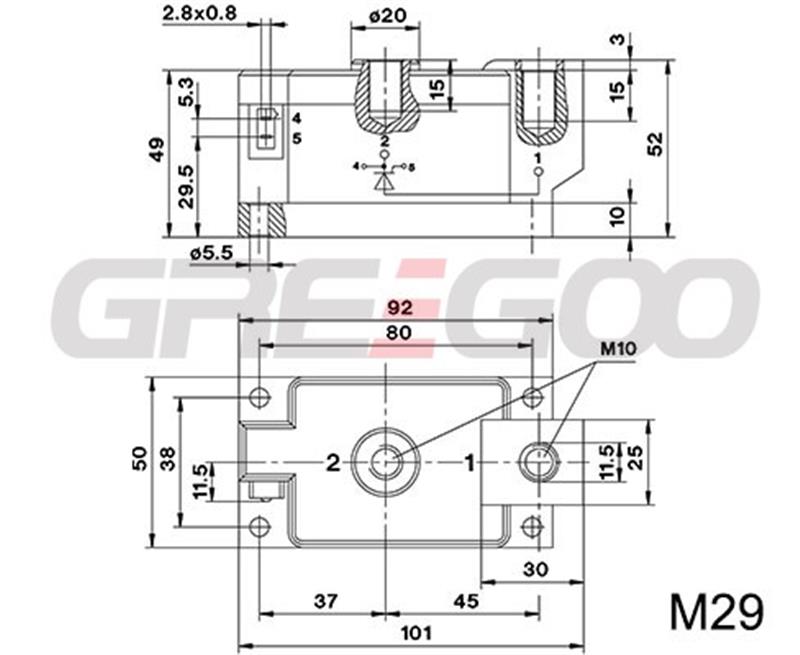

| MT350A | 350 | 400-2600 | 1.45 | 1050 | 40 | 180 | 2.5 | 100 | 800 | 100 | 11 | 0.09 | 125 | 2500 | M29 |
| MT400A | 400 | 400-2600 | 1.44 | 1200 | 40 | 200 | 3 | 100 | 800 | 100 | 14 | 0.08 | 125 | 2500 | M29 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
