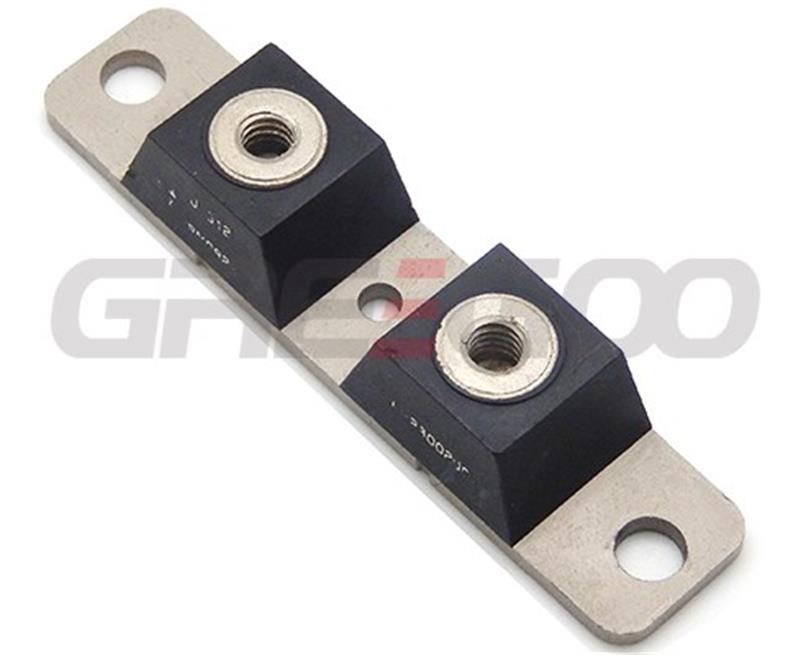

Fast recovery diode module

Fast recovery diode module

Product Details

Fast recovery diode module

Fast recovery diode module

Features

- Super fast recovery
- Max junction temperature up to 175oC
- Low forward voltage drop

Typical Application
- Inverter Welding Power Supply
- Power Supply for Telecommunication
- Various Switching Power Supply

Notes: VFM are for 25oC, others are for Tj=Tjm, unless stated otherwise.

Type	IF(AV)	VRRM	IRRM	IFRM	IFSM	VFM	t rr	Rth(j-c)	Tj
	A	V	µA	A	A	V	ns	oC/W	oC
			125oC 25oC	20kHz Tc95oC	PerLeg 10ms	PerLeg 25oC@100A	25oC
MUR20020	200(Tc=130oC)	200	1000 150	200	800	1.0	50	0.45	-55- 175
MUR20040	200(Tc=100oC)	400	500 50	200	800	1.3	75	0.45	-55- 175

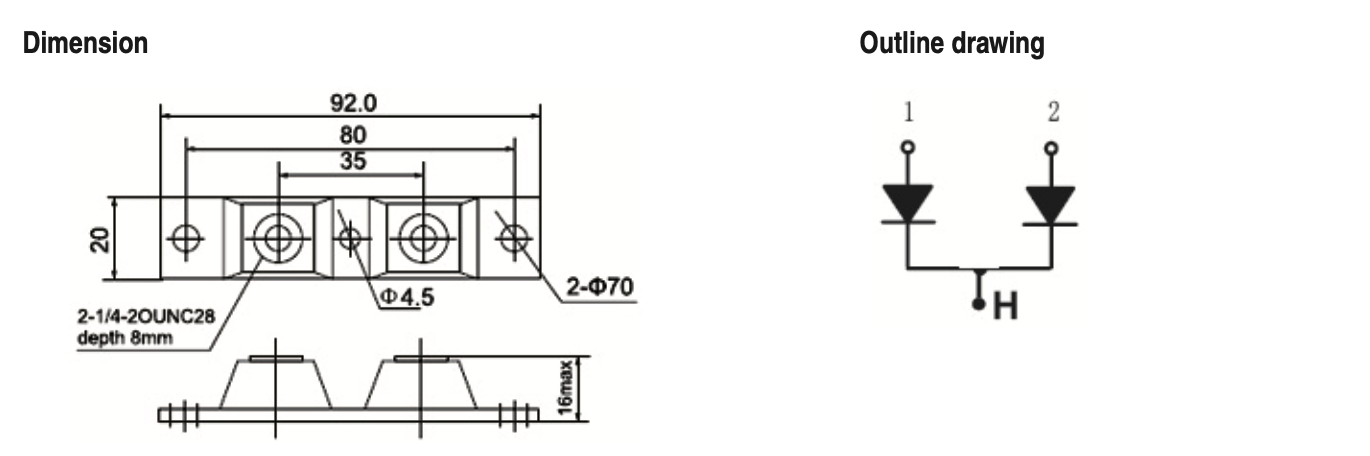

Dimensions

fast recovery diode mur20020 mur200400
