Dual thyristor module 300A 350A
Home Products Thyristor Diode ModuleDual Thyristor ModuleDual thyristor module 300A 350A
Product Details

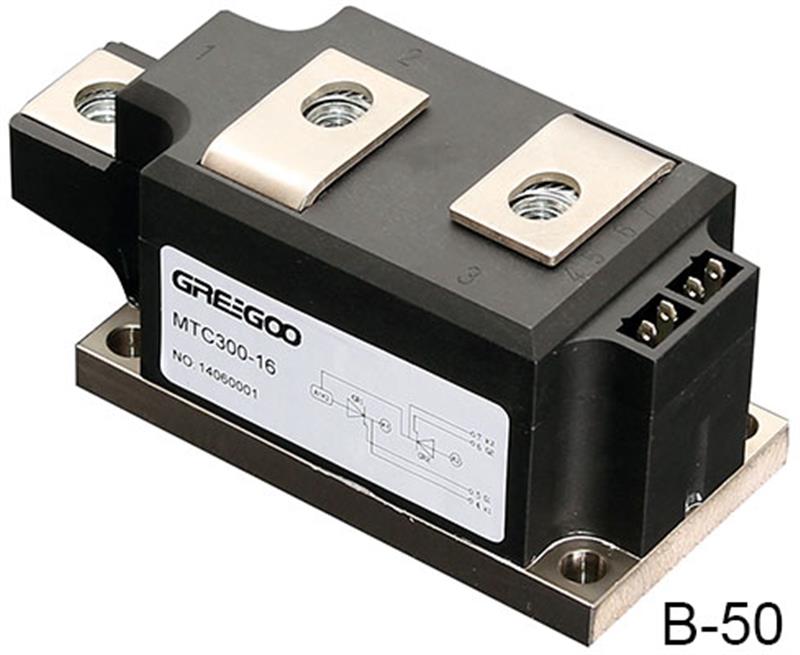

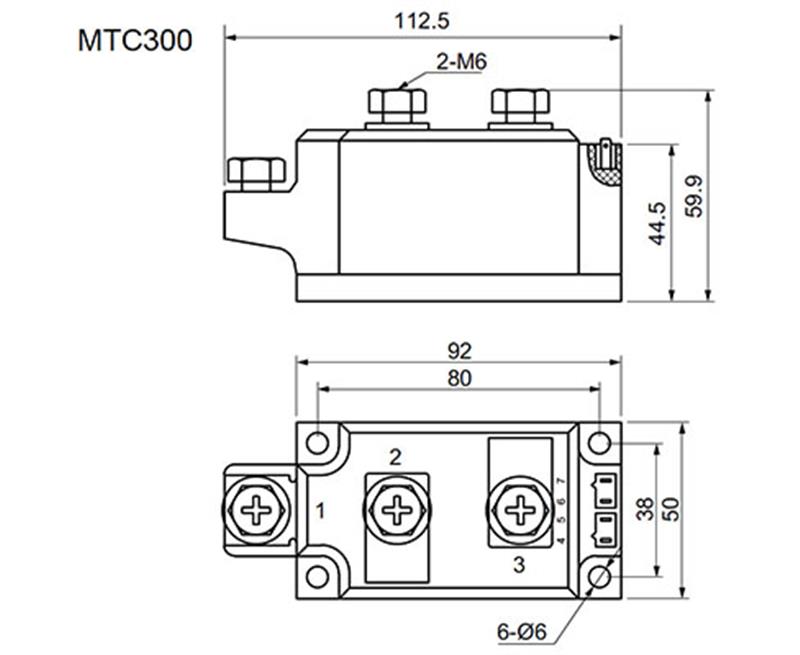

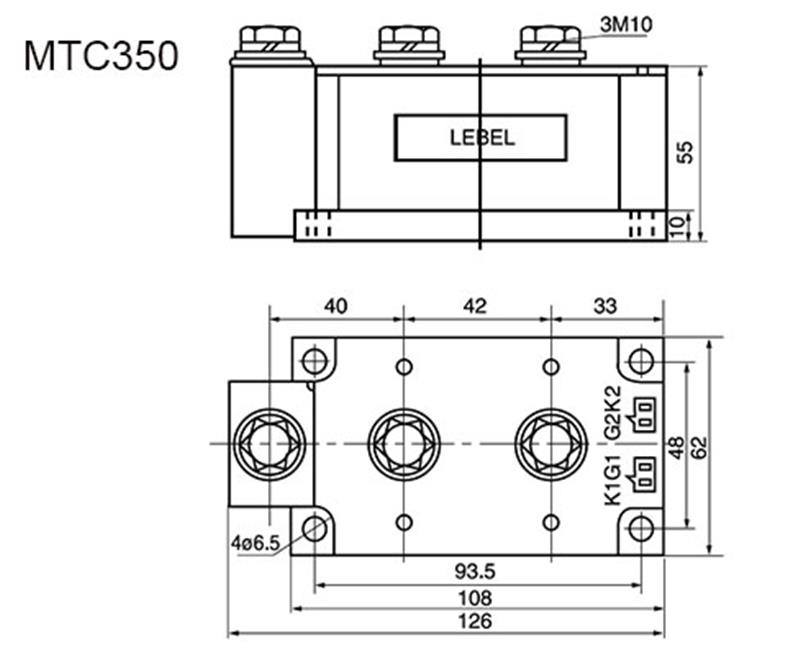

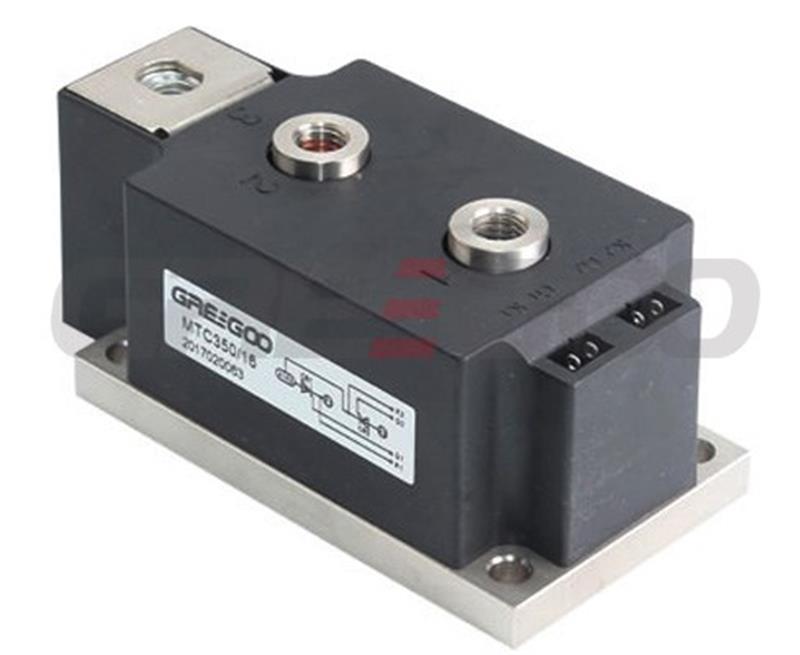

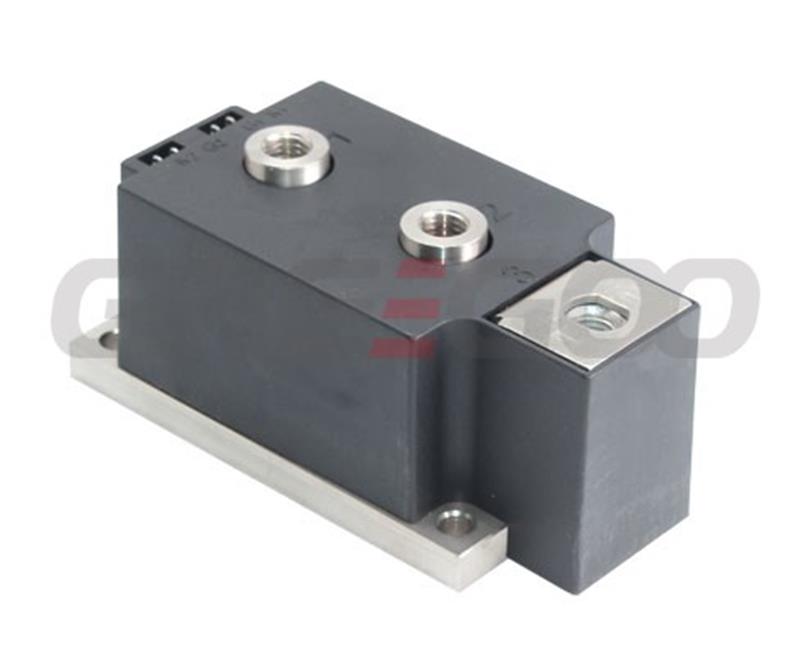

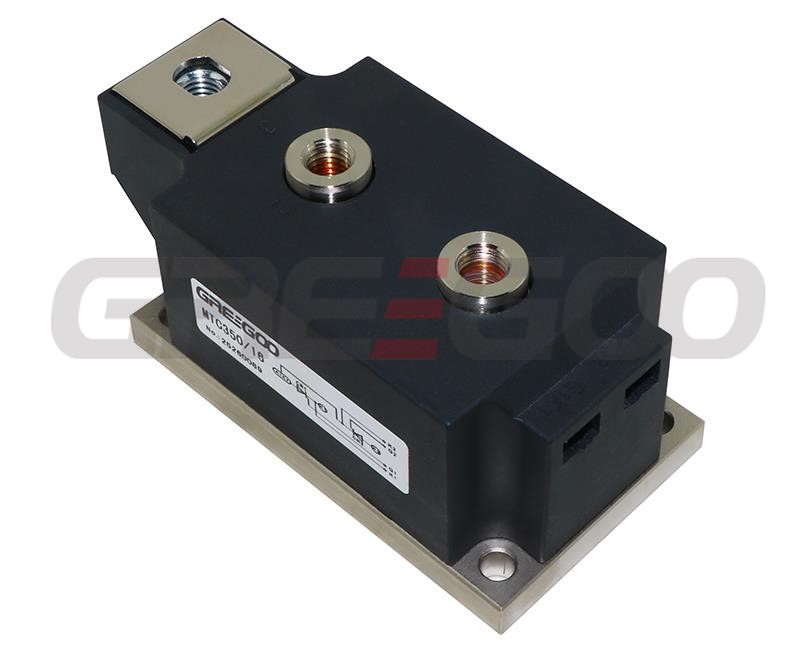

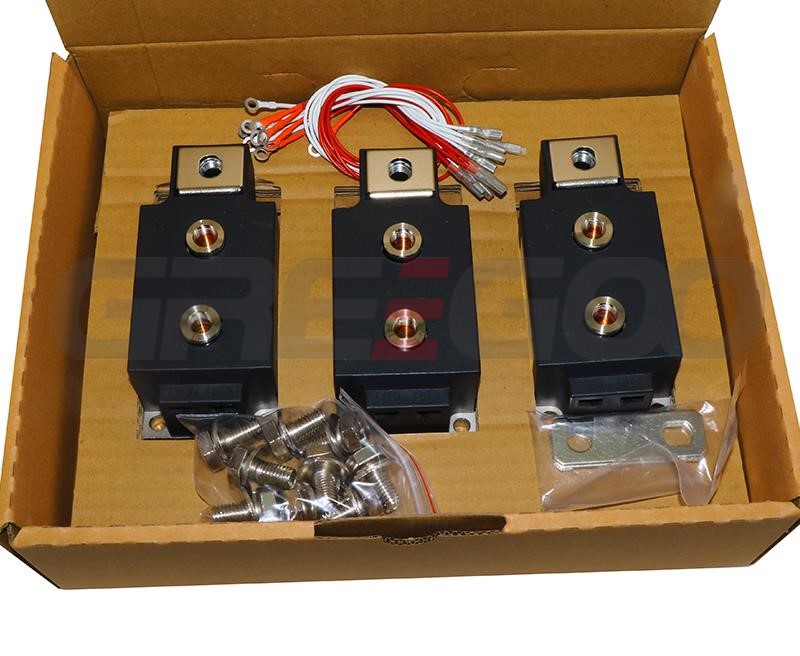

Dual thyristor module 300A 350A
| Symbol | Meaning |
| M | Module |
| T | Phase control thyristor |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
| VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/ITM | VTO | rT | Rjc | |
| IRRM | |||||||||||||
| V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | ℃/W | |
| 85℃ A | |||||||||||||
| MTC300,MTA300,MTK300,MTX300 | 600-1800 | 300 | 9.3 | 800 | 100 | 40 | 180 | 2.5 | 100 | 1.58/900 | 0.8 | 0.72 | 0.12 |
| MTC350,MTA350,MTK350,MTX350 | 600-1800 | 350 | 11 | 800 | 100 | 40 | 180 | 2.5 | 100 | 1.45/1050 | 0.8 | 0.5 | 0.09 |
