DC Solid State Relay built in Freewheeling Diode (GDZ06)
Home Products DC Load Solid State RelayDC output solid state relayDC Solid State Relay built in Freewheeling Diode (GDZ06)
Product Details

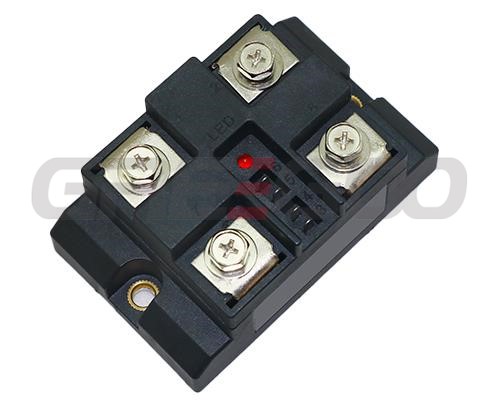

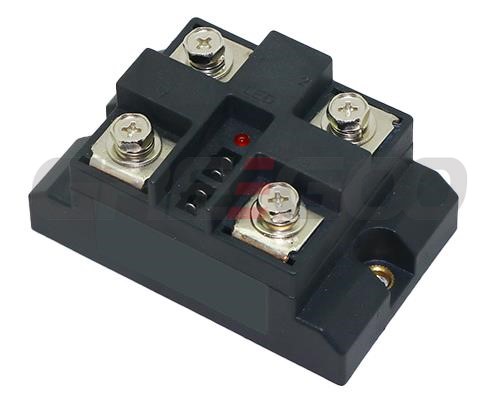

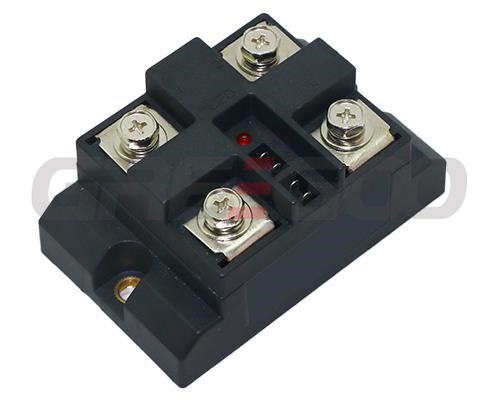

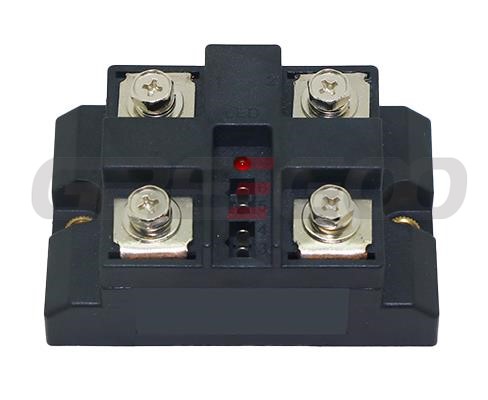

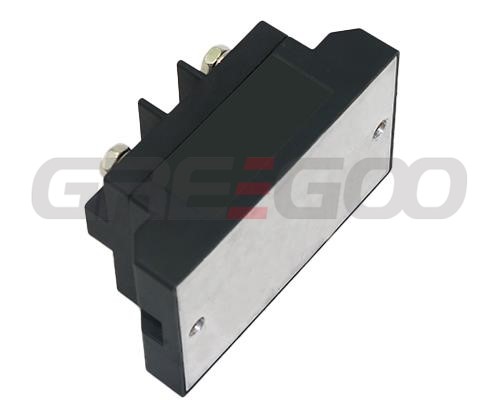

DC Solid State Relay built in Freewheeling Diode (GDZ06)
| Part Numbers | GDZ06 |
|---|---|
| Control Voltage | 12～15VDC / 18～36VDC |
| Control Current | 30～80mA / 25～70mA |
| Undervoltage Lock | 12V＜10VDC Lock / 18V＜16VDC Lock |
| Operating Indicator | LED |
| Maximum Voltage | 100VDC / 200VDC / 600VDC / 1200VDC |
| Maximum Current | 60, 80, 120, 150, 180, 200A |
| On-State Voltage Drop | ≤1.0～4.5V |
| Off-State Voltage | 100V / 200V / 600V / 1200V |
| Transient Voltage Protection | 80V / 180V / 480V / 1000V |
| Overcurrent Protection | Blank: No / L: Output Current 50% / Z: Output Current 100% |
| Switching Time | ≤0.08mS |
| Switching Characteristics | MOS or IGBT - Solid State Contactless Switching |
| Isolation Voltage | ≥1800～2500V |
| Insulation Voltage | ≥2000～2500V |
| Operating Temperature | －30～75℃ |
| Cooling Conditions | With heat sink plus fan forced cooling |
| Load Current Safety Factor | Resistive load: 2.5-4 times; Inductive load: 3-6 times |

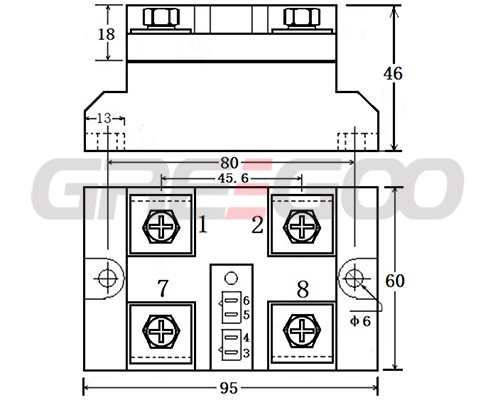

| Dimensions | 95×60×46mm |
| Part Numbers | GDZ06C |
|---|---|
| Control Power Supply | 12～15VDC 2W; 18～36VDC 2W |
| Control Voltage and Current | 4-32VDC 8-25mA |
| Undervoltage Lock | 12V＜10VDC Lock / 18V＜16VDC Lock |
| Operating Indicator | LED |
| Maximum Voltage | 100VDC / 200VDC / 600VDC / 1200VDC |
| Maximum Current | 60, 80, 120, 150, 180, 200A |
| On-State Voltage Drop | ≤1.0～4.5V |
| Off-State Voltage | 100V / 200V / 600V / 1200V |
| Transient Voltage Protection | 80V / 180V / 480V / 1000V |
| Overcurrent Protection | Blank: No / L: Output Current 50% / Z: Output Current 100% |
| Switching Time | ≤0.05mS |
| Switching Characteristics | MOS or IGBT - Solid State Contactless Switching |
| Isolation Voltage | ≥1800～2500V |
| Insulation Voltage | ≥2000～2500V |
| Operating Temperature | －30～75℃ |
| Cooling Conditions | With heat sink plus fan forced cooling |
| Load Current Safety Factor | Resistive load: 2.5-4 times; Inductive load: 3-6 times |
| Dimensions | 95×60×46mm |
Feature
- Electromagnetic photoelectric isolation between input and output circuits.
- Control signal compatible with PLC, TTL, PWM logic interfaces.
- LED indicates operating status.
- Solid-state, contactless output with fast switching speed, no sparks, and no arc phenomenon.
- Load side includes a freewheeling diode for protection and overcurrent protection, making it more suitable for inductive loads.
- Encapsulated in epoxy resin, corrosion-resistant, shock-resistant, ensuring stable and reliable switch operation.
- The product is mainly used for power control equipment of high-power DC inductive loads, such as DC generators, motors, solenoid valves, electromagnets, and other DC inductive loads.
Note

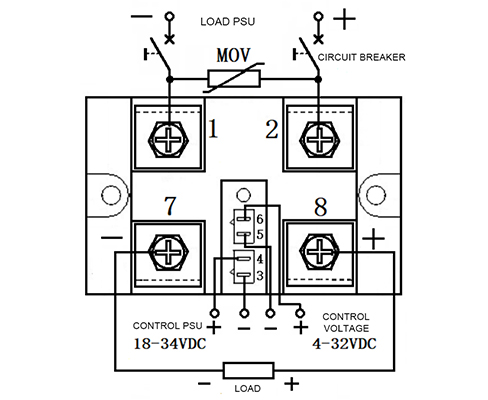

- Since a freewheeling diode is already installed inside the product, it can operate safely without overvoltage protection for inductive loads under the specified battery supply voltage. However, for a rectified power supply, it is best to connect a varistor across the power supply terminals.
- The normal sequence of operation is to connect the load power first and then apply the control signal voltage; otherwise, it may damage the internal chip.

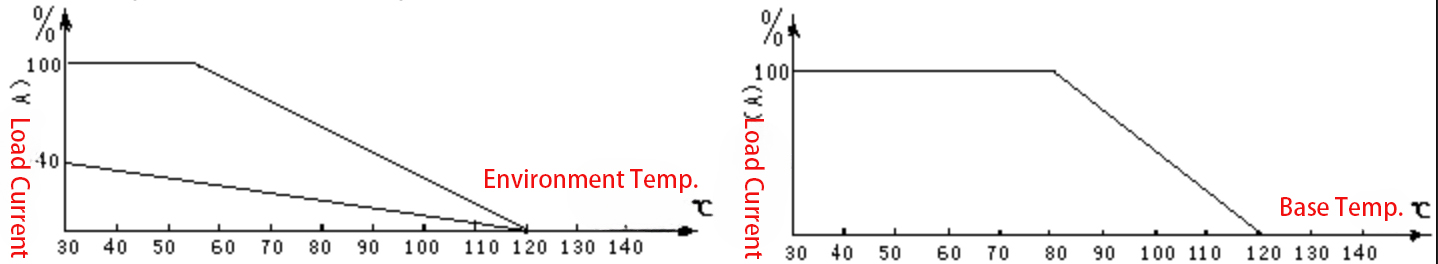

Temperature rating
