Product Details

DC solid state relay with over-current and over-voltage protection

1. Electromagnetic coupling isolation between input and output circuits.

2. Control signal and PLC, TTL logic interface.

3. Light-emitting diode indicates working status.

4. Built-in input under voltage protection, output transient overv oltage absorption protection.

5. Solid non-contact output, fast switching speed, no spark and no arcing on and off.

6. Epoxy resin encapsulation in one, anti-corrosion, fire and shock resistance, switch work stable and reliable.

7. The product is mainly used in the new energy vehicles of high-power DC appliances without contact switch. Such as PTC DC heater, battery charging and discharging, DC motor, solenoid valve and other switching switches.

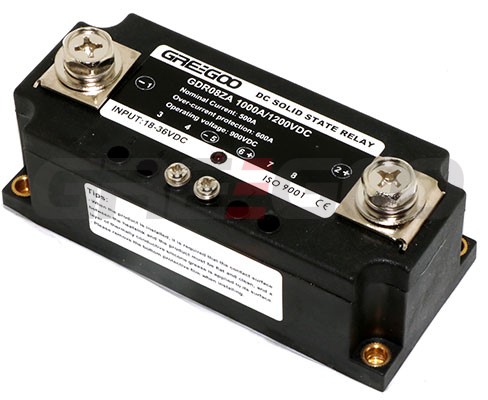

Model		GDR08LA (over-current protection), GDR08ZA (short-circuit protection)
Input parameters	Control power	12~15 VDC	18~36 VDC
	Control current	30~80 MA	25~70 MA
	Under voltage protection	＜10VDC self-locking	＜16VDC self-locking
	On-off time	＜ 250ΜS (120A-200A); ＜500μS (300A-2000A)
	Working indication	LED
Output parameters	Maximum output voltage	100VDC 200VDC 600VDC 1200VDC
	Max. load current	120, 150, 180, 200, 300...... 2000 A
	On-state voltage drop	≤1.0 ~ 4.0 V
	Off-state Voltage	≥100V ≥200V ≥600V ≥1200V
	Over voltage protection	Transient protection voltage are: 80V, 180V, 470V, 1000V
	Protection current	*Overcurrent: 50% of the marked current setting; Short circuit: 100% of the marked current setting*
	Switching characteristics	MOS or IGBT-solid-state non-contact switching characteristics

Performance Parameters	Isolation voltage	≥ 1800~2500 V
	Insulation voltage	≥ 2000 To 2500 V
	Operating temperature	－25～75℃
	Insulation resistance	100 MΩ
	Heat dissipation condition	With heat sink and then add fan strong cooling
	Safety factor of load current	2.5-4 Times for resistive load, 3-6 times for inductive load

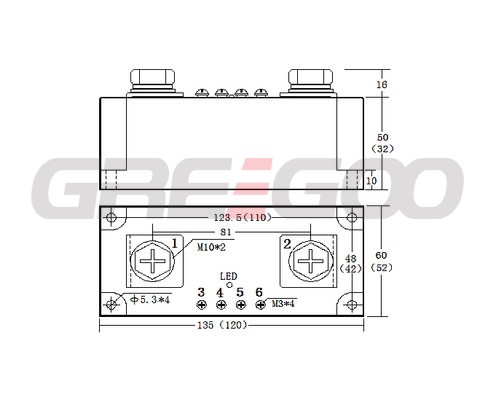

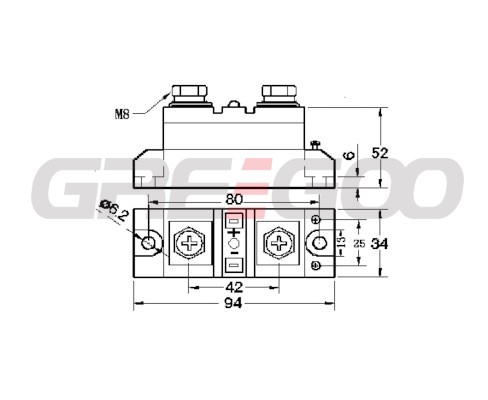

	Dimension	95×39×48 / 120×52×40 / 135×69×50 mm

Selection Tips:

Because the load voltage value in the parameter table is equal to the off-state voltage value, and the load current is the maximum peak current at room temperature, so there should be a margin when selecting the voltage and current of the product. When resistive load: current is selected according to 2.5~4 times load current, voltage is selected according to 2~2.5 times load power. Inductive load: the current is selected according to 3-7 times the load current, and the voltage is selected according to 2.5-3 times the load voltage.

According to the relationship between the load current and the ambient temperature, when the ambient temperature is high or the heat dissipation conditions are not good, also correspondingly increase the current capacity of the solid state relay.

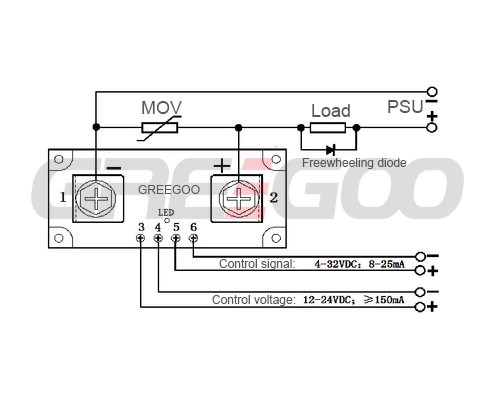

For inductive loads, a freewheeling diode must be connected to both ends of the load, and a varistor (MOV) must be connected to the output (1 to 1.5 times the supply voltage) to prevent damage to the solid-state switch from the high voltage generated during switching.

The series products are equipped with load over current and short-circuit protection functions, and when the load over current or short-circuit occurs in the main circuit, it can quickly close the self-locking, effectively protecting the solid-state switch itself from burning function.

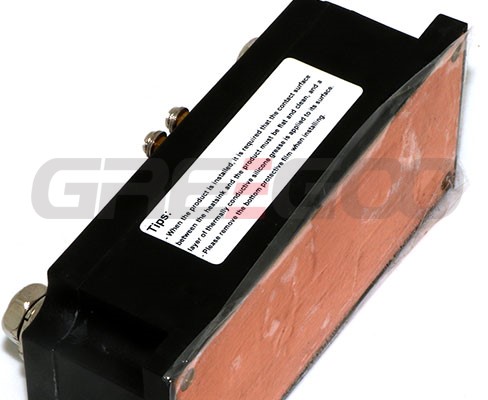

When the product is installed, it is required that the contact surface between the heat sink and this product must be flat and clean, and a layer of thermally conductive silicone grease must be applied to its surface, and finally the screws set with flat washers and spring washers are tightened and fixed symmetrically.
