Product Details

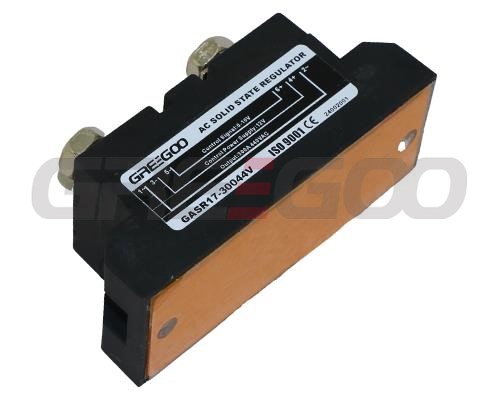

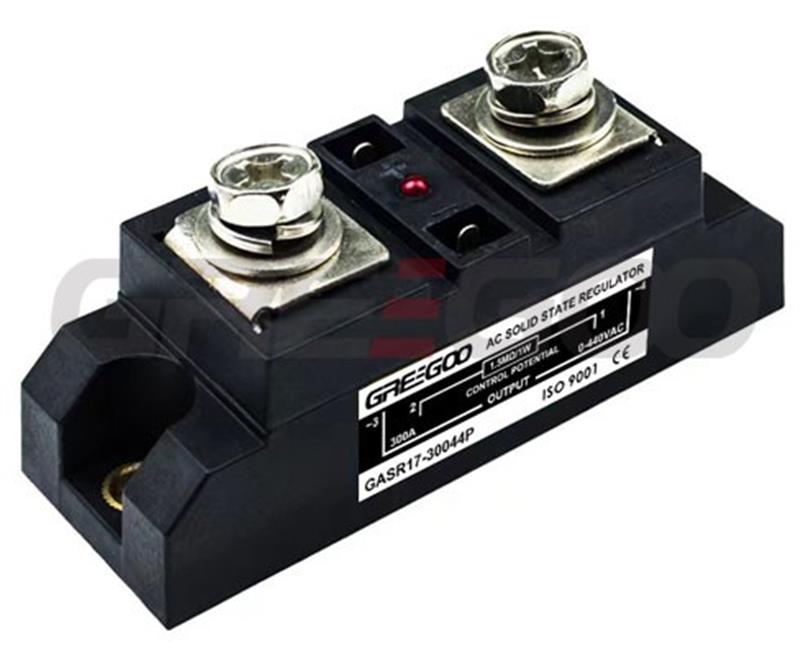

60A to 300A Single Phase AC Solid State Regulators

l Control side and output side with opto-isolation and non-isolation.

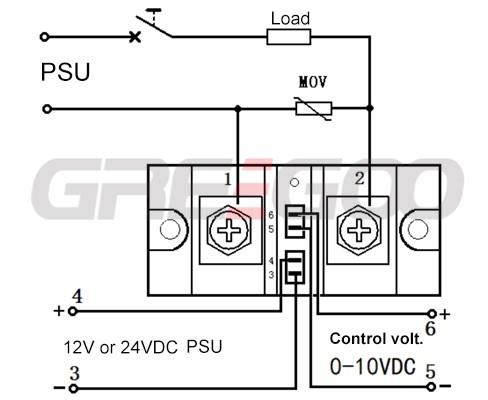

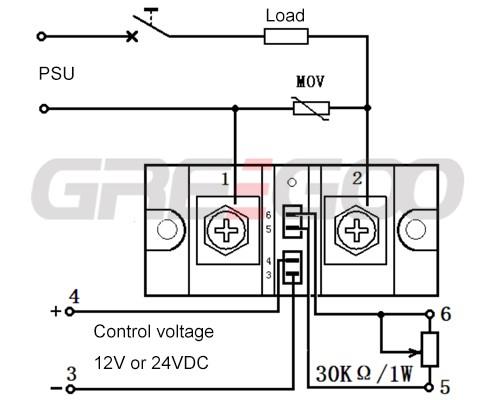

l Control method potentiometer or voltage signal two kinds.

l Silicon controlled phase shift output, wide adjustment range, no mechanical wear and tear, long service life.

l Two-wire control voltage regulation, easy to use and simple.

l Small size, in many cases can replace the contact regulator.

l Mainly used in industrial electric furnaces, electric ovens, lighting, fans and other equipment for temperature regulation, dimming, speed control.



Phase shift voltage regulator

MODEL RATED CURRENT VOLTAGE RANGE CONTROL CASING
GASR17-6044V 60A 0-440VAC 0-10V M-2
GASR17-6044P 60A 0-440VAC POTENTIOMETER M-2
GASR17-8044V 80A 0-440VAC 0-10V M-2
GASR17-8044P 80A 0-440VAC POTENTIOMETER M-2
GASR17-10044V 100A 0-440VAC 0-10V M-2
GASR17-10044P 100A 0-440VAC POTENTIOMETER M-2
GASR17-12044V 120A 0-440VAC 0-10V M-2
GASR17-12044P 120A 0-440VAC POTENTIOMETER M-2
GASR17-15044V 150A 0-440VAC 0-10V M-2
GASR17-15044P 150A 0-440VAC POTENTIOMETER M-2
GASR17-18044V 180A 0-440VAC 0-10V M-2
GASR17-18044P 180A 0-440VAC POTENTIOMETER M-2
GASR17-20044V 200A 0-440VAC 0-10V M-2
GASR17-20044P 200A 0-440VAC POTENTIOMETER M-2
GASR17-25044V 250A 0-440VAC 0-10V M-2
GASR17-25044P 250A 0-440VAC POTENTIOMETER M-2
GASR17-30044V 300A 0-440VAC 0-10V M-2
GASR17-30044P 300A 0-440VAC POTENTIOMETER M-2

GASR17-6024V 60A 0-240VAC 0-10V M-2
GASR17-6024P 60A 0-240VAC POTENTIOMETER M-2
GASR17-8024V 80A 0-240VAC 0-10V M-2
GASR17-8024P 80A 0-240VAC POTENTIOMETER M-2
GASR17-10024V 100A 0-240VAC 0-10V M-2
GASR17-10024P 100A 0-240VAC POTENTIOMETER M-2
GASR17-12024V 120A 0-240VAC 0-10V M-2
GASR17-12024P 120A 0-240VAC POTENTIOMETER M-2
GASR17-15024V 150A 0-240VAC 0-10V M-2
GASR17-15024P 150A 0-240VAC POTENTIOMETER M-2
GASR17-18024V 180A 0-240VAC 0-10V M-2
GASR17-18024P 180A 0-240VAC POTENTIOMETER M-2
GASR17-20024V 200A 0-240VAC 0-10V M-2
GASR17-20024P 200A 0-240VAC POTENTIOMETER M-2
GASR17-25024V 250A 0-240VAC 0-10V M-2
GASR17-25024P 250A 0-240VAC POTENTIOMETER M-2
GASR17-30024V 300A 0-240VAC 0-10V M-2
GASR17-30024P 300A 0-240VAC POTENTIOMETER M-2

4-20mA control can be made against customer's requirement.

Cyclic voltage regulator, single phase can be made against customer's requirement.

Specification
Model GASR17-P GASR17-V/A
Load voltage 0 - 240V or 0-440V 0 - 240V or 0-440V
Maximum load current 60~300A 60~300A
Control mode Potentiometer 470~560KΩ/ 1W 0～10V/4-20mA
Off-state voltage ≥ 400 V ≥ 800 V
Isolation voltage Non-electrically isolated from control and output ≥ 1800 V
Insulation voltage ≥2000 V ≥2000 V
Insulation resistance ≥100 MΩ ≥100 MΩ
Power frequency 50~60 HZ 50~60 HZ
Operating Temperature -20～75℃ -20～75℃
Heat dissipation conditions ≥20A with heat sink
≥30A heatsink plus fan strong cooling		 ≥20A with heat sink
≥30A heatsink plus fan strong cooling
Load current safety factor Inductive load 3~4 times;
Resistive load 2~3 times		 Inductive load 3~4 times;
Resistive load 2~3 times

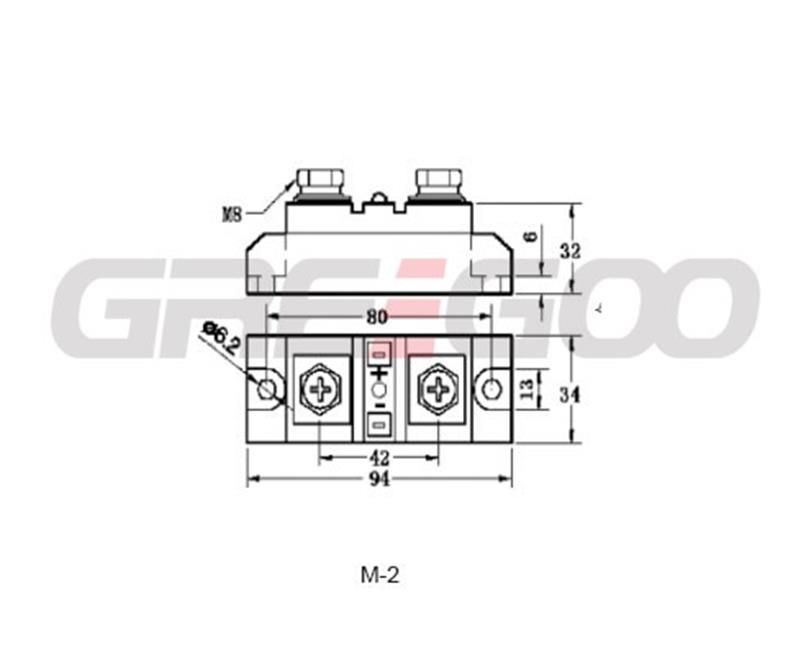

Dimensions: 94×34×32 mm  94×34×32 mm
