Product Details

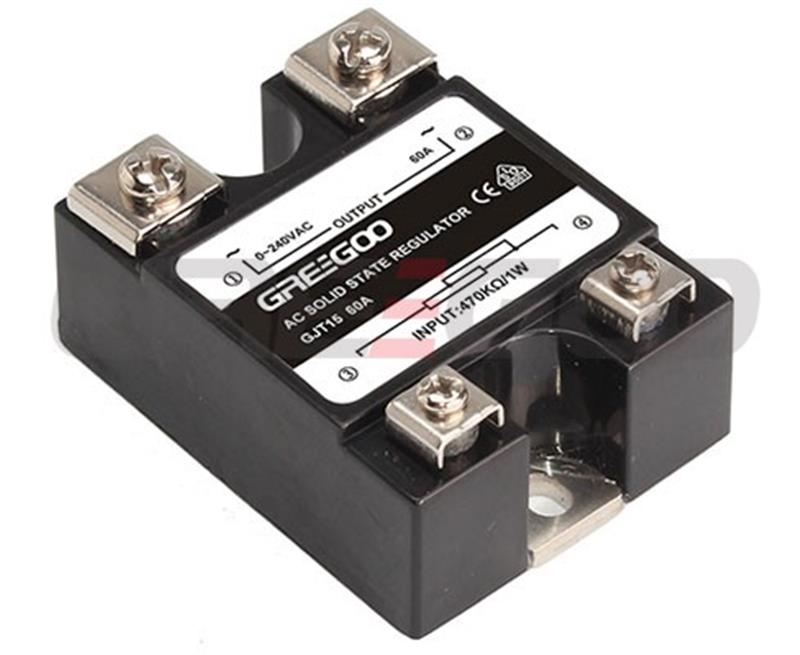

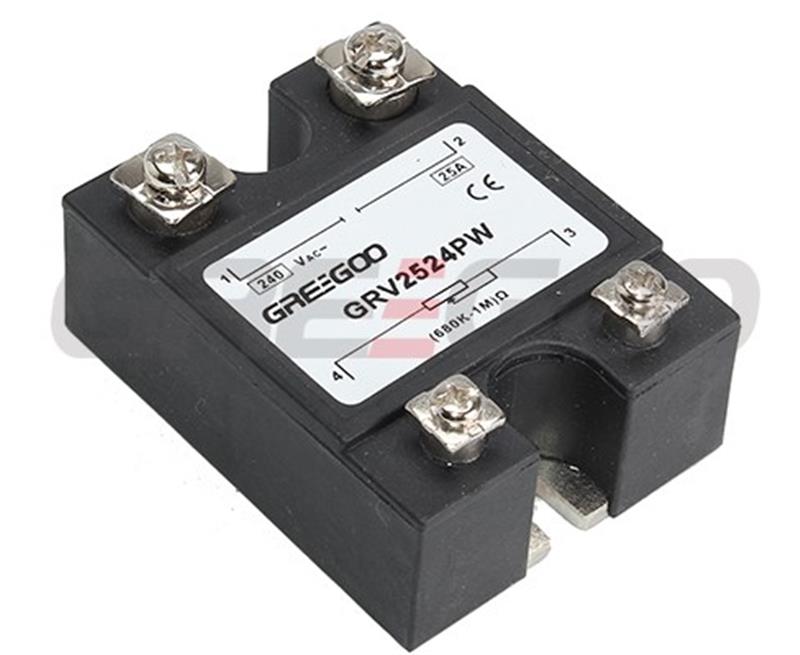

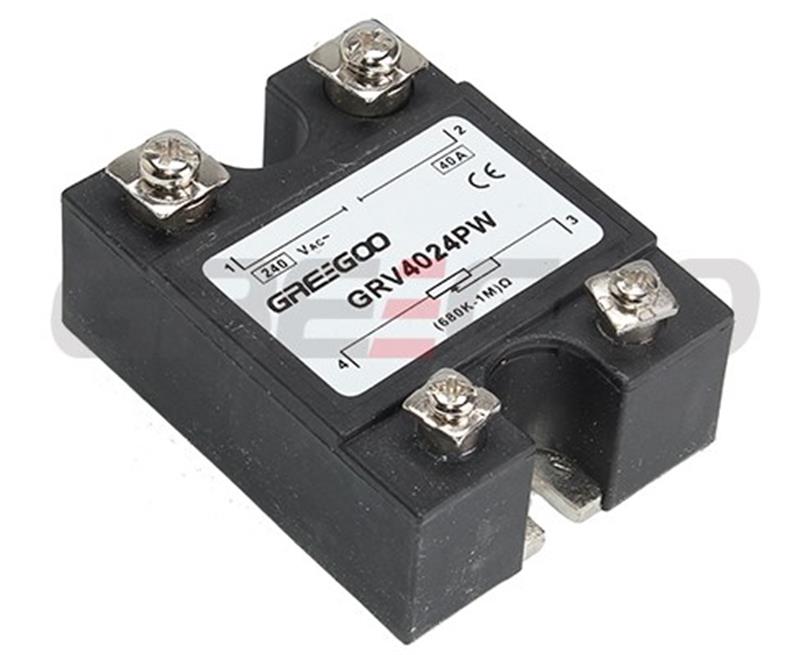

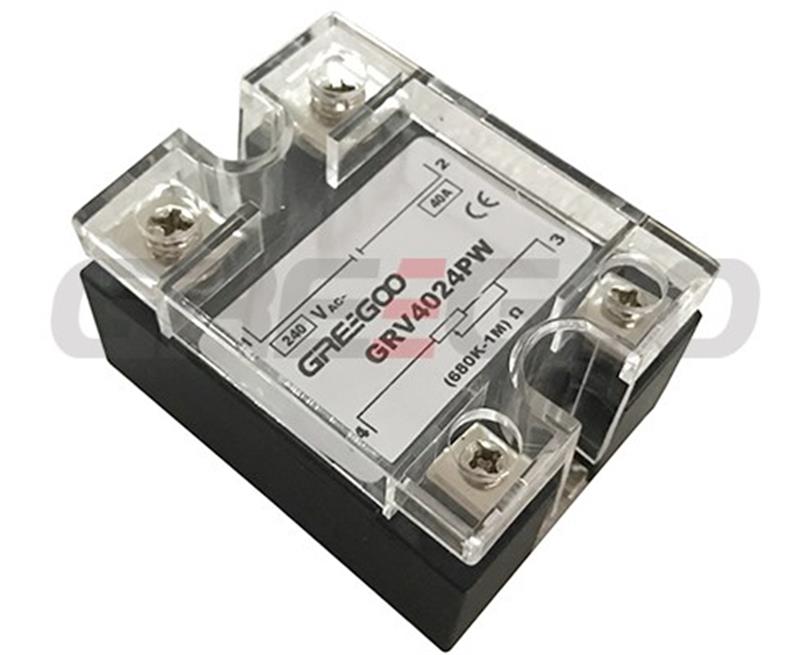

Solid state voltage regulator 10A to 180A

Feature:

Control side and output side with opto-isolation and non-isolation.
Control method potentiometer or voltage signal two kinds.
Silicon controlled phase shift output, wide adjustment range, no mechanical wear and tear, long service life.
Two-wire control voltage regulation, easy to use and simple.
Small size, in many cases can replace the contact regulator.
Mainly used in industrial electric furnaces, electric ovens, lighting, fans and other equipment for temperature regulation, dimming, speed control.

Phase shift voltage regulator, Analog control SSR relay, Solid state regulator.

MODEL	RATED CURRENT	VOLTAGE RANGE	CONTROL	CASING
4-20mA input
GASR15-1024A	10A	0-240VAC	4-20mA	J-7
GASR15-2024A	20A	0-240VAC	4-20mA	J-7
GASR15-3024A	30A	0-240VAC	4-20mA	J-7
GASR15-4024A	40A	0-240VAC	4-20mA	J-7
GASR15-5024A	50A	0-240VAC	4-20mA	J-7
GASR15-6024A	60A	0-240VAC	4-20mA	J-7
GASR15-8024A	80A	0-240VAC	4-20mA	J-7
GASR15-10024A	100A	0-240VAC	4-20mA	J-7
GASR15-12024A	120A	0-240VAC	4-20mA	J-7
GASR15-15024A	150A	0-240VAC	4-20mA	J-7
GASR15-18024A	180A	0-240VAC	4-20mA	J-7
GASR15-1044A	10A	0-440VAC	4-20mA	J-7
GASR15-2044A	20A	0-440VAC	4-20mA	J-7
GASR15-3044A	30A	0-440VAC	4-20mA	J-7
GASR15-4044A	40A	0-440VAC	4-20mA	J-7
GASR15-5044A	50A	0-440VAC	4-20mA	J-7
GASR15-6044A	60A	0-440VAC	4-20mA	J-7
GASR15-8044A	80A	0-440VAC	4-20mA	J-7
GASR15-10044A	100A	0-440VAC	4-20mA	J-7
GASR15-12044A	120A	0-440VAC	4-20mA	J-7
GASR15-15044A	150A	0-440VAC	4-20mA	J-7
GASR15-18044A	180A	0-440VAC	4-20mA	J-7
0-10V input
GVSR15-1024V	10A	0-240VAC	0-10V	J-7
GVSR15-2024V	20A	0-240VAC	0-10V	J-7
GVSR15-3024V	30A	0-240VAC	0-10V	J-7
GVSR15-4024V	40A	0-240VAC	0-10V	J-7
GVSR15-5024V	50A	0-240VAC	0-10V	J-7
GVSR15-6024V	60A	0-240VAC	0-10V	J-7
GVSR15-8024V	80A	0-240VAC	0-10V	J-7
GVSR15-10024V	100A	0-240VAC	0-10V	J-7
GVSR15-12024V	120A	0-240VAC	0-10V	J-7
GVSR15-15024V	150A	0-240VAC	0-10V	J-7
GVSR15-18024V	180A	0-240VAC	0-10V	J-7
GVSR15-1044V	10A	0-440VAC	0-10V	J-7
GVSR15-2044V	20A	0-440VAC	0-10V	J-7
GVSR15-3044V	30A	0-440VAC	0-10V	J-7
GVSR15-4044V	40A	0-440VAC	0-10V	J-7
GVSR15-5044V	50A	0-440VAC	0-10V	J-7
GVSR15-6044V	60A	0-440VAC	0-10V	J-7
GVSR15-8044V	80A	0-440VAC	0-10V	J-7
GVSR15-10044V	100A	0-440VAC	0-10V	J-7
GVSR15-12044V	120A	0-440VAC	0-10V	J-7
GVSR15-15044V	150A	0-440VAC	0-10V	J-7
GVSR15-18044V	180A	0-440VAC	0-10V	J-7
Potentiometer signal input
GPSR15-1024P	10A	0-240VAC	POTENTIOMETER	J-7
GPSR15-2024P	20A	0-240VAC	POTENTIOMETER	J-7
GPSR15-3024P	30A	0-240VAC	POTENTIOMETER	J-7
GPSR15-4024P	40A	0-240VAC	POTENTIOMETER	J-7
GPSR15-5024P	50A	0-240VAC	POTENTIOMETER	J-7
GPSR15-6024P	60A	0-240VAC	POTENTIOMETER	J-7
GPSR15-8024P	80A	0-240VAC	POTENTIOMETER	J-7
GPSR15-10024P	100A	0-240VAC	POTENTIOMETER	J-7
GPSR15-12024P	120A	0-240VAC	POTENTIOMETER	J-7
GPSR15-15024P	150A	0-240VAC	POTENTIOMETER	J-7
GPSR15-18024P	180A	0-240VAC	POTENTIOMETER	J-7
GPSR15-1044P	10A	0-440VAC	POTENTIOMETER	J-7
GPSR15-2044P	20A	0-440VAC	POTENTIOMETER	J-7
GPSR15-3044P	30A	0-440VAC	POTENTIOMETER	J-7
GPSR15-4044P	40A	0-440VAC	POTENTIOMETER	J-7
GPSR15-5044P	50A	0-440VAC	POTENTIOMETER	J-7
GPSR15-6044P	60A	0-440VAC	POTENTIOMETER	J-7
GPSR15-8044P	80A	0-440VAC	POTENTIOMETER	J-7
GPSR15-10044P	100A	0-440VAC	POTENTIOMETER	J-7
GPSR15-12044P	120A	0-440VAC	POTENTIOMETER	J-7
GPSR15-15044P	150A	0-440VAC	POTENTIOMETER	J-7
GPSR15-18044P	180A	0-440VAC	POTENTIOMETER	J-7

Specification

Model	GASR15-P	GASR15-V	GASR15-A
Load voltage	0 - 240V or 0-440V	0 - 240V or 0-440V	0 - 240V or 0-440V
Maximum load current	10~180A	10~180A	10~180A
Control mode	External potentiometer 470~560KΩ/1W	0～10V	4-20mA
Off-state voltage	≥ 400 V	≥ 800 V	≥ 800 V
Isolation voltage	Non isolated	≥ 1800 V	≥ 1800 V
Insulation voltage	≥2000 V	≥2000 V	≥2000 V
Insulation resistance	≥100 MΩ	≥100 MΩ	≥100 MΩ
Power frequency	50~60 HZ	50~60 HZ	50~60 HZ
Operating Temperature	-20～75℃	-20～75℃	-20～75℃
Heat dissipation conditions	≥20A with heat sink, ≥30A plus fan strong cooling	≥20A with heat sink, ≥30A plus fan strong cooling	≥20A with heat sink, ≥30A plus fan strong cooling
Load current safety factor	Inductive load 3~4 times; Resistive load 2~3 times	Inductive load 3~4 times; Resistive load 2~3 times	Inductive load 3~4 times; Resistive load 2~3 times
Dimension	59×45×24mm	59×45×24mm	59×45×24mm
