LXK-Φ80~Φ240 Zero Sequence Current Transformer
|
Transformation ratio A
|
Relay type |
Connection type of
relay coil
|
Relay scale value
|
Primary residual current
of relay acting A
|
Weight kg |
| 60/1 | DD-11/60 | Series connection | 15x1 | 2.4-2.5 | 4.5 |
| 30x1 | |||||
| Parallel connection | 15x2 | 3-5 | |||
| 30x2 | |||||
| DD-1/60 | Series connection | 15x1 | 3-5 | ||
| 30x1 | |||||
| Parallel connection | 15x2 | 3-6 | |||
| 30x2 |
| Transformation ratio A | Accuracy class | Rated output VA |
| 60/1 | 5P10 | 1 |
| 75/1 | 1.5 | |
| 100/1 | 2.5 | |
| 150/1 | 2.5 | |
| 200/1 | 3.75 | |
| 300/1 | 7.5 | |
| 150/1 | 2 | |
| 200/1 | 2.5 | |
| 300/1 | 5 | |
| 400/1 | 10 | |
| 500/1 | 12.5 | |
| 600/1 | 15 |

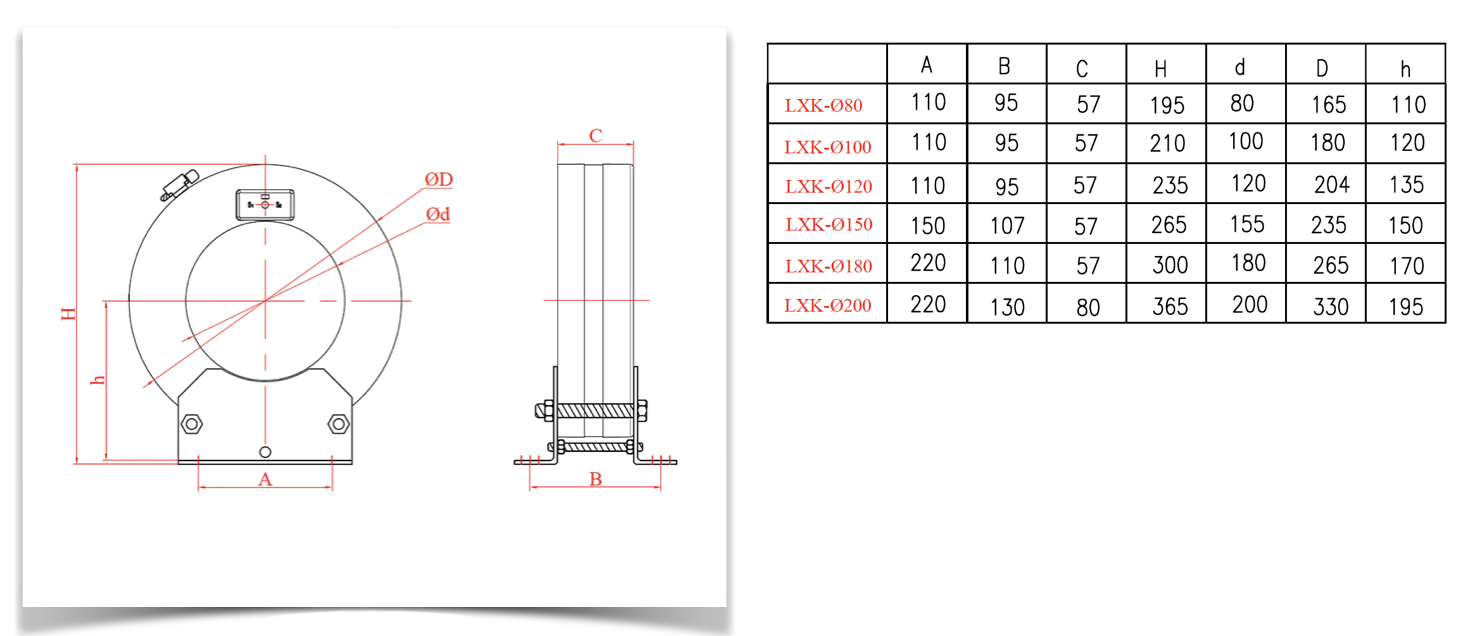

Dimension
