Product Details

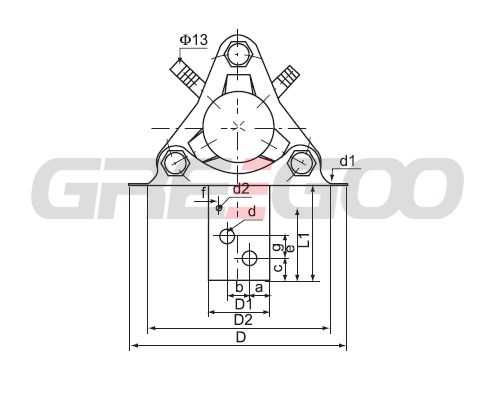

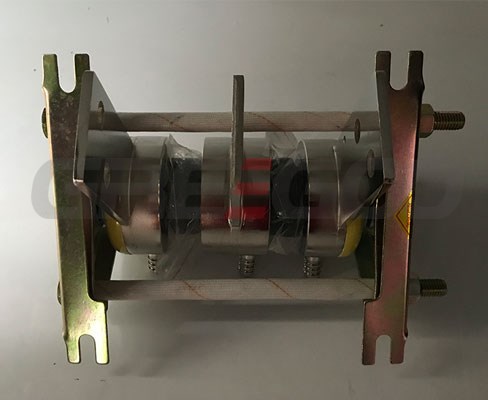

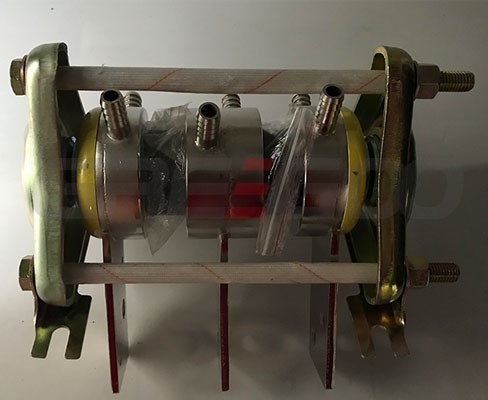

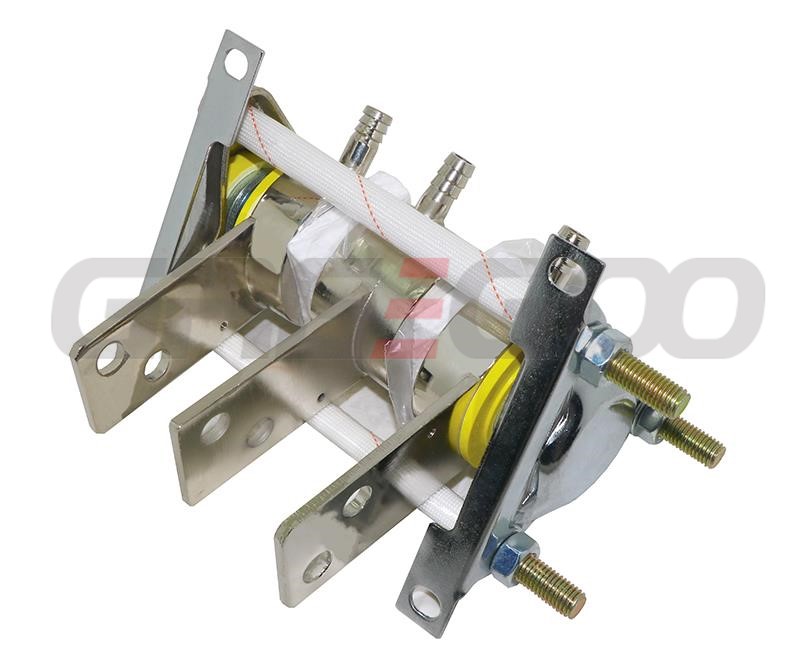

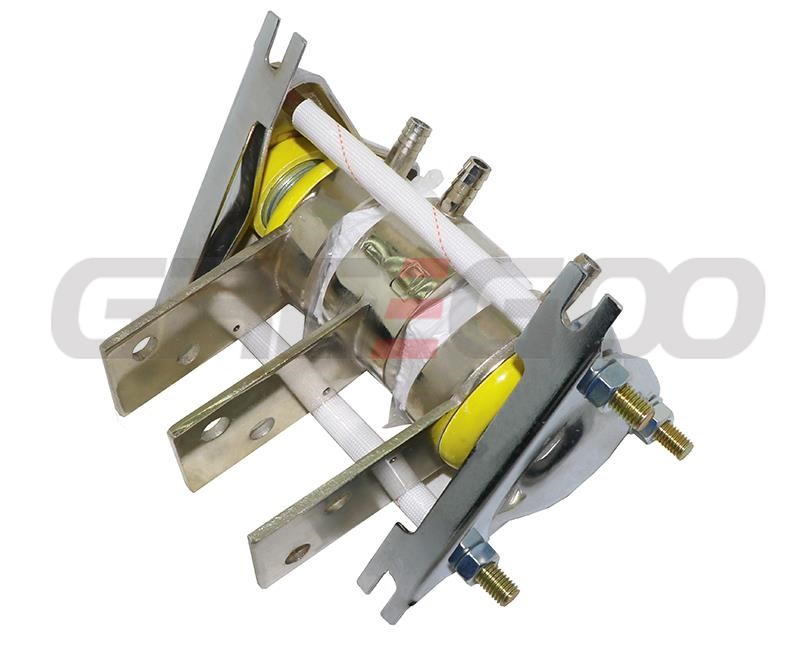

Water cooling heatsink
| Type | Surface Diameter | Applicable case surface | Mounting force (KN) | Weight (kgs) | Thermal resistance (℃/W) |
| SS13BL | 68 | 40-55 | 15-34 | ≥1.7 | 0.015 |
| SS14BL | 84 | 50-73 | 18-47 | ≥2.2 | 0.013 |
Applicable range: 500-1200A, water flow ≥ 6L/min, 1500-2000A, water flow ≥ 7L/min.
