Three phase bridge rectifier SQL 100/150/200A
Home Products Diode Bridge Rectifier3 phase bridge rectifier (Fast on type)Three phase bridge rectifier SQL 100/150/200A
Product Details

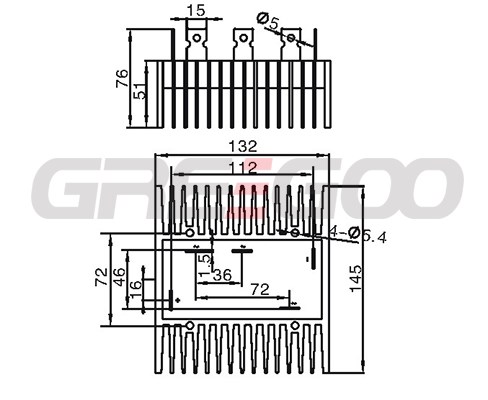

Three phase bridge rectifier SQL 100/150/200A
| Type | I F | V F | V RRM | I RRM1 | I RRM2 | I FSM | Tj | Tstg | Gooling |
| A | V | V | mA | mA | A | ℃ | ℃ | ||
| SQL18a | 100 | 1.4 | 100-1400 | 0.2 | 20 | 360 | -40~ 125 | -40~ 130 | air gooling |
| SQL20 | 150 | 1.4 | 100-1400 | 0.2 | 20 | 600 | -40~ 125 | -40~ 130 | air gooling |
| SQL22 | 200 | 1.4 | 100-1400 | 0.2 | 20 | 800 | -40~ 125 | -40~ 130 | air gooling |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
