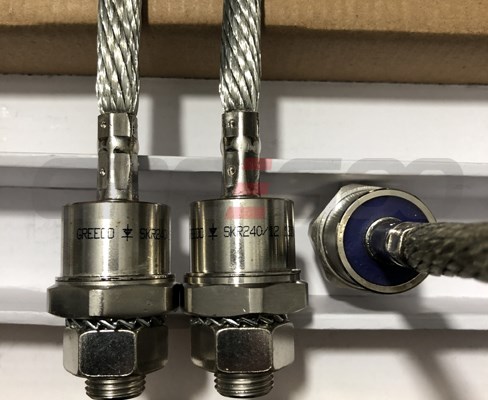

Standard Recovery Diode SKN/R240
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||
| SKN240 | 240 | 1.35 | 720 | 400 | 200-1800 | ≤15 | ≤0.2 | ≤25 | 0.24 | SKD9 |
| SKR240 | 240 | 1.35 | 720 | 400 | 200-1800 | ≤15 | ≤0.2 | ≤25 | 0.24 | |
