Standard Recovery Diode 100/150U(R)L
Home Products Stud Rectifier DiodeVishay Stud DiodeStandard Recovery Diode 100/150U(R)L
Product Details
Standard Recovery Diode 100/150U(R)L
| Type | IF(AV) | VFM/IFM | IFRMS | VRRM | IRRM | Rjc | M2 | Wt | Outline | |
| THS55℃ | 25℃ | |||||||||
| A | V | A | A | V | mA | ℃/W | N/m | kg | ||

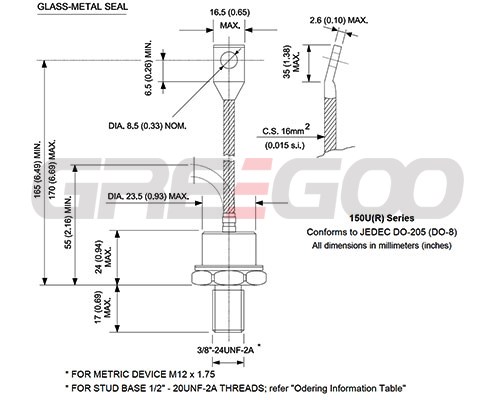

| 100U(R)L | 100 | 1.8 | 300 | 160 | 200-1600 | ≤15 | ≤0.3 | ≤12 | 0.12 | DO-8 |
| 150U(R)L | 150 | 1.5 | 450 | 240 | 200-1600 | ≤15 | ≤0.3 | ≤12 | 0.12 | |
