Single phase bridge rectifier QL 25/35/50A
Home Products Diode Bridge RectifierSingle phase bridge rectifier (Fast-on type)Single phase bridge rectifier QL 25/35/50A
Product Details

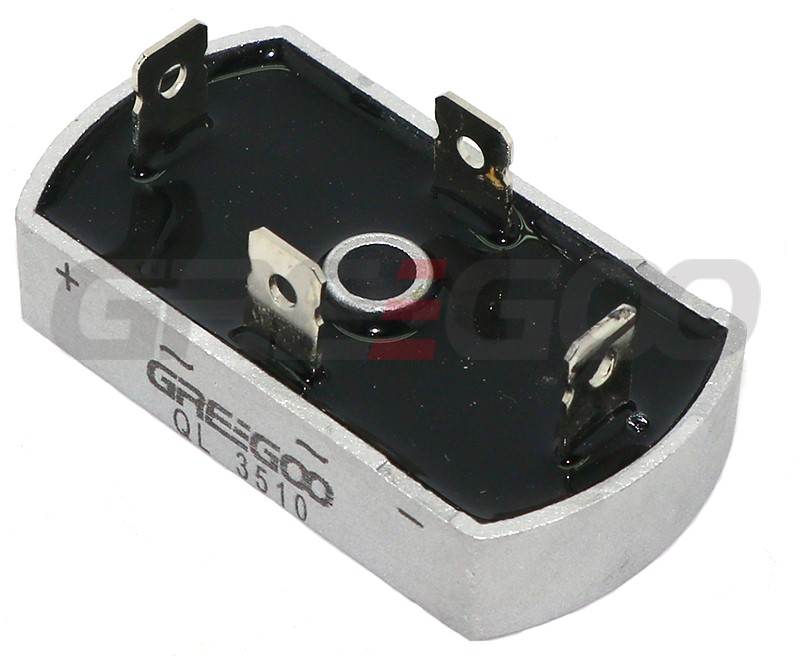

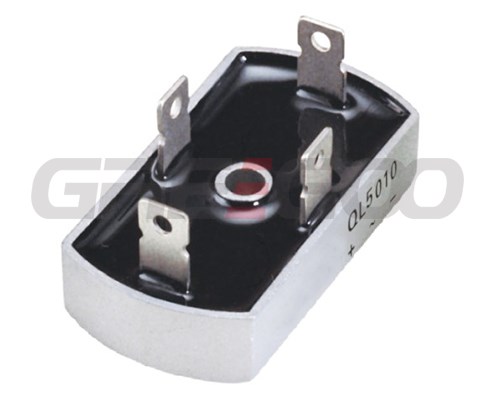

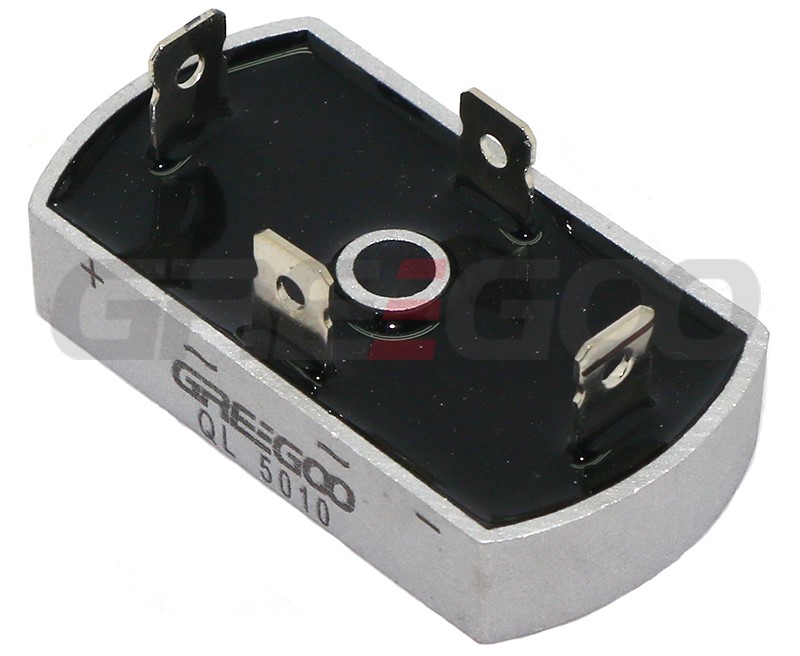

Single phase bridge rectifier QL 25/35/50A
| Order # | V RRM | I O | @T | I FSM |
| V | A | ℃ | A | |
| QL2502 | 200 | 25 | 55 | 300 |
| QL2506 | 600 | 25 | 55 | 300 |
| QL2510 | 1000 | 25 | 55 | 300 |
| QL3502 | 200 | 35 | 55 | 400 |
| QL3506 | 600 | 35 | 55 | 400 |
| QL3510 | 1000 | 35 | 55 | 400 |
| QL5002 | 200 | 50 | 55 | 500 |
| QL5006 | 600 | 50 | 55 | 500 |
| QL5010 | 1000 | 50 | 55 | 500 |
