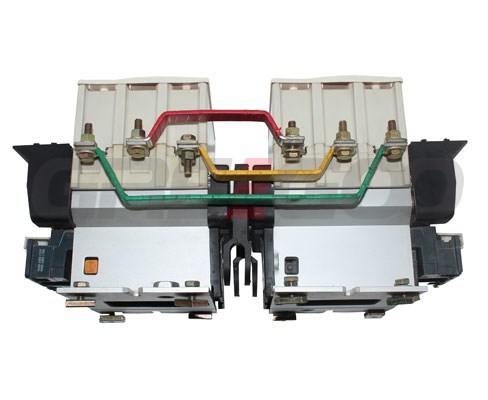

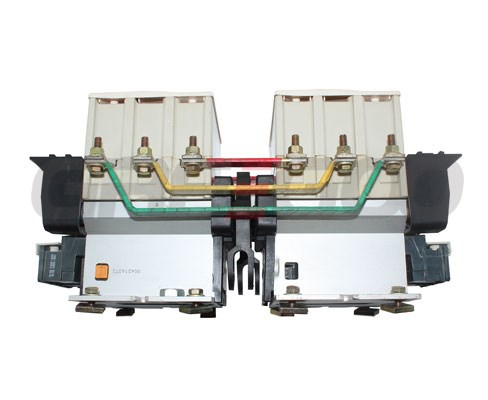

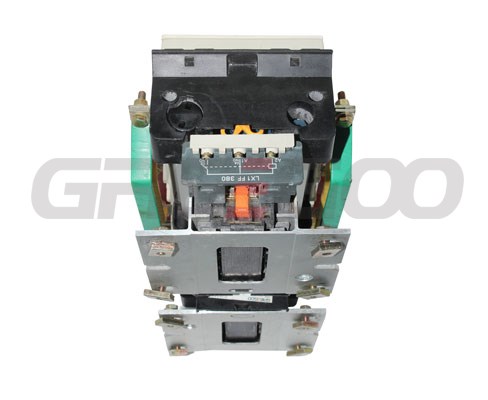

Reversing Magnetic Latching Contactors (GCR2-F)
| Rated operational current in AC-3(q≤55℃) | Rated operational power (standard motor power ratings) | Reference | |||||||||||||
| 220V240V | 380V400V | 415V | 440V | 500V | 660V690V | ||||||||||
| 440V | 500V | 660V | |||||||||||||
| 690V | kW | HP | kW | HP | kW | HP | kW | HP | kW | HP | kW | HP | |||
| 150 | 35 | 130 | 40 | 54 | 75 | 100 | 80 | 110 | 80 | 110 | 100 | - | 65 | - | GCR2-F1503 |
| 150 | 35 | 130 | 40 | 54 | 75 | 100 | 80 | 110 | 80 | 110 | 100 | - | 65 | - | GCR2-F1504 |
| 185 | 175 | 140 | 55 | 75 | 90 | 185 | 100 | 136 | 100 | 136 | 110 | - | 100 | 136 | GCR2-F1853 |
| 185 | 175 | 140 | 55 | 75 | 90 | 185 | 100 | 136 | 100 | 136 | 110 | - | 100 | 136 | GCR2-F1854 |
| 265 | 245 | 230 | 75 | 100 | 132 | 180 | 140 | 180 | 140 | 190 | 160 | - | 147 | 200 | GCR2-F2653 |
| 265 | 245 | 230 | 75 | 100 | 132 | 180 | 140 | 180 | 140 | 190 | 160 | - | 147 | 200 | GCR2-F2654 |
| 400 | 385 | 365 | 110 | 150 | 200 | 270 | 220 | 300 | 250 | 340 | 280 | - | 185 | 250 | GCR2-F4003 |
| 400 | 385 | 365 | 110 | 150 | 200 | 270 | 220 | 300 | 250 | 340 | 280 | - | 185 | 250 | GCR2-F4004 |
| 500 | 500 | 435 | 147 | 200 | 250 | 340 | 280 | 380 | 295 | 400 | 335 | - | 335 | - | GCR2-F5003 |
| 500 | 500 | 435 | 147 | 200 | 250 | 340 | 280 | 380 | 295 | 400 | 335 | - | 335 | - | GCR2-F5004 |
| 630 | 540 | 470 | 200 | 270 | 335 | 450 | 375 | 500 | 400 | 545 | 450 | 610 | 450 | 610 | GCR2-F6303 |
| 630 | 540 | 470 | 200 | 270 | 335 | 450 | 375 | 500 | 400 | 545 | 450 | 610 | 450 | 610 | GCR2-F6304 |
