Photoelectric Sensor G12
Home Products Proximity Photoelectric SensorPhotoelectric SensorsPhotoelectric Sensor G12
Product Details
Photoelectric Sensor G12
| Model NO. | Detection distance | Working voltage | Output | Detection way | |
| Form | State | ||||
| G12 -3A 07NA | 7cm | DC10-30V | NPN | NO | Diffuse type |
| G12 -3A 07NB | 7cm | DC10-30V | NPN | NC | Diffuse type |

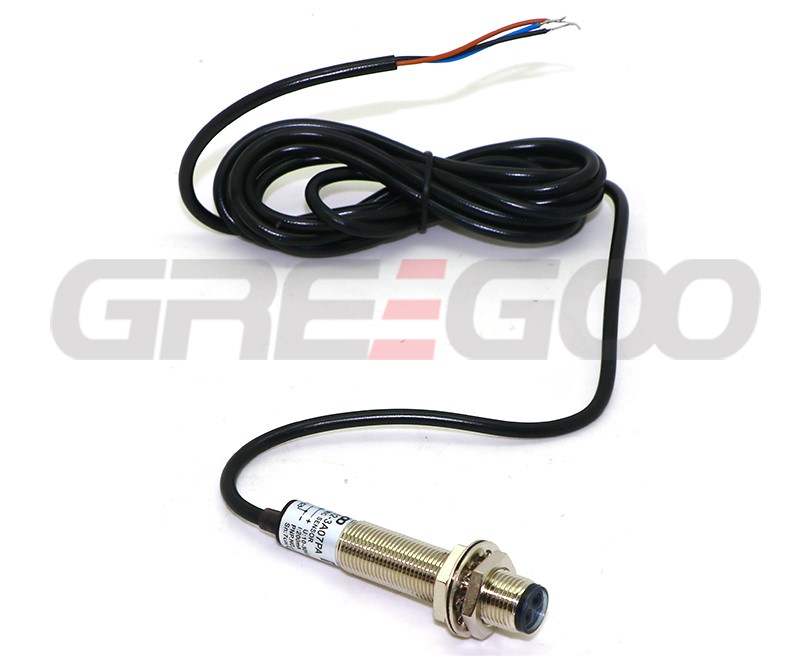

| G12 -3A 07PA | 7cm | DC10-30V | PNP | NO | Diffuse type |
| G12 -3A 07PB | 7cm | DC10-30V | PNP | NC | Diffuse type |
| G12-3B1NA | 1m | DC10-30V | NPN | NO | Retroreflective |
| G12-3B1NB | 1m | DC10-30V | NPN | NC | Retroreflective |

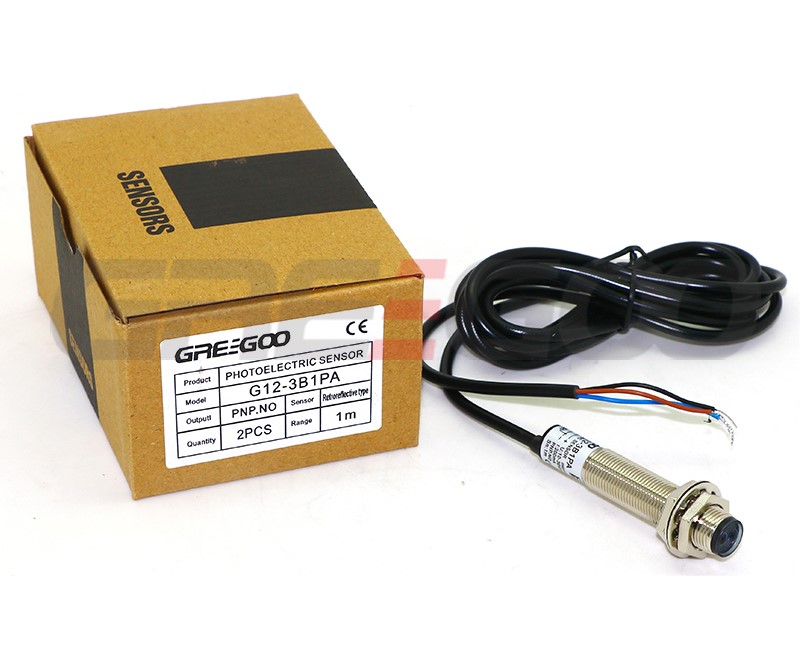

| G12-3B1PA | 1m | DC10-30V | PNP | NO | Retroreflective |
| G12-3B1PB | 1m | DC10-30V | PNP | NC | Retroreflective |
| G12 -3C 3NA | 3m | DC10-30V | NPN | NO | Through beam |

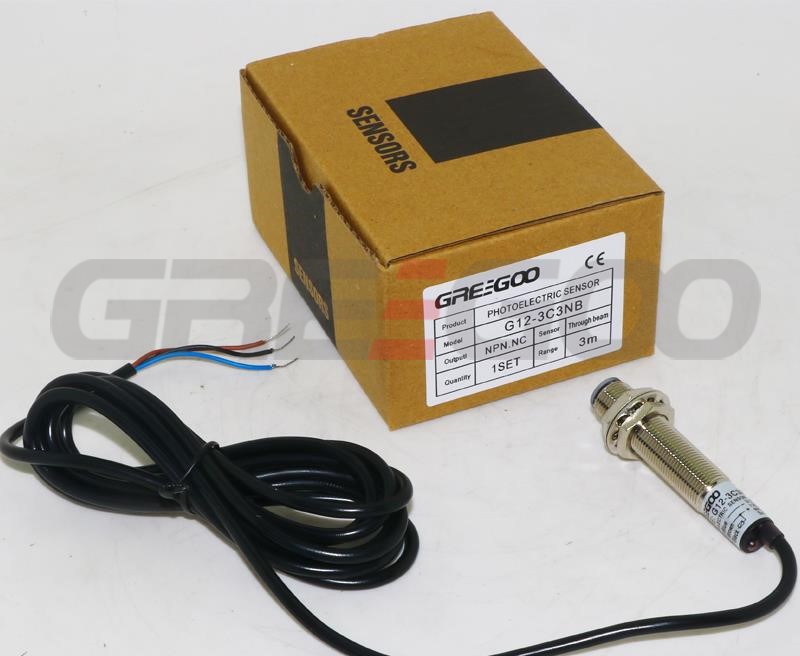

| G12 -3C 3NB | 3m | DC10-30V | NPN | NC | Through beam |
| G12 -3C 3PA | 3m | DC10-30V | PNP | NO | Through beam |

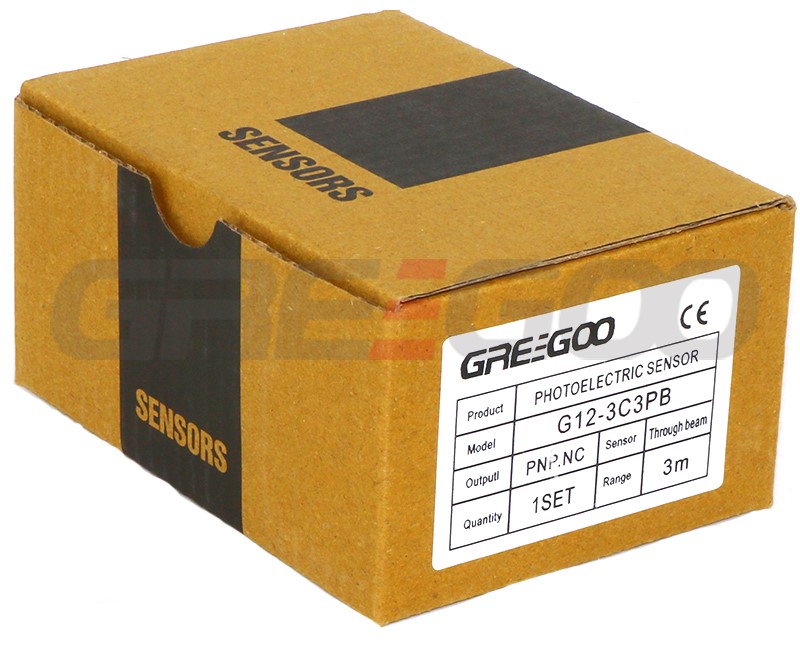

| G12 -3C 3PB | 3m | DC10-30V | PNP | NC | Through beam |
