Magnetic Contactors (CJX7 A)
Home Products Motor ProtectionElectrical AC ContactorMagnetic Contactors (CJX7 A)
Product Details

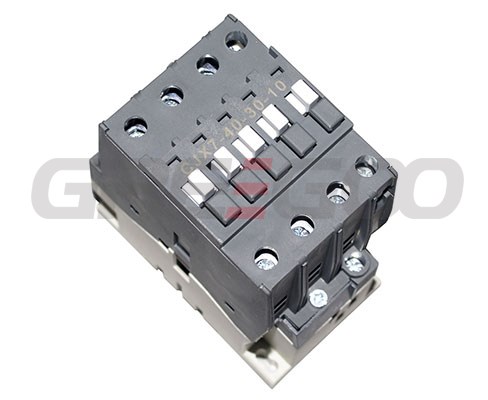

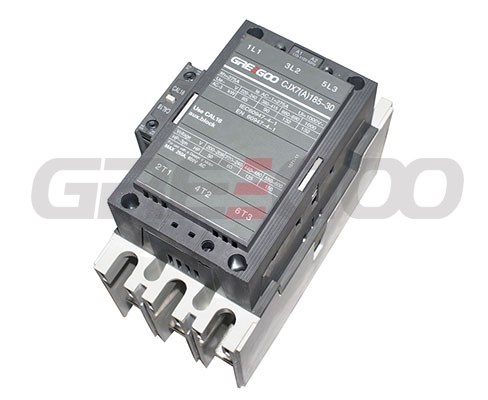

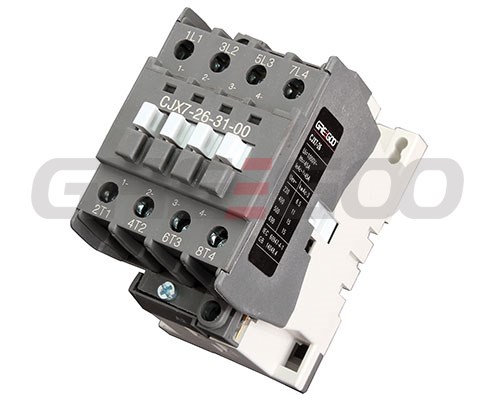

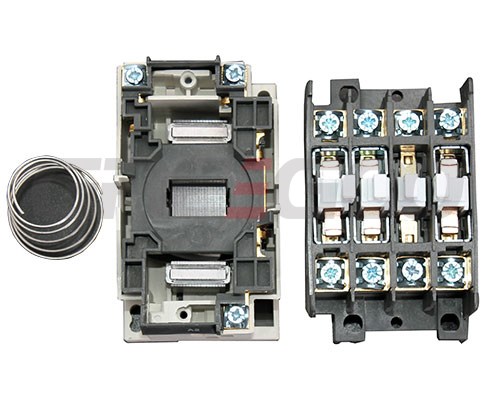

Magnetic Contactors (CJX7 A)
| Type | Frame | Rated insulatio | Convensional free | AC-3 rated operating current Ie A | Control the max.power KW of generator | ||||
| code | voltage UiV | air heat current ith | 220V | 380V | 660V | 220V | 380V | 660V | |
| CJX7-9 | 16 | 100 | 26 | 9 | 9 | 7 | 2.2 | 4 | 5.5 |
| CJX7-12 | 16 | 100 | 28 | 12 | 12 | 9 | 3 | 5.5 | 7.5 |
| CJX7-16 | 16 | 100 | 30 | 17 | 17 | 10 | 4 | 7.5 | 9 |
| CJX7-26 | 26 | 100 | 45 | 26 | 26 | 17 | 6.5 | 11 | 15 |
| CJX7-30 | 40 | 100 | 65 | 32 | 32 | 21 | 9 | 15 | 18.5 |
| CJX7-40 | 70 | 100 | 65 | 37 | 37 | 25 | 11 | 8.5 | 22 |
| CJX7-50 | 75 | 100 | 100 | 50 | 50 | 35 | 15 | 22 | 30 |
| CJX7-63 | 75 | 100 | 125 | 65 | 65 | 43 | 18.5 | 30 | 37 |
| CJX7-75 | 75 | 100 | 125 | 75 | 75 | 46 | 22 | 37 | 40 |
| CJX7-95 | 110 | 100 | 145 | 96 | 96 | 65 | 25 | 45 | 55 |
| CJX7-110 | 110 | 100 | 160 | 110 | 110 | 82 | 30 | 55 | 75 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
