LZZBJ9-10C MV CT
LZZBJ9-10C type current transformer is suitable for power systems with rated frequency of 50Hz or 60Hz and rated voltage of 10kV for energy measurement, current measurement and protection.
Installation location: indoors.
Ambient temperature: maximum temperature 40℃; minimum temperature -5℃; daily average temperature does not exceed 30℃.
Atmospheric conditions: There is no serious pollution in the atmosphere.

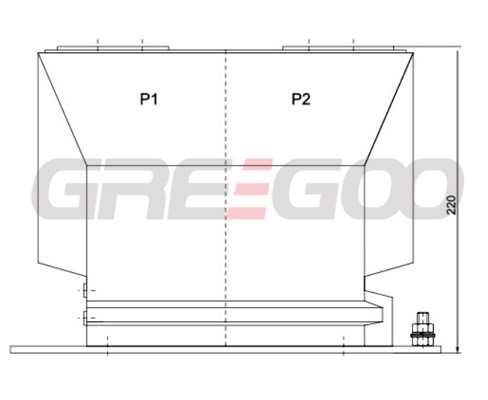

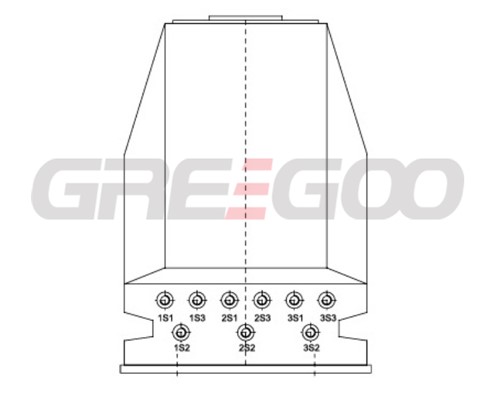

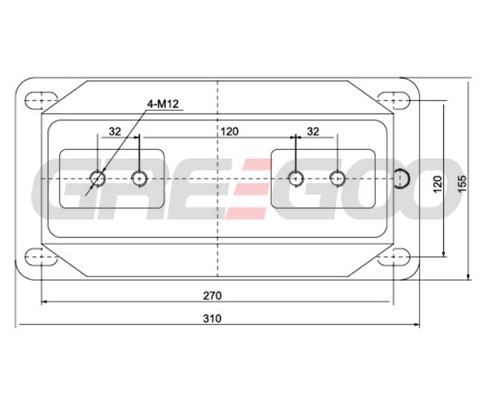

This type of current transformer is a fully enclosed structure cast by epoxy resin and has excellent insulation properties and moisture-proof capabilities. The product is compact, small in size, light in weight and easy to clean on the surface. The secondary outlet terminal is equipped with a terminal box, which is safe and reliable. There are grounding bolts and six mounting holes for installation on the bottom plate of the product.
| Model |
Rated
primary
current
|
Rated
secondary
current
|
Accuracy
class
|
Burden |
Short time
thermal
current
|
Dynamically
stable
current
|
Rated
insulation
level
|
| A | A | VA | kA/s | kA/s | KV | ||
| LZZBJ9-10C | 5 |
5A
1A
|
0.2/10P10
0.5/10P10
0.2/10P15
0.5/10P15
|
10/15
10/15
10/15
15/15
|
0.45 | 1 | 12/42/75 |
| 10 | 0.9 | 2 | |||||
| 15 | 1.35 | 3 | |||||
| 20 | 1.8 | 4 | |||||
| 30 | 2.7 | 6 | |||||
| 40 | 3.6 | 8 | |||||
| 50 | 4.5 | 10 | |||||
| 75 | 6.75 | 15 | |||||
| 100 | 9 | 20 | |||||
| 150 | 13.5 | 30 | |||||
| 200 | 18 | 40 | |||||
| 300 | 24.5 | 44 | |||||
| 400 | 24.5 | 44 | |||||
| 500 | 32 | 59 | |||||
| 600 | 32 | 59 | |||||
| 800 | 32 | 59 | |||||
| 1000 | 45 | 110 |
