LMZ(J)1-30 0.66KV Current Transformer
Home Products Low Voltage Current TransformerCast resin current transformerLMZ(J)1-30 0.66KV Current Transformer
1-30-0.66KV.jpg)

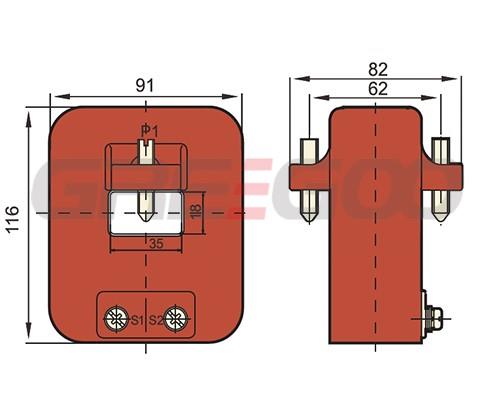

1-30-0.66KV-d.jpg)

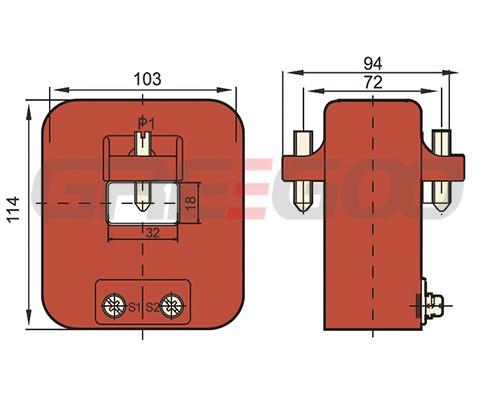

1-30-0.66KV-d2.jpg)
Product Details
LMZ(J)1-30 0.66KV Current Transformer
| Model | Ratio A | Burden VA | ||||
| Class 0.5 | Class 0.5s | Class 0.2 | Class 0.2s | Cross core turn number | ||
| LMZ(J)1-30 0.66KV | 100/5 | 2.5 | 2.5 | 2.5 | 2.5 | 1 |
| 150/5 | 5 | 5 | 5 | 5 | 1 | |
| 200/5 | 5 | 5 | 5 | 5 | 1 | |
| 250/5 | 5 | 5 | 5 | 5 | 1 | |
| 300/5 | 5 | 5 | 5 | 5 | 1 | |
| Model | Ratio A | Burden VA | ||||
| Class 0.5 | Class 0.5s | Class 0.2 | Class 0.2s | Cross core turn number | ||
| LMZ(J)1-30L 0.66KV | 100/5 | 5 | 5 | 5 | 5 | 1 |
| 150/5 | 5 | 5 | 5 | 5 | 1 | |
| 200/5 | 5 | 5 | 5 | 5 | 1 | |
| 250/5 | 5 | 5 | 5 | 5 | 1 | |
| 300/5 | 5 | 5 | 5 | 5 | 1 | |
