GBJ 8A to 35A single phase bridge rectifier
| MODEL | VRRM | IO | TC | IFSM | IR | IF | VF |
| V | A | ℃ | A | uA | A | V | |
| GBJ0806 | 600 | 8 | 100 | 180 | 5.0 | 4.0 | 1.0 |

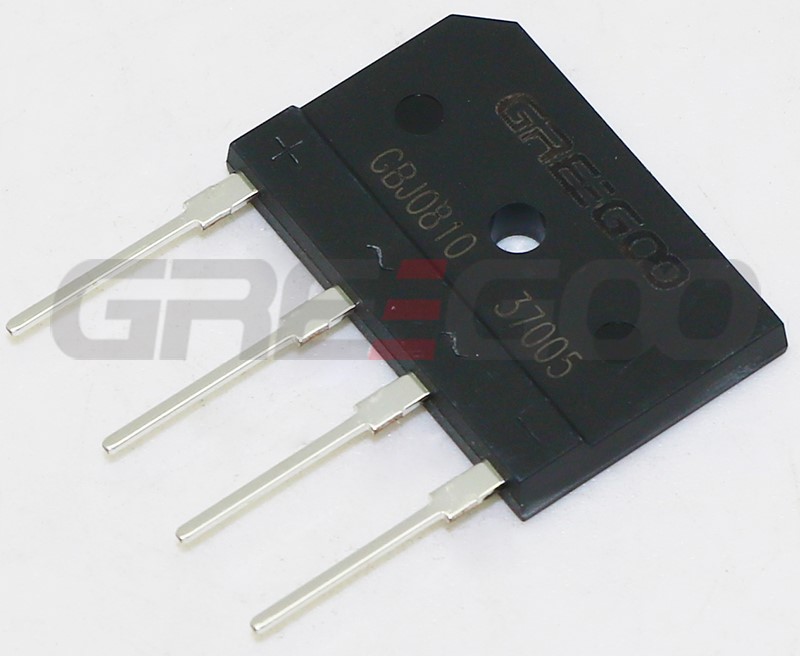

| GBJ0810 | 1000 | 8 | 100 | 180 | 5.0 | 4.0 | 1.0 |
| GBJ0812 | 1200 | 8 | 100 | 180 | 5.0 | 4.0 | 1.0 |
| GBJ1006 | 600 | 10 | 100 | 200 | 5.0 | 5.0 | 1.0 |

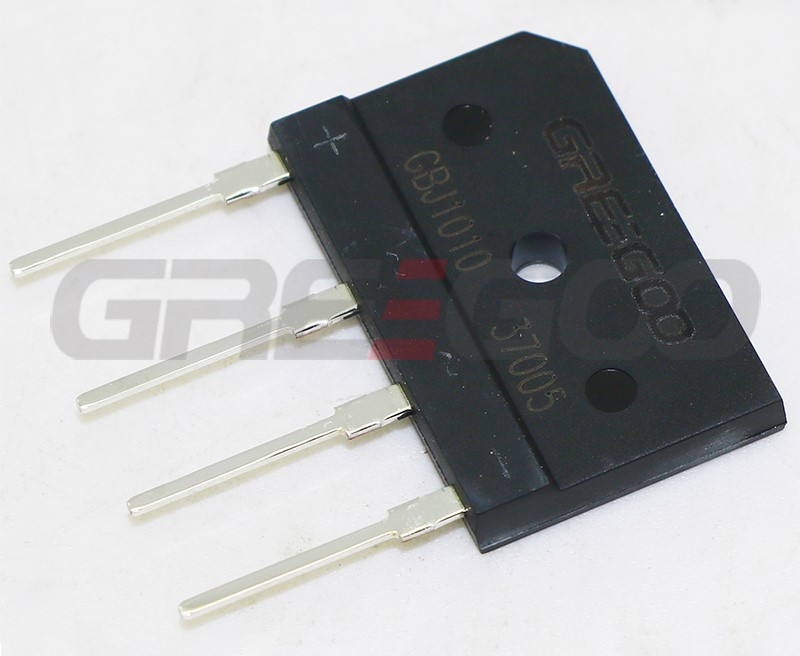

| GBJ1010 | 1000 | 10 | 100 | 200 | 5.0 | 5.0 | 1.0 |
| GBJ1012 | 1200 | 10 | 100 | 200 | 5.0 | 5.0 | 1.0 |
| GBJ1506 | 600 | 15 | 100 | 240 | 5.0 | 7.5 | 1.0 |
| GBJ1510 | 1000 | 15 | 100 | 240 | 5.0 | 7.5 | 1.0 |
| GBJ1512 | 1200 | 15 | 100 | 240 | 5.0 | 7.5 | 1.0 |
| GBJ2006 | 600 | 20 | 90 | 280 | 5.0 | 10.0 | 1.1 |
| GBJ2010 | 1000 | 20 | 90 | 280 | 5.0 | 10.0 | 1.1 |
| GBJ2012 | 1200 | 20 | 90 | 280 | 5.0 | 10.0 | 1.1 |
| GBJ2506 | 600 | 25 | 90 | 350 | 10.0 | 12.5 | 1.1 |

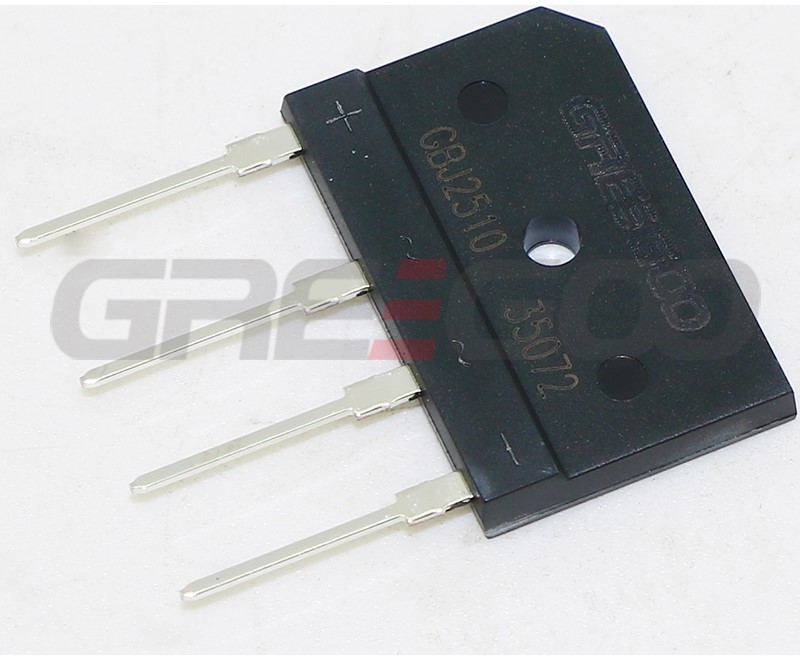

| GBJ2510 | 1000 | 25 | 90 | 350 | 10.0 | 12.5 | 1.1 |
| GBJ2512 | 1200 | 25 | 90 | 350 | 10.0 | 12.5 | 1.1 |
| GBJ3506 | 600 | 35 | 55 | 400 | 10.0 | 17.5 | 1.1 |

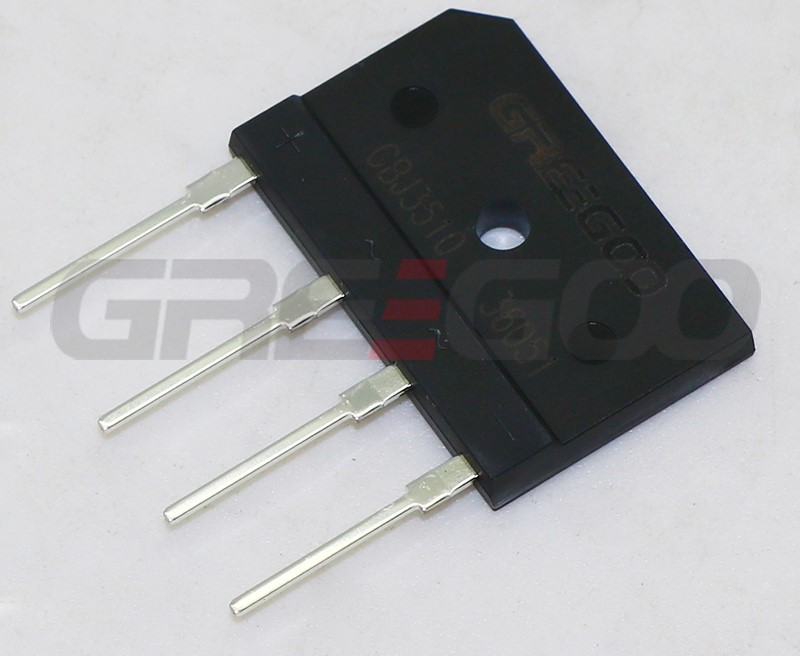

| GBJ3510 | 1000 | 35 | 55 | 400 | 10.0 | 17.5 | 1.1 |
| GBJ3512 | 1200 | 35 | 55 | 400 | 10.0 | 17.5 | 1.1 |
