FRED modules
Home Products IGBT Power ModuleFast Recovery Diode ModulesFRED modules
Product Details

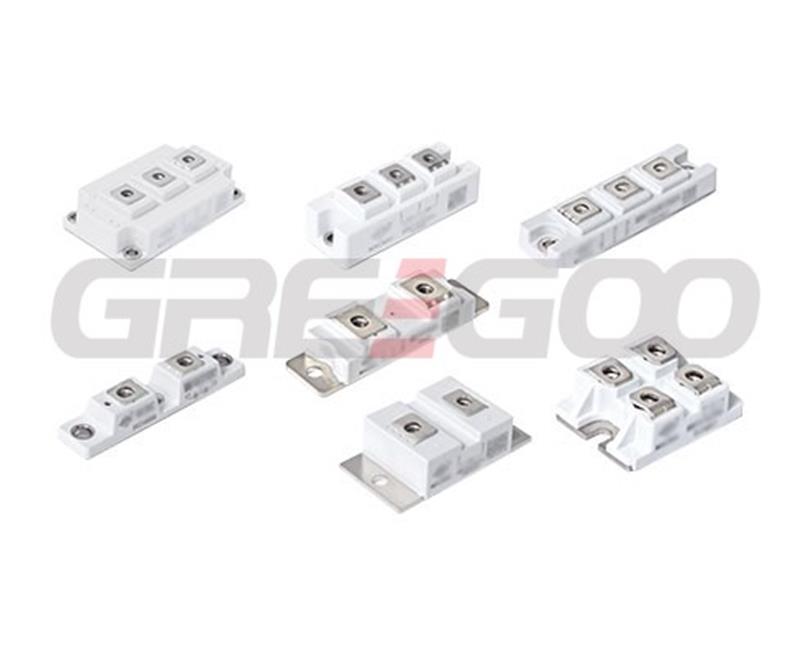

FRED modules
| Part | Vrrm | If(av) | Ifsm | Vf @ If Tj=125℃ | Trr | Rθjc | Inside | Package | |
| Number | Duty=0.5 | t=10ms | Tj=25℃ | Circuit | Dimensions | ||||
| Tc=110℃ | Tj=45℃ | ||||||||
| (V) | (A) | (A) | (V) | (A) | (ns) | ( ℃/W) | (MM) | ||

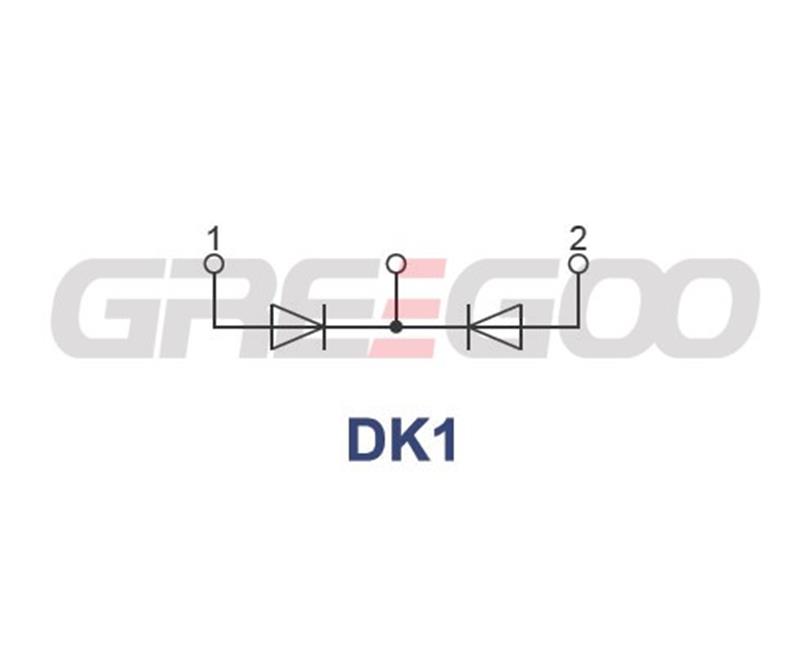

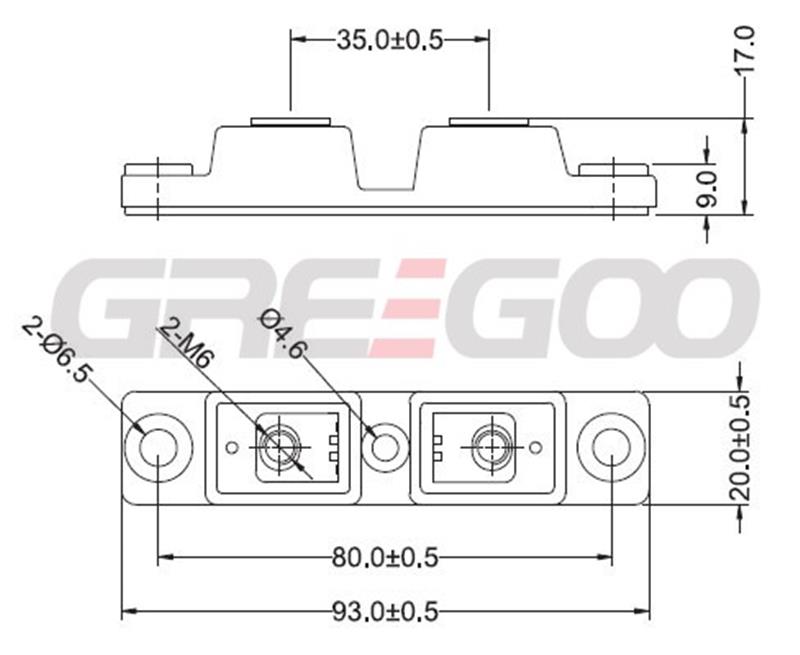

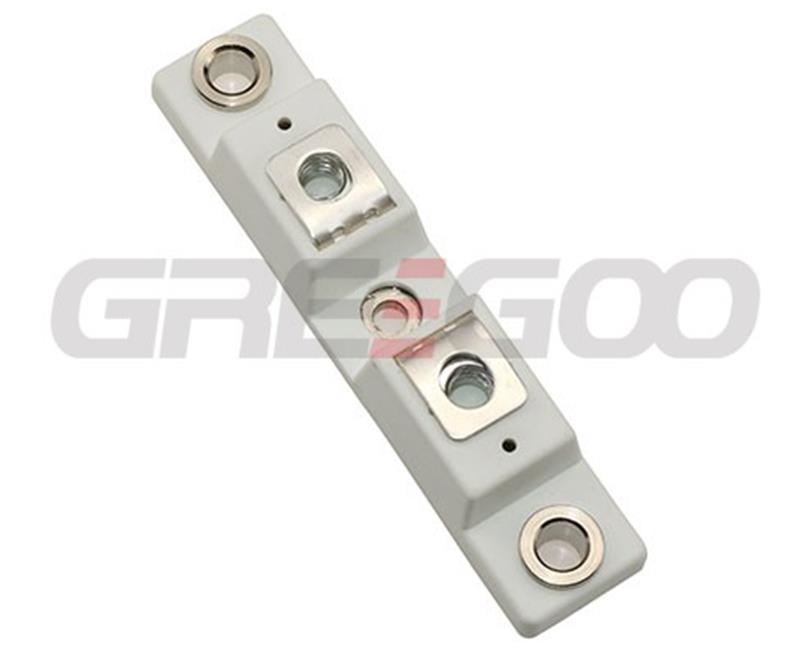

| GF400Z020DK1 | 200 | 2X200 | 1800 | 0.95 | 200 | 90 | 0.2 | DK1 | 93X20X17 |
| GF200ZB040DK1 | 400 | 2X100 | 1250 | 1 | 100 | 70 | 0.2 | DK1 | 93X20X17 |
| GF200ZB060DK1 | 600 | 2X100 | 1500 | 1.15 | 100 | 105 | 0.2 | DK1 | 93X20X17 |
| GF200ZB040DK1B | 400 | 2X100 | 1350 | 1 | 100 | 85 | 0.21 | DK1 | 93X20X17 |
